Micrometer Reading Made Simple: A Step-by-Step Guide for Kuwait Technicians

To read a micrometer, add the whole-millimeter lines showing on the sleeve, plus 0.5mm if the half-millimeter line is visible, plus the thimble value in hundredths of a millimeter. The result is a measurement good to 0.01mm — and once the three-part method clicks, most people read one in a few seconds.

What Are the Parts of a Micrometer, and What Does Each One Do?

Before any reading makes sense, it helps to know which parts produce the number and which simply hold the tool together.

•           Frame — the C-shaped body that keeps the measuring faces rigidly aligned.

•           Anvil — the fixed measuring face that stays still while the spindle moves.

•           Spindle — the moving measuring face that closes against the workpiece.

•           Sleeve (barrel) — the stationary scale carrying the main millimeter and half-millimeter lines.

•           Thimble — the rotating collar with 50 graduations, each worth 0.01mm on a metric micrometer.

•           Ratchet stop — a clutch that slips at a set torque so every measurement uses the same closing force.

The sleeve and thimble are the only two parts you actually read; everything else exists to hold the part steady and apply consistent pressure.

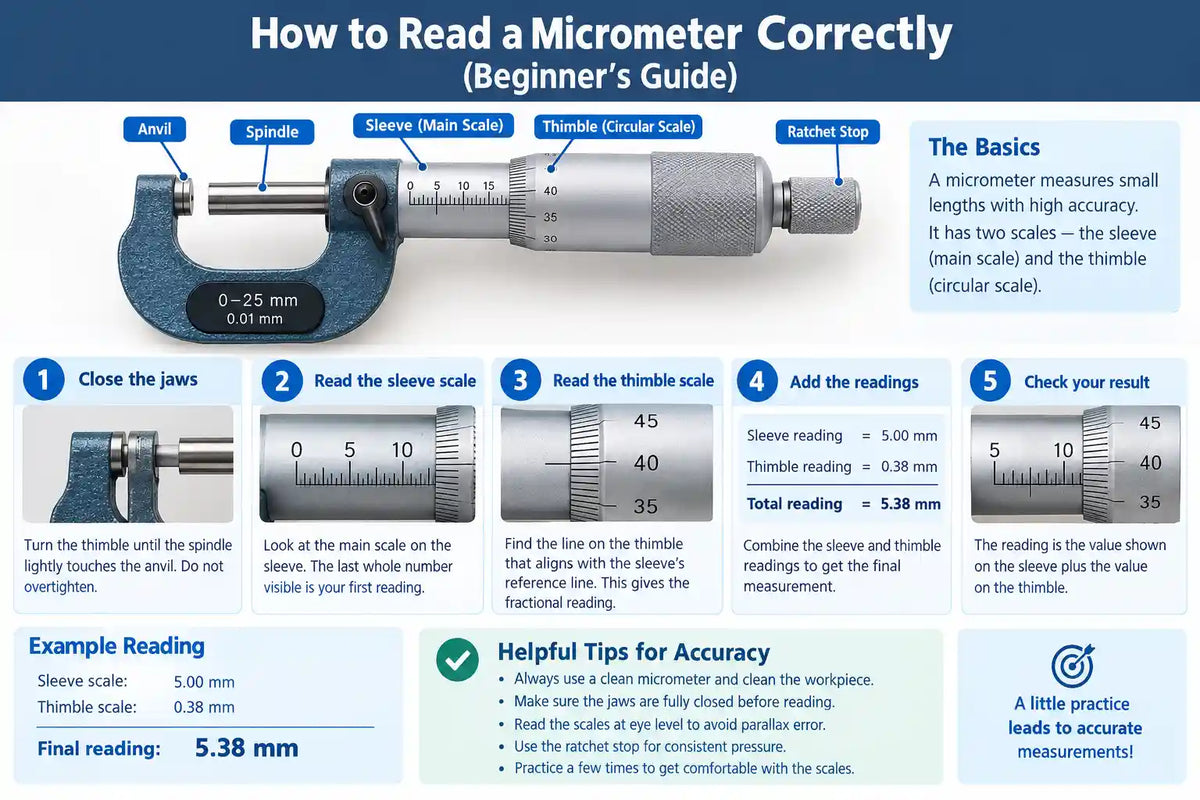

How Do You Read a Micrometer in mm?

Reading in millimeters is a simple addition of three numbers, always taken in the same order.

1.         Whole millimeters: read the last full millimeter line visible on the sleeve’s upper scale.

2.         Half millimeter: check whether the line on the lower side of the sleeve scale is also exposed; if so, add 0.5mm.

3.         Hundredths: read the thimble line that sits level with the sleeve’s long horizontal line, and multiply by 0.01mm.

4.         Total: whole millimeters + 0.5mm (if shown) + thimble reading.

Worked example: 7mm on the sleeve, half-millimeter line exposed, thimble at 34 gives 7 + 0.5 + 0.34 = 7.84mm.

How Do You Read a Micrometer in Inches?

An imperial micrometer works the same way but with different scale values, and most mistakes come from mixing the two systems up.

1.         Tenths of an inch: read the numbered sleeve divisions, each worth 0.100 inch.

2.         Fortieths: count the extra lines past the last numbered division; each one adds 0.025 inch.

3.         Thousandths: read the thimble line aligned with the sleeve’s reference line; each graduation is 0.001 inch.

4.         Total: add all three together.

Worked example: sleeve shows 2 (0.200), plus 3 extra lines (0.075), with the thimble at 11 (0.011), gives 0.200 + 0.075 + 0.011 = 0.286 inch.

A Quick Micrometer Scale Reading Guide to Keep Beside the Bench

Whatever unit system your micrometer uses, the reading routine stays the same.

•           Wipe the anvil and spindle faces and the workpiece before measuring.

•           Close the spindle on the part using the ratchet stop only, stopping at the first click or slip.

•           Read the sleeve first, then the thimble, in that order, every time.

•           Add the values, then repeat the measurement once to confirm it matches.

•           Record the result immediately rather than relying on memory.

How Do You Zero a Micrometer Before You Start?

A micrometer should read exactly zero with its faces closed, and checking this takes less than ten seconds.

1.         Clean both measuring faces with a lint-free cloth.

2.         Close the spindle using the ratchet stop until it slips.

3.         Look at whether the thimble zero lines up with the sleeve’s reference line.

4.         If it doesn’t, use the small C-spanner supplied with the micrometer to rotate the sleeve until the two lines coincide.

For micrometers above the 0–25mm range, zero against the supplied setting standard (a calibrated rod) rather than by closing the faces together.

Which Mistakes Do Beginners Make Most Often?

A short list of habits causes the large majority of wrong readings.

•           Ignoring the half-millimeter line, which shifts the answer by exactly 0.5mm.

•           Reading the wrong thimble line when two lines look nearly aligned with the reference.

•           Turning the thimble instead of the ratchet, which squeezes the part and lowers the reading.

•           Measuring a warm part, since a workpiece fresh off a machine in Kuwait’s heat expands slightly and reads larger than it will once cooled.

•           Skipping the zero check, which carries the same error into every reading afterward.

Digital vs Analog Micrometer Reading: Which Is Better for Beginners?

Digital micrometers show the answer on a display, while analog ones need the sleeve-and-thimble addition.

•           A digital model removes arithmetic errors and often switches between mm and inches at the press of a button.

•           Mitutoyo’s ABSOLUTE digital micrometers keep their zero position when switched off, so there’s no need to re-zero at every start-up.

•           An analog micrometer needs no battery and teaches the measuring principle, which is why many training programs start new technicians on analog tools.

For daily shop-floor work digital is faster; for building real understanding, learn on analog first.

How Accurate Is a Micrometer, and What Affects Its Precision?

A standard micrometer resolves 0.01mm, and a digital model can display 0.001mm, but resolution is not the same as accuracy.

•           A good mechanical micrometer typically holds accuracy within a few microns across its range.

•           Accuracy depends on clean faces, correct zeroing, consistent ratchet pressure, and measuring at a stable temperature.

•           Even the best micrometer drifts with use, so a 12-month calibration cycle is the usual industrial standard.

General Tech Services is the only authorised Mitutoyo distributor in the GCC and supplies genuine Mitutoyo micrometers in Kuwait, backed by calibration support from its Kuwait team.

FAQ: Reading a Micrometer

Q: Why does my micrometer give a different reading each time I measure the same part? Uneven closing pressure is the usual cause; use the ratchet stop every time so the force is identical.

Q: What is the smallest value a standard metric micrometer can show? 0.01mm on a standard analog micrometer; digital models commonly display 0.001mm.

Q: How do I read a micrometer if the thimble line falls between two marks? Read the closer line and, if you need extra precision, estimate the tenth of a division by eye; digital models avoid this by displaying the value directly.

Q: Do I need to zero a micrometer every time I use it? Check zero at the start of each session and after any drop or knock; a digital ABSOLUTE model holds its origin when powered down, but a check is still good practice.

Q: Is it harder to read a metric or an inch micrometer? Inch micrometers involve one extra step (the 0.025-inch sleeve lines), so most beginners find metric slightly quicker to learn.
