Sizing a VFD for Your Motor: A Practical Guide for Kuwait Plants
To size a variable frequency drive, choose a drive whose continuous output current is at least equal to the motor’s nameplate full-load amps, then derate for heat, switching frequency, and load type. Horsepower is only a shortcut; current is what the drive’s power stage actually carries, so it decides whether the drive survives.
What Is the First Step in a VFD Sizing Calculation?
The first step is reading the motor nameplate, because every other number in the calculation depends on it.
1. Full-load amps (FLA): the continuous current the motor draws at rated load.
2. Rated voltage: the drive’s output voltage class must match it (for example 380–415V three-phase).
3. Frequency and poles: a 50Hz, 4-pole motor runs near 1,500 rpm, which affects how the drive is programmed.
4. Service factor: a motor with a 1.15 service factor can carry short overloads the drive must also tolerate.
Write these four values down before opening any drive catalogue; a drive chosen first and checked later is how undersized installations happen.
How Do You Match a VFD to Motor Horsepower?
Matching a VFD to motor horsepower or kilowatts is a quick screening step, not the final decision.
• Drive catalogues list a “typical motor” rating, usually for a standard 4-pole induction motor at 400V.
• A high-efficiency IE3 motor, a 2-pole motor, or a motor running at a different voltage can draw a different current than that typical motor.
• Always confirm that the drive’s rated output current is at or above the motor’s FLA, even when the kW figures match.
Example: a 7.5kW, 4-pole motor from a range such as Leroy Somer LSES IE2 motors typically draws around 15A at 400V. A drive rated 7.5kW but only 14A output would trip on overcurrent under full load, while a 16A drive would not.
How Does VFD Sizing Differ for Pumps and Fans?
Pumps and fans are variable-torque loads, so they let you size more tightly than conveyors or compressors.
• In centrifugal pumps and fans, torque falls roughly with the square of speed and power with the cube, per the affinity laws.
• Starting torque demand is low, so a drive matched to the motor’s FLA usually has no need for extra overload capacity.
• Many drives offer a “normal duty” rating (about 110% for 60 seconds) that suits variable-torque loads and often allows a smaller frame than the “heavy duty” rating of the same drive.
• Constant-torque loads such as conveyors, crushers, and positive-displacement pumps need heavy-duty ratings (about 150% for 60 seconds), which means a larger drive for the same motor.
Always confirm which duty rating the catalogue current refers to, since the same drive carries a different current at each rating.
What Happens With an Oversized vs Undersized VFD?
The two sizing errors cost money in different ways, and neither is harmless.
• Undersized drive: runs hot, trips on overcurrent, and ages its capacitors and power modules faster than rated.
• Oversized drive: costs more, takes up more panel space, and measures motor current less accurately at light loads, which weakens motor protection.
• Right-sized drive: carries the motor’s FLA with a modest margin and still protects the motor accurately.
A margin of about 10% over FLA is a sensible allowance; a drive two or three frame sizes larger than needed is rarely deliberate, it usually reflects a sizing mistake.
Which VFD Derating Factors Matter in Kuwait?
Derating means using a drive below its nameplate current because conditions are harsher than the drive’s reference conditions.
• Ambient temperature: most drives are rated for about 40°C inside the enclosure, and summer ambient temperatures in Kuwait can exceed 45°C outdoors, so panels without cooling often run above that limit. Many manufacturers specify roughly 1–2.5% current derating per degree above rating.
• Switching frequency: raising the carrier frequency (to cut motor noise) increases heat in the drive, and the output current rating drops accordingly.
• Altitude: derating normally starts above about 1,000m, and Kuwait’s flat, near-sea-level terrain means altitude derating is usually not needed.
• Cable length: very long motor cables may need output filters or reduced switching frequency, which can add further derating.
In a Kuwait installation, temperature is the derating factor that most often catches people out, so check enclosure ventilation or air conditioning at the design stage.

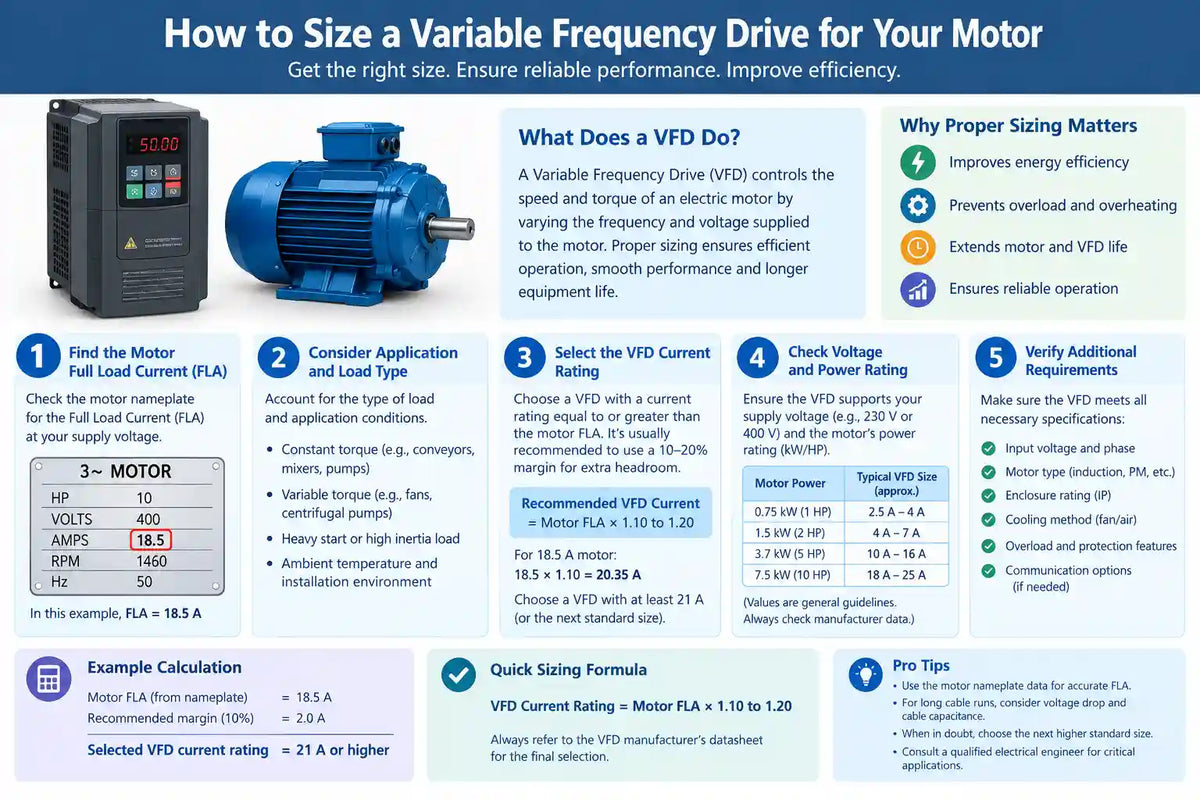

What Is a Step-by-Step VFD Sizing Checklist?
Following the same order each time keeps sizing mistakes out of the design.
1. Read FLA, voltage, frequency, poles, and service factor from the motor nameplate.
2. Classify the load: variable torque (pumps, fans) or constant torque (conveyors, compressors).
3. Choose the duty rating (normal or heavy) that matches the load class.
4. Select a drive whose rated output current at that duty rating is at least FLA plus about 10%.
5. Apply temperature and switching-frequency derating for the actual panel conditions.
6. Verify that the derated current still exceeds the motor FLA.
7. Confirm input voltage, braking needs, and control type before ordering.
Why Does Correct VFD Sizing Matter for Plant Reliability?
Most “faulty drive” complaints trace back to sizing or installation conditions, not defective hardware.
• A drive that nuisance-trips in July but runs fine in January usually points to panel temperature rather than a faulty unit.
• Correct sizing also keeps the motor protected, since drives estimate motor load from current.
• General Tech Services supplies motors and VFDs from its Kuwait office in Ahmadi and supports drive selection with more than 25 years of engineering experience across the GCC.
FAQ: Sizing a Variable Frequency Drive
Q: Can I size a VFD by kilowatts alone? It works as a first screen, but always compare the drive’s rated output current with the motor’s nameplate FLA before ordering.
Q: Do pumps need a bigger VFD than conveyors? No; conveyors and other constant-torque loads usually need the larger drive, because they require heavy-duty overload capability that pumps do not.
Q: How much extra capacity should I add to a VFD? About 10% above the motor’s FLA is typical, and anything beyond one frame size up should have a specific reason behind it.
Q: Does Kuwait’s heat really affect VFD sizing? Yes. Drives rated for about 40°C lose output current above that temperature, so an uncooled panel in summer can force a larger drive or better ventilation.
Q: Do I need altitude derating in Kuwait? Generally no, since altitude derating applies above roughly 1,000m and Kuwait is close to sea level.
