How an Ultrasonic Thickness Gauge Works: Spotting Corrosion and Wear in Kuwait

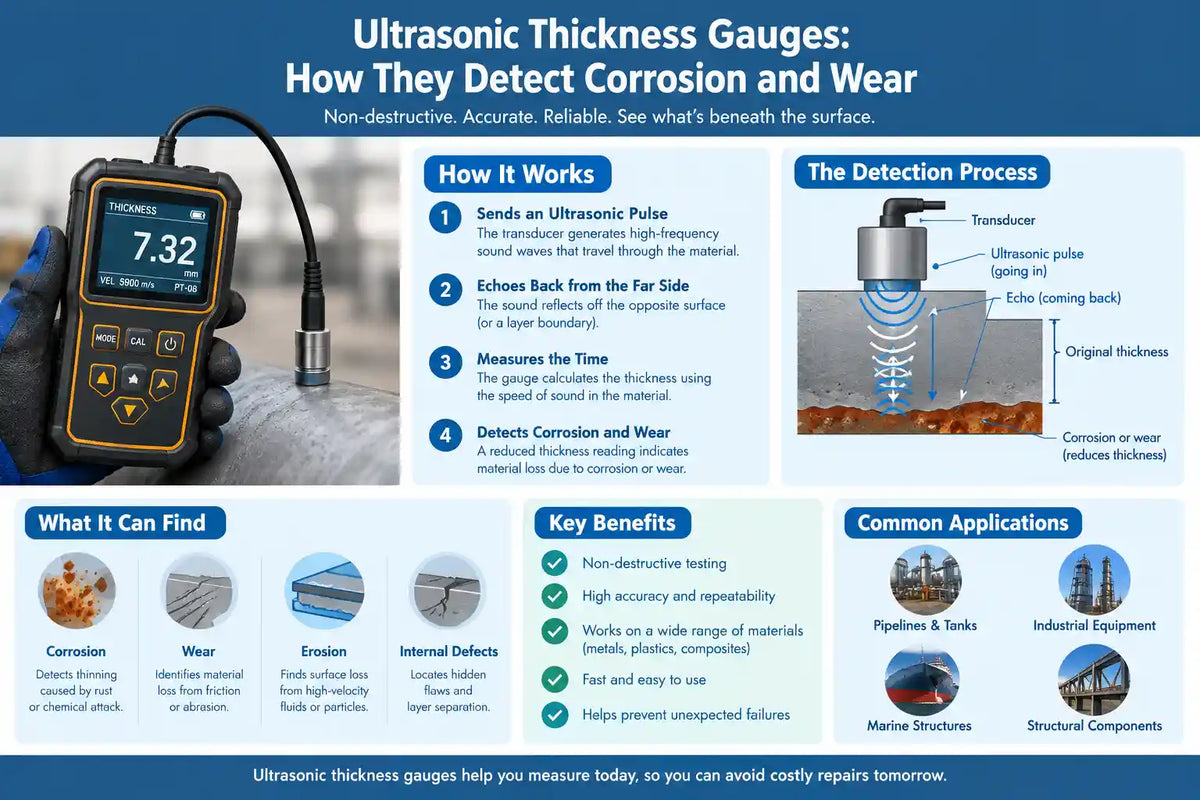

An ultrasonic thickness gauge works by sending a short sound pulse into a material, timing the echo from the back wall, and converting that time into thickness using the material’s sound velocity. Because it needs access to one side only, it can measure the wall of a pipe or tank in service, and repeating the reading over time shows how fast the metal is thinning.
How Does an Ultrasonic Thickness Gauge Work, Step by Step?
The gauge measures time, then does one simple calculation: thickness equals velocity multiplied by time, divided by two.
1. A probe pressed against the surface sends an ultrasonic pulse, typically at about 5 MHz, through a film of couplant gel.
2. The pulse crosses the material and reflects off the opposite surface, or off a flaw on the way.
3. The gauge measures the round-trip time of the echo, which is only a few millionths of a second.
4. It divides by two (the sound travelled there and back) and multiplies by the stored sound velocity.
Worked example: in steel, sound travels at roughly 5,900 m/s. An echo that returns after 3.38 microseconds means a wall about 10mm thick.
That example shows why setup matters: the gauge assumes a velocity, so selecting the wrong material setting gives a wrong thickness even though the timing was perfect.
How Does an Ultrasonic Thickness Gauge Detect Corrosion and Wear?
It detects corrosion as a gradual fall in wall thickness measured at the same spot over successive surveys.
• Baseline reading: record the thickness when the equipment is new or first surveyed.
• Repeat readings: measure the same marked points at fixed intervals, such as every 6 or 12 months.
• Corrosion rate: divide the loss by the time between readings. A wall that drops from 12.0mm to 11.4mm in two years is corroding at 0.3 mm per year.
• Remaining life: divide the thickness above the minimum allowable wall by that rate to estimate how long the item can safely stay in service.
The same method catches wear from erosion, for example inside pipe bends where fast-moving fluid scours the metal.
What Does an Ultrasonic Thickness Gauge for Corrosion Inspection Need?
A gauge for corrosion inspection needs more than a basic thickness readout, because corroded steel is rough, pitted, and often coated.
• Dual-element probes, with separate transmit and receive crystals, give steadier readings on pitted surfaces than single-element probes.
• Adjustable sound velocity lets the gauge be set for steel, stainless steel, aluminium, or plastics.
• Data logging records readings against locations. The REED R7900, for example, stores up to 500 measurements and has user-set high and low alarms.
• Corrosion-specific models, such as the DMQ range, cover about 0.6 to 500mm and add logging and multi-echo options for coated surfaces.
Multi-echo measurement is useful on painted steel, since it reads the metal wall without needing the coating removed.
What Is the Procedure for Ultrasonic Thickness Testing on Pipes?
Testing pipes means measuring a fixed grid of points rather than one random spot, so results can be compared from survey to survey.
1. Mark thickness-monitoring locations along the pipe, especially at elbows, tees, reducers, and downstream of valves.
2. Clean each spot of loose scale and flaking paint, leaving a smooth contact area about the size of the probe.
3. Apply couplant, press the probe flat, and wait for a stable reading.
4. Take readings around the circumference at each location and record the lowest value.
5. Repeat on a schedule and compare each result with the baseline.
Take the lowest reading at each location, since local pitting, not the average wall, is what usually leads to a leak.
How Accurate Is an Ultrasonic Thickness Gauge?
Typical industrial gauges resolve 0.01mm and are accurate to roughly ±0.05mm on suitable materials, though real-world accuracy depends on the conditions of the test.
• Velocity setting: the most common source of error is an incorrect or uncalibrated sound velocity.
• Surface condition: heavy pitting or rough scale scatters the pulse and lowers repeatability.
• Temperature: sound velocity changes with temperature, and surfaces hot enough to damage a standard probe need a high-temperature probe.
• Calibration block: checking the gauge on a block of known thickness before each session catches drift early.
A tighter reading on the display does not mean a more accurate result; proper velocity calibration matters more than extra decimal places.
Ultrasonic Thickness Gauge vs Caliper: When Does Each One Fit?
Use a caliper or micrometer when you can reach both sides of the part, and an ultrasonic gauge when you can reach only one.
• Caliper or micrometer: direct contact on both faces, fast and accurate on removable or accessible parts, but impossible on a closed pipe or tank wall.
• Ultrasonic gauge: one-sided and non-destructive, so it measures installed equipment without cutting or draining it.
• Coatings: a caliper measures metal plus paint, whereas a multi-echo ultrasonic gauge can read the metal alone.
For in-service pipes, vessels, and tanks, only the ultrasonic method works without shutting the equipment down.
Why Do Kuwait’s Oil and Gas and Industrial Sites Rely on Thickness Gauging?
Closed, high-value equipment cannot be inspected visually from the inside, so thickness readings are the practical way to prove it is still safe.
• Pipelines, separators, heat exchangers, and storage tanks lose wall thickness slowly and often out of sight.
• High temperatures and salt-laden coastal air in Kuwait can speed up external corrosion on exposed steel.
• Inspection records built from repeat readings support integrity programmes and fitness-for-service decisions.
Gauges such as the Dwyer UTG, which covers about 1.2 to 200mm, are also used to confirm pipe wall thickness before setting up clamp-on ultrasonic flow transmitters.
What Calibration Schedule Suits an Ultrasonic Thickness Gauge?
Check against a calibration block at the start of every inspection session, and have the instrument formally calibrated about once a year.
• The daily block check confirms velocity and zero are correct before any results are recorded.
• A traceable annual calibration, ideally under ISO/IEC 17025, gives records that stand up in audits.
• Replace probes that show worn faces or unstable readings, since a damaged probe can mislead even a well-calibrated gauge.
General Tech Services supplies ultrasonic thickness and corrosion gauges in Kuwait from its office in Ahmadi, drawing on more than 25 years of engineering and calibration experience across the GCC.
