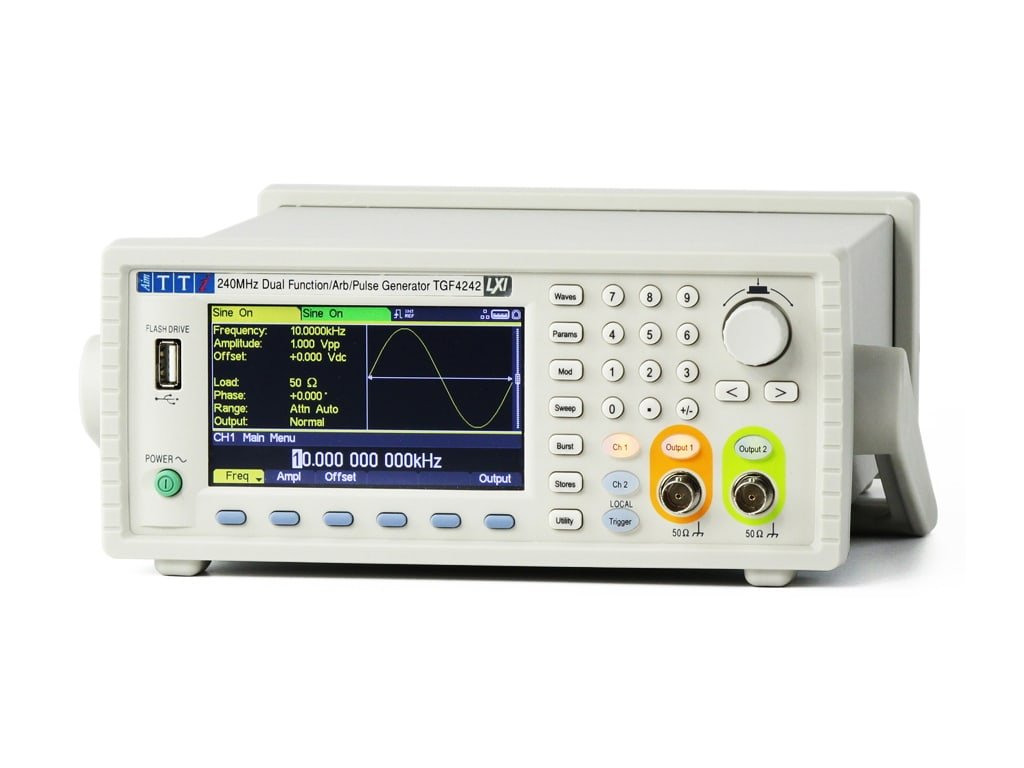

Aim-TTi TGF4242 | Dual Channel Arbitrary Function Generator | 240MHz

Name: Aim-TTi TGF4242 | Dual Channel Arbitrary Function Generator | 240MHz
Brand: Aim Tti
SKU: TGF4242
Availability: OutOfStock

Part Number : TGF4242

TGF4242 is the highest-bandwidth Aim-TTi TGF4000 model, generating signals up to 240MHz on two identical full-performance channels. Pulses up to 100MHz, wideband white noise, 800MS/s arbitrary waveforms and precise phase control suit advanced R&D and high-frequency test applications. PC software for arbitrary waveform editing is provided.

Key features

Two channels up to 240MHz
Pulses generated up to 100MHz
Arbitrary waveforms at 800MS/s, replay rates up to 80MHz
0.001° channel-to-channel phase resolution
Gated, burst and sweep with internal or external triggers
USB and LXI LAN; GPIB optional

Availability: in stock

Free Kuwait shipping available

Detailed Description
Specifications
Features
Downloads

Aim-TTi TGF4000 Series Performance Function, Arb, Pulse Generator

The TGF4000 series is the latest function/arbitrary generator series from Aim-TTi offering class-leading performance and unrivalled value for money.A frequency capability of up to 240MHz is combined with two identical full performance channels that can operate as independent generators or in coupled or tracking modes. Precise channel to channel phase control with a resolution of 0.0010 is provided.A wide range of built-in waveforms is included and custom arbitrary waveforms can be used at sample speeds up to 800MSa/s and replay rates up to 80MHz. PC based arbitrary waveform generation and editing software is provided.High resolution, low jitter pulses can be generated up to 100MHz as can wide bandwidth white noise. An extensive array of modulations is provided using internal and external sources. Gated, burst and sweep modes can use internal or external trigger sources.

Features and Benefits

0.001mHz to 240MHz (TGF4242), 160MHz (TGF4162) , 80MHz (TGF4082) or 40MHz (TGF4042) sine frequency range

High sine wave purity with low phase noise and jitter, audio band THD down to 0.05%

Resolution of up to 15 digits or 1Î¼Hz, high stability TCXO timebase

Inter-channel phase offset of -3600 to +3600 with 0.0010 resolution

1mHz to up to 100MHz Pulse generation with 100ps width resolution, <30ps jitter, and independently variable rise/fall times

Arbitrary waveforms of 14-bits / 400MSa/s (TGF4042 & TGF4082) or 16-bits / 800MSa/s (TGF4162 & TGF4242)

Waveform Manager Plus for Windows, editing software included

Comprehensive internal/external digital and analog modulation set including Sum* modulation

125MHz frequency counter/timer with five measurement modes

Programmable via USB and LAN (LXI) interfaces; GPIB optional

Part Number	TGF4242
Brand	Aim-TTi
Channels	2
Max Frequency	240 MHz
Pulse	Up to 100 MHz
Arbitrary Sample Rate	Up to 800 MS/s
Phase Resolution	0.001°
Interfaces	USB, LAN (LXI)
GPIB	Optional
