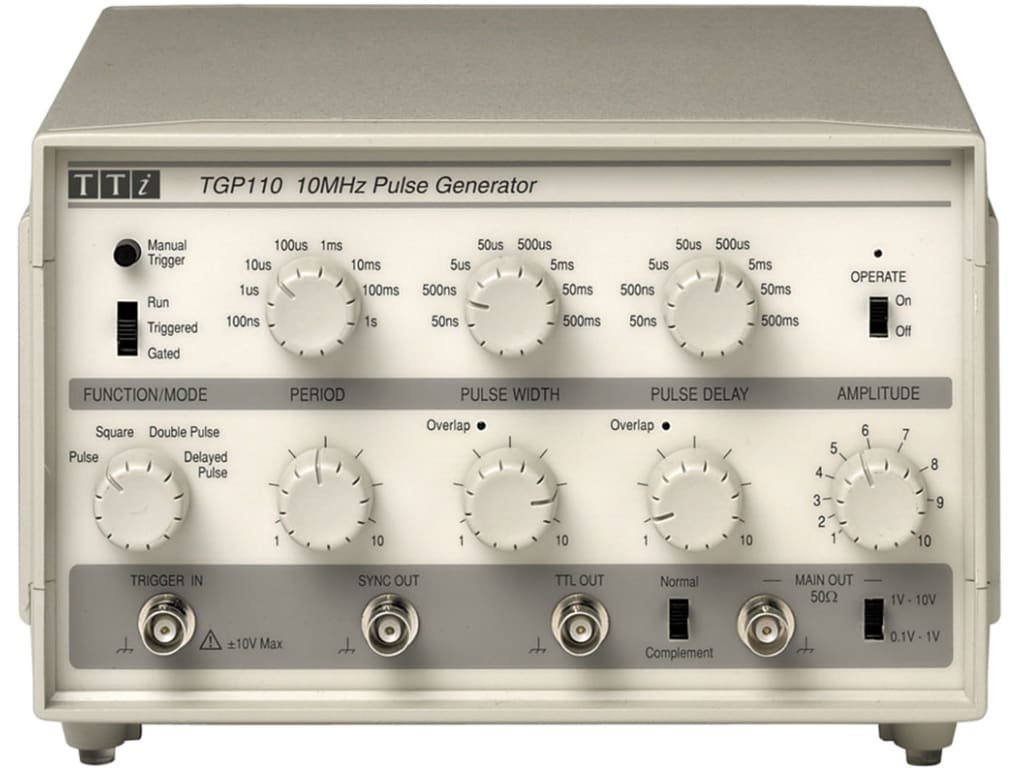

Aim-TTi TGP110 | Pulse Generator with Delay | 10MHz

Name: Aim-TTi TGP110 | Pulse Generator with Delay | 10MHz
Brand: Aim Tti
SKU: TGP110
Availability: OutOfStock

Part Number : TGP110

The Aim-TTi TGP110 is a 10MHz pulse generator with independent control of pulse frequency, width and delay. Square wave, double pulse and delayed pulse modes, plus free-run, gated and triggered operation, make it a straightforward tool for digital circuit testing, timing work and teaching labs.

Key features

0.1Hz to 10MHz frequency range
Independent frequency, width and delay control
50ns minimum pulse width
Square wave, double pulse and delayed pulse modes
Free-run, gated and triggered operation
50 Ohm output 0.1V to 10V; TTL/CMOS and sync outputs

Availability: in stock

Free Kuwait shipping available

Detailed Description
Specifications
Features
Downloads

Aim-TTi TGP110 Pulse Generator

The TGP110 is a dedicated pulse generator that operates in a quite different way from a function generator. It can generate pulses of a set width regardless of the repetition rate offering duty cycles which can extend down to 1 in 100 million. In addition to continuous operation, single or multiple pulses can be generated in response to trigger or gating signals with precisely defined timing relationships using the delay facility.

0.1Hz to 10MHz frequency range
50ns to 5s pulse width, independent of period
Fully variable pulse delay, 50ns to 5s
Square wave, double pulse and delayed pulses
Free-run, gated and triggered modes
Output variable 0.1V to 10V from 50Î©
Complement switch, TTL and sync outputs

Aim-TTi Pulse Generator, 10 kÎ© Input Impedance, 10 MHz Maximum Frequency - TGP110

This pulse generator by Aim-TTi is an essential instrument designed for generating pulses with precision and control in electronic systems. With adjustable output amplitude and a wide frequency range of 0.1Hz to 10MHz, this generator offers high-precision pulse generation capabilities. The device is equipped with various modes such as delayed, triggered, and gated, allowing for versatile pulse waveform generation. Additionally, the pulse generator features high accuracy and reliability, making it suitable for a range of applications in different industries.

Features & Benefits

â€¢ Adjustable output amplitude for precise control
â€¢ Wide frequency range from 0.1Hz to 10MHz
â€¢ Various pulse modes including delayed and triggered
â€¢ High precision pulse generation for accurate results
â€¢ European and British plug types for versatile connectivity

Applications

â€¢ For precise timing control in electronic systems
â€¢ Used for generating trigger pulses with defined timing relationships
â€¢ Ideal for creating pulses with specific widths and delays

Can it generate pulses with a minimum width of 50ns?

Yes, the pulse generator can generate pulses with a minimum width of 50ns.

Will it provide high-frequency accuracy for precise pulse generation?

Yes, the device offers high-frequency accuracy for accurate pulse generation.

Is it suitable for applications requiring adjustable output amplitude?

Yes, the generator is suited for applications that require adjustable output amplitudes.

Part Number	TGP110
Brand	Aim-TTi
Frequency Range	0.1 Hz to 10 MHz
Min Pulse Width	50 ns
Modes	Square, double pulse, delayed pulse
Triggering	Free-run, gated, triggered
Main Output	50 Ohm, 0.1 V to 10 V
Other Outputs	TTL/CMOS, Sync

Squarewave, double pulse & delayed pulse modes
Free-run, gated and triggered modes
50 Ohm output: 0.1V to 10V amplitude
TTL/CMOS and Sync outputs
Low-cost
TGP110 10MHz Pulse Generator
0.1Hz to 10MHz frequency range
Independent control of pulse frequency, width and delay
50ns minimum pulse width
