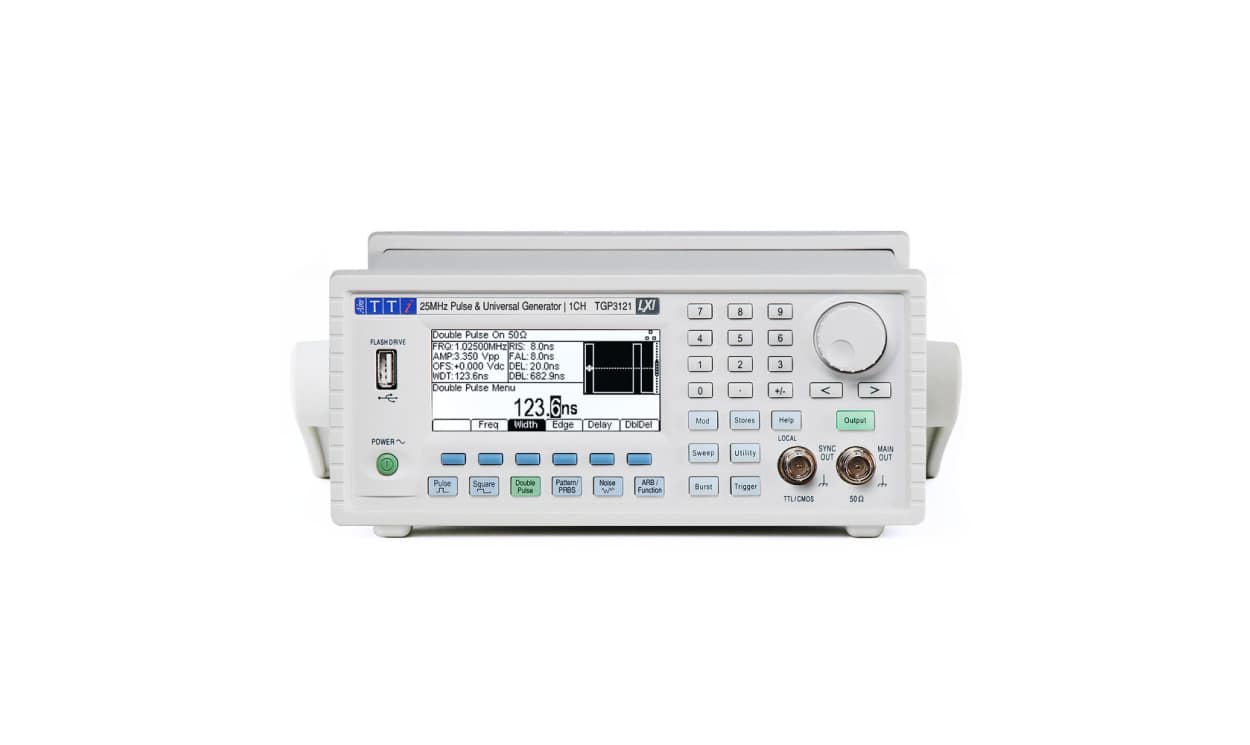

Aim-TTi TGP3121 | Pulse and Universal Generator | 25MHz, Single Channel

Name: Aim-TTi TGP3121 | Pulse and Universal Generator | 25MHz, Single Channel
Brand: Aim Tti
SKU: TGP3121
Availability: OutOfStock

Part Number : TGP3121

The Aim-TTi TGP3121 is a single-channel 25MHz true pulse generator built with all-digital techniques that also works as a noise generator and a function/arbitrary generator. Pulse, double pulse, pattern and PRBS waveforms with 8ns minimum rise time make it useful for digital design, timing and component testing.

Key features

Pulse waveforms from 1mHz to 25MHz
Minimum rise time 8ns; rise/fall variable to 800s
Period, width and delay resolution of 100ps or 11 digits
20V pk-pk into 50 Ohm (unmatched)
Noise generator to 25MHz; 800MS/s 16-bit arbitrary
USB, LXI LAN and USB flash drive; GPIB optional

Availability: in stock

Detailed Description
Specifications
Downloads

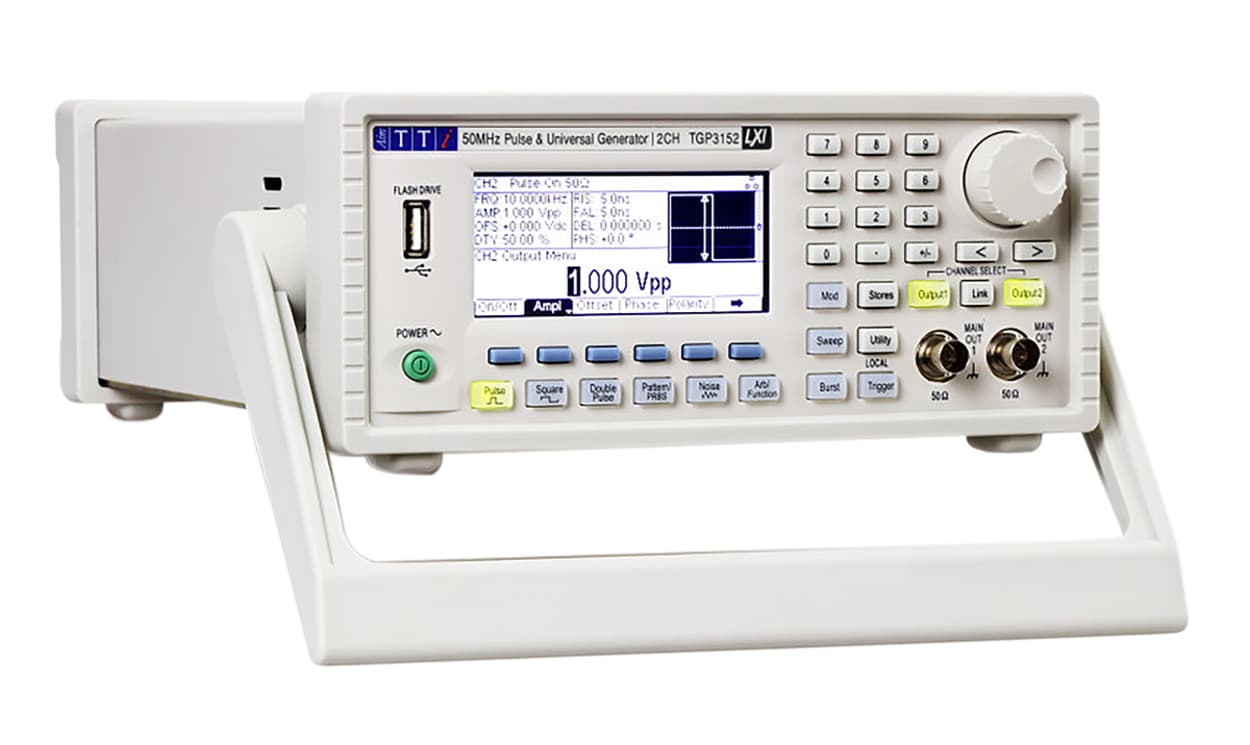

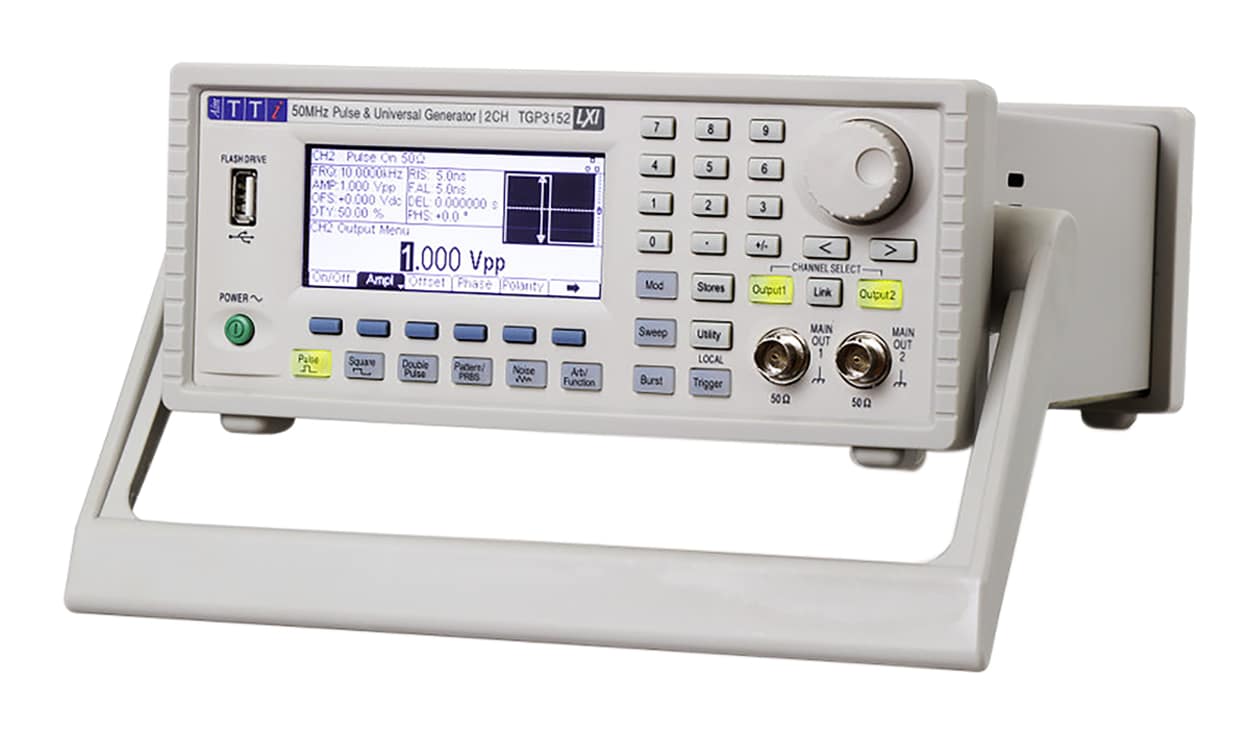

Aim-TTi TGP3100 Series Pulse & Universal Generators

Features and Benefits

Pulse waveforms from 1mHz to 50 MHz [25 MHz], minimum rise time 5 ns [8 ns]

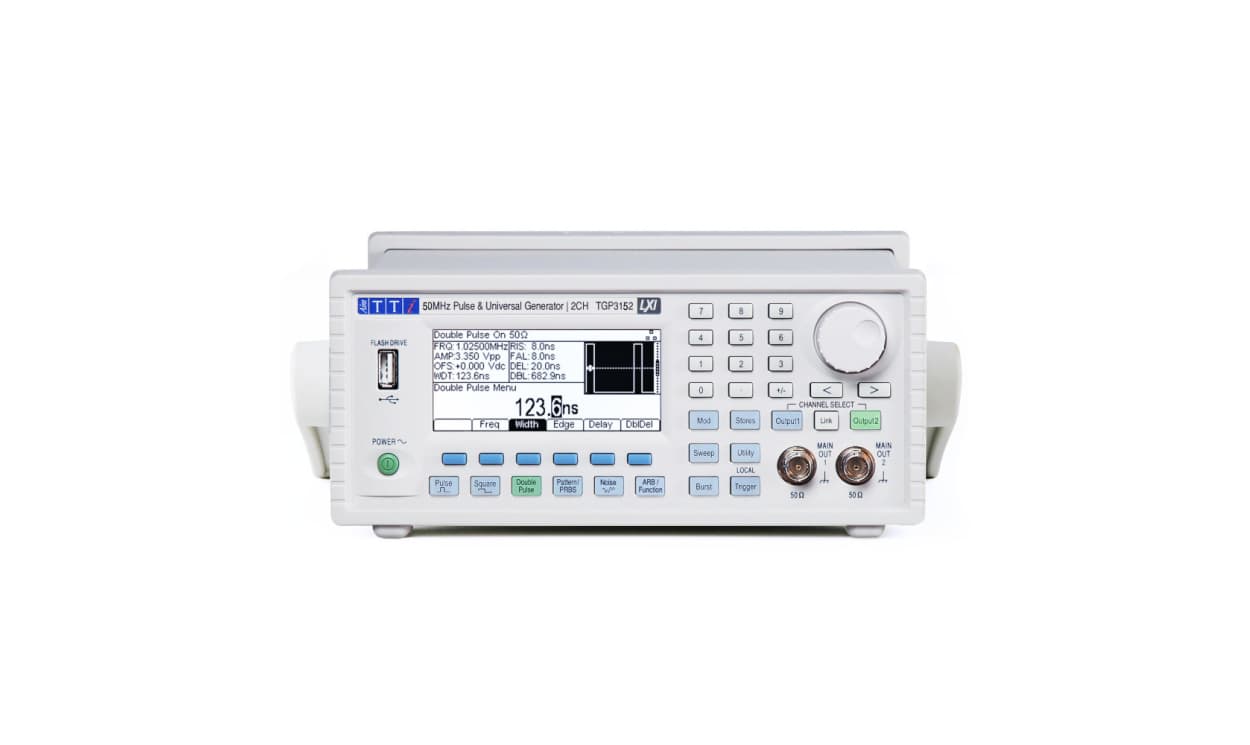

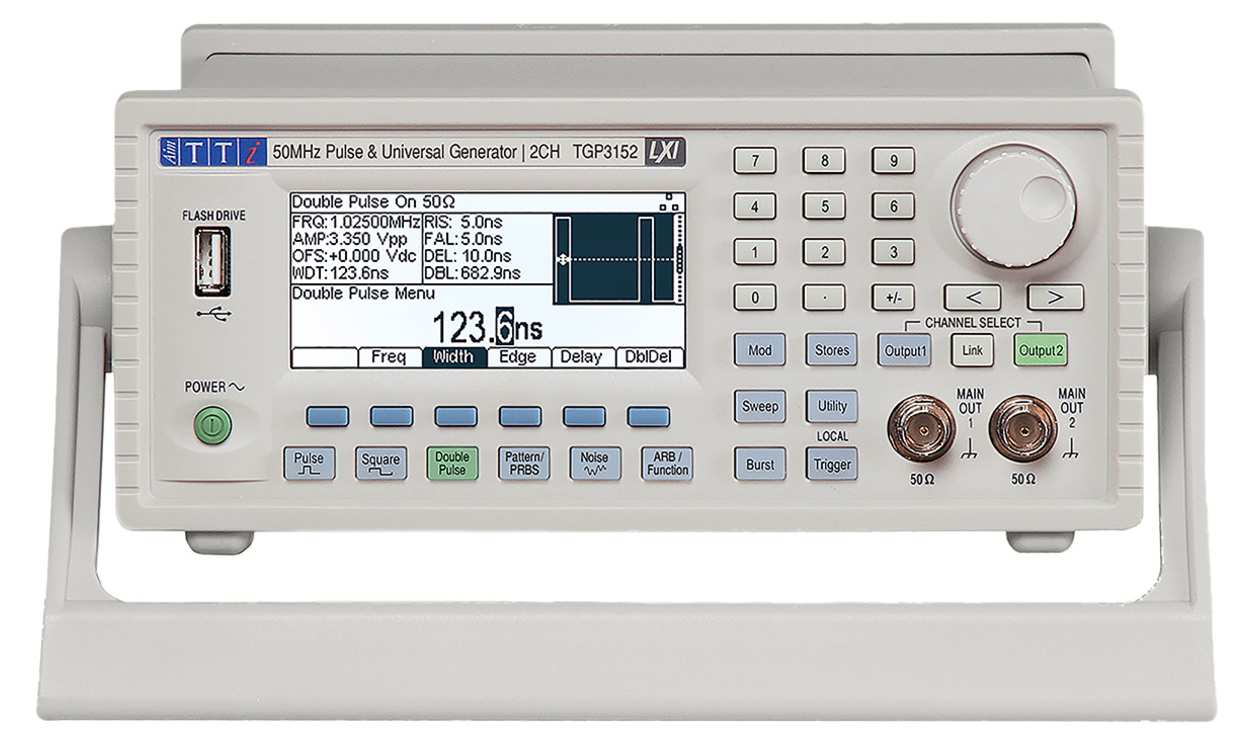

Pulse, double pulse, pulse pattern and PRBS waveforms
Pulse period, width and delay resolutions of 100 ps or 11 digits
Independently variable rise and fall times from 5 ns [8 ns] to 800 seconds
Low jitter asynchronous operation, externally triggered pulses or pulse reconstruction
High drive capability output can provide 20 V pk-pk into 50 Ω (unmatched)
Wide range of pulse modulations including AM.FM, PM, FSK, BPSK, SUM, PWM, PDMusing internal or external modulation sources.
Triggered (burst count) or gated operation using internal or external trigger sources
Full Noise generator to 25 MHz with selectable crest factor and user-defined distribution
Full Arbitrary/Function generator with 16 waveform types
Sine waves up to 50 MHz [25 MHz]
Arbitrary waveforms at 800MS/s sampling rate and 16-bit vertical resolution
Extensive internal/external modulation of all waveform types

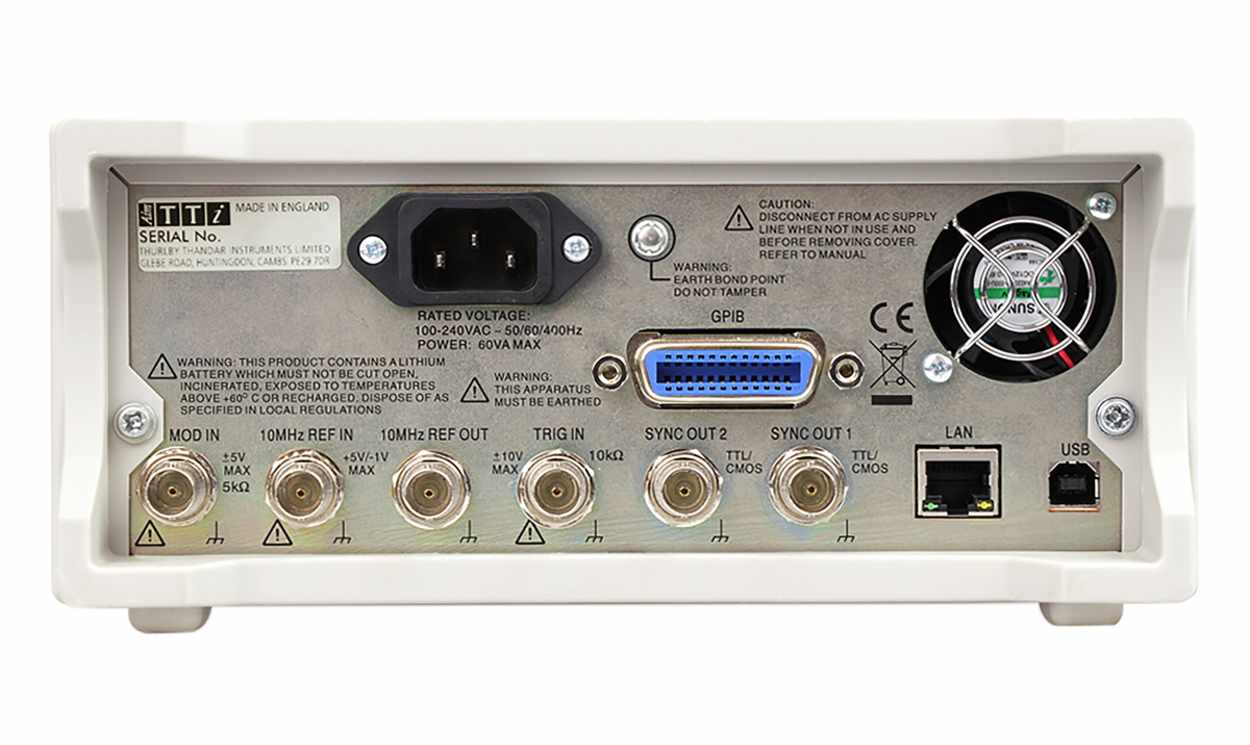

GPIB, USB and LXI-compliant LAN interfaces
256 x 112 pixel monochrome graphics
White LED backlight with adjustable brightness and contrast
Black-on-white or inverse modes
Up to 9 complete instrument set-ups can be stored and recalled from non-volatile memory
Front panel-mounted USB Flash drive interface
USB and LXI-compliant LAN interfaces
Dimensions 97 x 250 x 295 mm
Weight 3.2 kg

Note

Aim-TTi TGP3100 Series pulse generators use all-digital techniques. They can replicate the capabilities of traditional pulse generators while adding extra facilities such as pulse modulations. And operating as pulse generators, the instruments can act as high-performance noise generators and as function/arbitrary generators - making them truly universal function generators.

Standards

EN61010-1

Aim-TTi Pulse Generator, 10 kO Input Impedance, 1 Channel - 59120-5540

This multifunctional pulse generator by Aim-TTi offers precision and reliability in generating pulses of varying frequencies. With adjustable output amplitude and the ability to function in both benchtop and rack mount configurations, this pulse generator is suitable for a wide range of applications in industries such as automation and electronics.

Features & Benefits

• Adjustable output amplitude to cater to diverse requirements
• Compact dimensions suitable for both rack and benchtop mounting
• Wide frequency range, including double pulse and pulse modes
• Impressive features such as jitter control and asynchronous operation

Applications

• Stress testing designs with defined jitter and delays
• Simulation of clock frequency with glitch-free parameter changes
• Data sequencing for serial data testing
• Pulse signal conditioning for application in signal characterisation
• Testing of Op Amp slew rate and asymmetrical characteristics

Can it be used for stress testing designs requiring defined jitter?

Yes, it can be utilised for stress testing designs requiring defined jitter, offering precise control over timing parameters.

Does it support clock frequency simulation with glitch-free parameter changes?

Yes, it supports clock frequency simulation with glitch-free parameter changes, ensuring accurate and seamless adjustments.

Is it suitable for data sequencing patterns in serial data testing?

Yes, it is suitable for generating data sequencing patterns in serial data testing, providing flexibility and control over signal timing.

How can it be used in Op Amp slew rate and asymmetrical characteristic testing?

The pulse generator can be used to create specific pulse waveforms to test Op Amp slew rate and asymmetrical characteristics, facilitating accurate performance evaluation.

What kind of pulse signal conditioning tasks can this generator perform?

The generator can perform various pulse signal conditioning tasks, including pulse shaping, amplitude modulation, and pulse width modulation, offering versatility in signal generation and manipulation.

Part Number	TGP3121
Brand	Aim-TTi
Channels	1
Pulse Frequency	1 mHz to 25 MHz
Min Rise Time	8 ns
Timing Resolution	100 ps or 11 digits
Output	20 V pk-pk into 50 Ohm (unmatched)
Arbitrary	800 MS/s, 16-bit
Interfaces	USB, LAN (LXI)
GPIB	Optional
