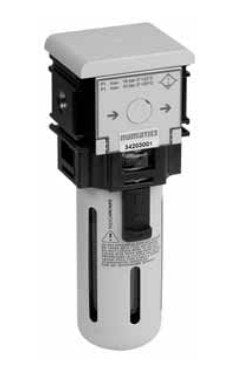

ASCO 34204012 | Series 342 Pneumatic Filter

The ASCO 34204012 is a Series 342 particulate pneumatic filter with 25μm filtration, a G 1/4 port connection, and a semi-automatic drain. It is rated for a maximum operating pressure of 16 bar, with a maximum flow rate of 1800 L/min. Genuine ASCO stock is available from General Tech Services LLC, Kuwait.

For pricing and current stock availability, call +965 9807 4888.

Part Number: 34204012

Product Description

The ASCO 34204012 is a Series 342 particulate filter designed to remove solid and liquid particles, including water droplets, from compressed air or inert gas systems. It combines a sintered polyethylene filtration element with a centrifugal separator for effective air treatment.

This model features 25μm filtration, a G 1/4 threaded port connection, and a semi-automatic drain for condensate removal. It supports a maximum flow rate of 1800 L/min and an operating pressure range of 1.2 bar to 16 bar.

The filter has a polycarbonate bowl and threaded ports suitable for individual or modular mounting. It is intended for air treatment applications involving humidity, temperature, ventilation, and air quality management in industrial pneumatic processes. The Series 342 range supports air purity classification in accordance with ISO 8573-1:2010.

Key Benefits

• 25μm filtration using a sintered polyethylene element
• Centrifugal separator for particulate and water droplet separation
• G 1/4 threaded port connection
• Semi-automatic drain for condensate removal
• Maximum flow rate of 1800 L/min
• Maximum operating pressure of 16 bar
• Operating pressure range of 1.2 to 16 bar
• Polycarbonate bowl construction
• Suitable for individual or modular mounting
• Supports ISO 8573-1:2010 air purity requirements
• Genuine ASCO part with stock held in Kuwait

Who This Product Is Best For

• Plants using Series 342 filtration for compressed air systems
• Maintenance teams replacing an existing ASCO filter with a genuine part
• Industrial pneumatic systems requiring 25μm particulate filtration
• Facilities requiring condensate removal from compressed air lines
• Applications requiring individual or modular pneumatic filtration

How to Specify & Install It

1. Confirm the connection: Verify that the G 1/4 port connection matches the pneumatic line and fittings.
2. Check operating pressure: Ensure the system operates within the specified 1.2 to 16 bar pressure range.
3. Verify flow requirements: Confirm that the maximum flow requirement does not exceed 1800 L/min.
4. Check operating temperature: Verify that the installation conditions are suitable for the specified temperature range of N/A to +50°C.
5. Install in the correct flow direction: Position the filter according to the required airflow direction and provide adequate bowl support.
6. Configure the drain: Ensure the semi-automatic drain is correctly installed and provides suitable condensate removal.
7. Commission the system: Inspect all connections and confirm proper filtration and condensate drainage before normal operation.

Frequently Asked Questions

What is the ASCO 34204012 used for?

It is a Series 342 particulate filter designed to remove solid and liquid particles, including water droplets, from compressed air or inert gas systems.

What filtration size does it provide?

The ASCO 34204012 provides 25μm filtration using a sintered polyethylene filtration element.

What is the maximum operating pressure?

The maximum operating pressure is 16 bar.

What is the operating pressure range?

The supplied specification lists an operating pressure range of 1.2 bar to 16 bar.

What is the maximum flow rate?

The maximum flow rate is 1800 L/min.

What type of drain does it use?

It uses a semi-automatic drain for condensate removal.

What is the port connection?

The filter has a G 1/4 threaded port connection.

What is the bowl material?

The bowl is made from polycarbonate.

Is genuine ASCO 34204012 stock available in Kuwait?

Yes. Genuine ASCO 34204012 stock is available from General Tech Services LLC, Kuwait.

For pricing and current stock availability, call +965 9807 4888.
