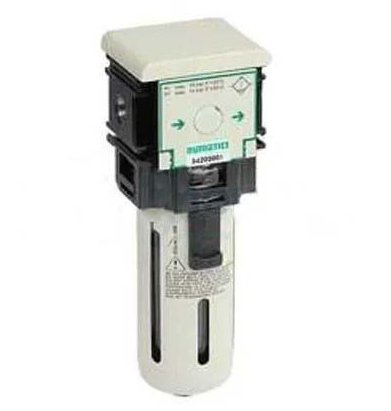

ASCO 34225213 | Filter | Semi Auto Drain | Series 342 | Port Connection G 1/8-inch
ASCO 34225213 | Series 342 Pneumatic Filter
The ASCO 34225213 is a Series 342 particulate pneumatic filter with 25μm filtration, a G 1/8 port connection, and a semi-automatic drain with an automatic drain option. It is rated for a maximum operating pressure of 12 bar at 23°C / 10 bar at 50°C, with a maximum flow rate of 890 l/min. Genuine ASCO stock is available from General Tech Services LLC, Kuwait.
For pricing and current stock availability, call +965 9807 4888.
Part Number: 34225213
Product Description
The ASCO 34225213 is designed for removing particulate matter and water droplets from compressed air or inert gas systems. As part of the Series 342 range, it combines a sintered polyethylene filtration element with a centrifugal separator to support effective filtration performance.
This model features 25μm filtration, a G 1/8 threaded port connection, and a polycarbonate bowl with a 28 cm³ capacity. Its semi-automatic drain provides condensate removal, with an automatic drain option available for the range.
The filter supports a maximum flow rate of 890 l/min and an operating temperature range of 0°C to +50°C. Threaded ports allow individual or modular mounting, while the Series 342 range supports air purity classification in accordance with ISO 8573-1:2010.
Key Benefits
- 25μm filtration using a sintered polyethylene element
- Centrifugal separator for particulate and water droplet separation
- G 1/8 threaded port connection
- Semi-automatic drain with automatic drain option
- Maximum flow rate of 890 l/min
- Maximum operating pressure of 12 bar at 23°C / 10 bar at 50°C
- Operating temperature range of 0°C to +50°C
- Polycarbonate bowl with 28 cm³ capacity
- Suitable for individual or modular mounting
- Supports ISO 8573-1:2010 air purity requirements
- Genuine ASCO part with stock held in Kuwait
Who This Product Is Best For
- Plants using Series 342 pneumatic filtration equipment
- Maintenance teams replacing an existing ASCO filter with a genuine part
- Compressed air and inert gas systems requiring 25μm particulate filtration
- Facilities requiring condensate removal from pneumatic air lines
- Applications requiring modular or individual filter installation
How to Specify & Install It
- Confirm the connection: Verify that the G 1/8 port connection matches the existing pneumatic line and fittings.
- Check pressure conditions: Ensure the system operates within the specified maximum pressure of 12 bar at 23°C / 10 bar at 50°C.
- Verify flow requirements: Confirm that the maximum flow rate of 890 l/min is suitable for the application.
- Install in the correct flow direction: Position the filter according to the required airflow direction and provide suitable support for the bowl.
- Configure the drain: Confirm whether the semi-automatic or automatic drain arrangement is appropriate for the condensate management requirements.
- Check operating temperature: Ensure the installation remains within the specified 0°C to +50°C temperature range.
- Commission the system: Check connections and condensate drainage before placing the pneumatic system into normal operation.
Frequently Asked Questions
What is the ASCO 34225213 used for?
It is a Series 342 particulate filter designed to remove particulate matter and water droplets from compressed air or inert gas systems.
What filtration size does it provide?
The ASCO 34225213 provides 25μm filtration using a sintered polyethylene element.
What is the maximum operating pressure?
The maximum operating pressure is 12 bar at 23°C / 10 bar at 50°C.
What is the maximum flow rate?
The maximum flow rate is 890 l/min.
What type of drain does it use?
It uses a semi-automatic drain, with an automatic drain option available.
What is the port connection?
The filter has a G 1/8 threaded port connection.
What is the operating temperature range?
The specified operating temperature range is 0°C to +50°C.
Is genuine ASCO 34225213 stock available in Kuwait?
Yes. Genuine ASCO 34225213 stock is available from General Tech Services LLC, Kuwait.
For pricing and current stock availability, call +965 9807 4888.
