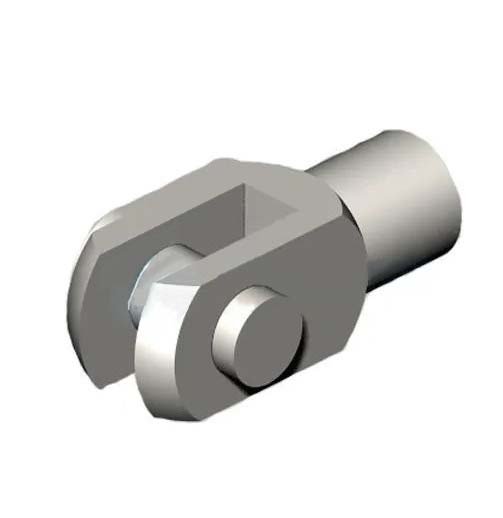

ASCO 43400016 | Female Rod Clevis | Isoclair Round Cylinder | Series 452 | Bore 32mm
ASCO 43400016 | Female Rod Clevis, Series 452 Isoclair Round Cylinder, 25 mm Bore
The ASCO 43400016 is a stainless steel female rod clevis designed for ASCO Series 452 Isoclair round cylinders with a 25 mm bore. It provides a secure connection between the cylinder piston rod and the driven system while supporting stable and reliable operation in pneumatic applications.
The clevis is designed for industrial use and is specified for an ambient temperature range of -20°C to +70°C and an operating pressure range of 2 to 10 bar. Genuine ASCO stock is available from General Tech Services LLC, Kuwait, with Kuwait-wide delivery.
For pricing and current stock availability, call +965 9807 4888.
Part Number: 43400016
Product Description
The ASCO 43400016 is a female rod clevis accessory for Series 452 Isoclair round pneumatic cylinders. It is manufactured from stainless steel, providing a durable mounting solution for connecting the cylinder rod to a driven mechanism or linkage.
The clevis provides a secure and stable rod-to-system connection while allowing the required pivoting movement between the cylinder and connected equipment. Its compact design supports straightforward integration and installation in pneumatic systems.
The accessory is specified for Series 452 Isoclair round cylinders with a 25 mm bore, with an ambient temperature range of -20°C to +70°C and an operating pressure range of 2 to 10 bar.
Key Benefits
- Stainless steel construction
- Designed for Series 452 Isoclair round cylinders
- Suitable for 25 mm bore cylinders
- Female rod clevis configuration
- Secure connection between cylinder rod and driven system
- Supports pivoting linkage movement
- Compact design for straightforward integration
- Ambient temperature range of -20°C to +70°C
- Operating pressure range of 2 to 10 bar
- Suitable for industrial pneumatic applications
- Genuine ASCO stock available in Kuwait
Who This Product Is Best For
- Maintenance teams fitting rod clevis accessories to Series 452 Isoclair cylinders
- Automation engineers requiring a stainless steel cylinder connection accessory
- Pneumatic system builders using Series 452 round cylinders
- Panel builders standardizing on genuine ASCO cylinder accessories
- Industrial applications requiring a secure rod-to-linkage connection
How to Specify & Install It
- Confirm cylinder compatibility: Verify that the cylinder is an ASCO Series 452 Isoclair round cylinder with a 25 mm bore.
- Check environmental conditions: Confirm that the application temperature remains within the specified -20°C to +70°C range.
- Check operating pressure: Ensure the pneumatic system operates within the specified 2 to 10 bar range.
- Attach the clevis: Securely fit the female rod clevis to the cylinder piston rod end.
- Connect the linkage: Attach the clevis to the driven mechanism or linkage and verify correct alignment.
- Check movement: Confirm that the connected assembly can pivot freely without binding or excessive side loading.
- Test before commissioning: Verify the connection and cylinder operation before placing the pneumatic system into service.
Frequently Asked Questions
What is the ASCO 43400016 clevis used for?
It is a stainless steel female rod clevis designed for Series 452 Isoclair round cylinders, providing a secure connection between the cylinder rod and driven system.
Which cylinder series does it fit?
It is designed for ASCO Series 452 Isoclair round cylinders.
What cylinder bore size is specified?
The 43400016 is specified for Series 452 cylinders with a 25 mm bore.
What material is it made from?
The clevis is manufactured from stainless steel.
What is the operating pressure range?
The specified operating pressure range is 2 to 10 bar.
What is the ambient temperature range?
The specified ambient temperature range is -20°C to +70°C.
Does the clevis allow pivoting movement?
Yes. The clevis connection supports the required pivoting movement between the cylinder rod and the connected linkage.
Is genuine ASCO stock available in Kuwait?
Yes. Genuine ASCO 43400016 stock is available from General Tech Services LLC, Kuwait.
How can I check pricing and current availability?
For pricing and current stock availability, call +965 9807 4888.
