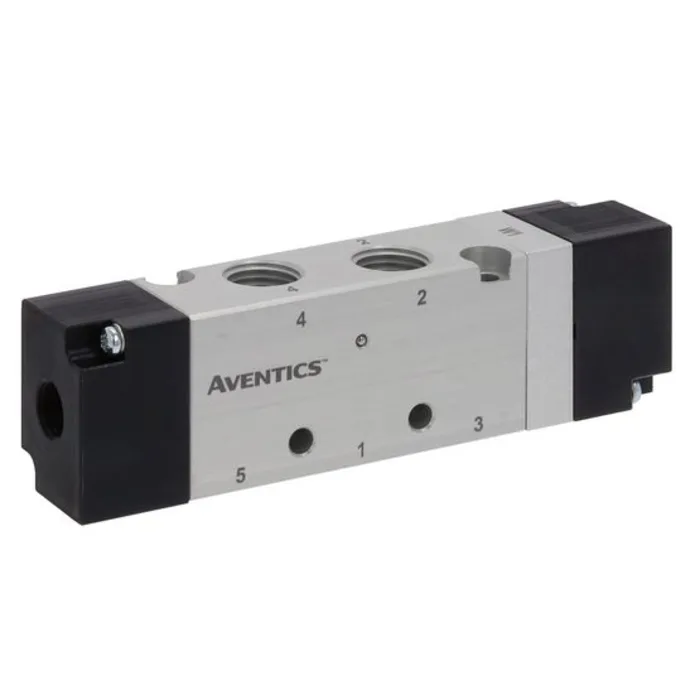

ASCO 52100078, 5/2 Pneumatic Solenoid Valve - Pilot/Pilot G 1/4 521 Series
Pneumatic cylinder piloting is best suited for the solenoid air-operated, mini-spool AVENTICS Series 521 valves. The valves have premium coils that are resistant to heat and moisture, making them appropriate for hard settings and high ambient temperatures. They can be installed for a variety of uses on joinable subbases. Applications for the AVENTICS Series 521 valves include tire production, automotive, case packing, and packaging.
- Detailed Description
- Specifications
- Features
- Downloads
519-520-521 series mini valves, assembly only or on manifold
| Brand | Asco |
| Function | 5/2 |
| Connection Port Thread | G 1/4 |
| Actuation Type | Pilot/Pilot |
| Manufacturer Series | 521 |
| Mounting Style | Manifold |
| Number of Ports | 5/2 |
| Body Material | Polyamide |
| Maximum Flow Rate | 1050L/min |
| Minimum Operating Pressure | 0bar |
| Maximum Operating Pressure | 8bar |
| Thread Size | 1/4in |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | +5°C |
| Thread Standard | G |
- G1/4-tapped, anodized aluminum body with NBR seals for longer service life.
- non-breathing design in which the solenoid valve exhaust is collected with the spring return chambers of the single- or double-acting actuator.
- manages neutral gas or lubricated or unslubricated air.
- 5°C to 50°C is the ambient temperature range.
- with all applicable EU directives.
