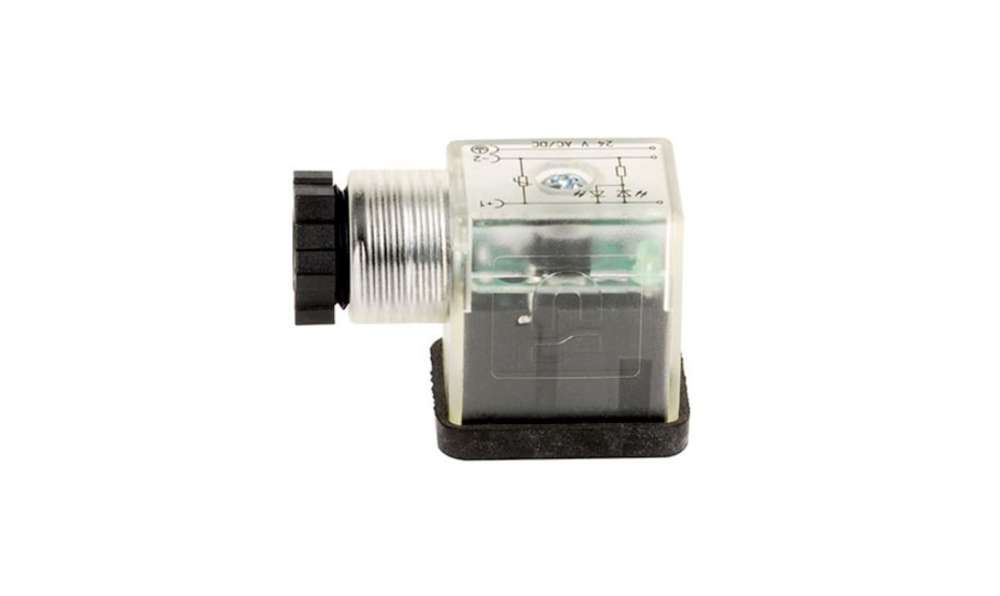

ASCO 88122405, 2P+E DIN 43650, Female DIN 43650 Solenoid Connector, 24 V Voltage
Part No. 88122405
The ASCO 88122405 DIN 43650 connector is a 2P+E female plug for 24 V solenoid coils, providing a secure electrical connection to compatible ASCO solenoid valves. Genuine ASCO part, supplied in the UAE by General Tech Services LLC. Pricing is quote-based. Request a quote in under a minute - call +971 6 543 6933.
The ASCO 88122405 is designed to replace damaged plugs or provide the correct electrical connection for compatible solenoid coils. It features a female DIN 43650 connection with a 2-pole plus earth (2P+E) layout and is rated for 24 V.
The connector uses an industry-standard DIN 43650 / EN 175301-803 form B interface. The ASCO range includes Size 22 (11 mm), with NBR seals and an operating temperature range of -40 °C to +80 °C with standard seals.
Using a matching connector helps maintain a secure connection between the electrical supply and solenoid coil while providing a practical replacement option for maintenance and installation work.
Ready to order the ASCO 88122405? Speak to our team. Call +971 6 543 6933
Key Benefits
-
Correct 2P+E female connector for 24 V solenoid coils
-
Industry-standard DIN 43650 interface
-
Sealed connection helps protect against moisture and dust
-
Wide operating temperature range of -40 °C to +80 °C
-
Quick replacement for damaged or missing plugs
-
Genuine ASCO part with local UAE support
Who This Product Is Best For
-
Electricians and maintenance teams servicing ASCO solenoid valves
-
Panel builders wiring 24 V solenoid coils
-
Industrial plants replacing damaged or missing coil plugs
-
OEMs standardising on DIN 43650 connections
How to Install & Use It
-
Isolate the electrical supply to the solenoid coil.
-
Connect the cable to the appropriate connector terminals.
-
Fit the gasket and press the connector onto the coil pins.
-
Tighten the fixing screw and test the valve after restoring the electrical supply.
Frequently Asked Questions
What voltage is the ASCO 88122405 for?
The ASCO 88122405 is rated for 24 V solenoid coils.
What does 2P+E mean?
2P+E means two power poles plus an earth contact, a standard layout used for DIN 43650 solenoid connectors.
Is the ASCO 88122405 male or female?
It is a female connector designed to plug onto the male pins of a compatible solenoid coil.
Should I choose 88122405 or 88122608?

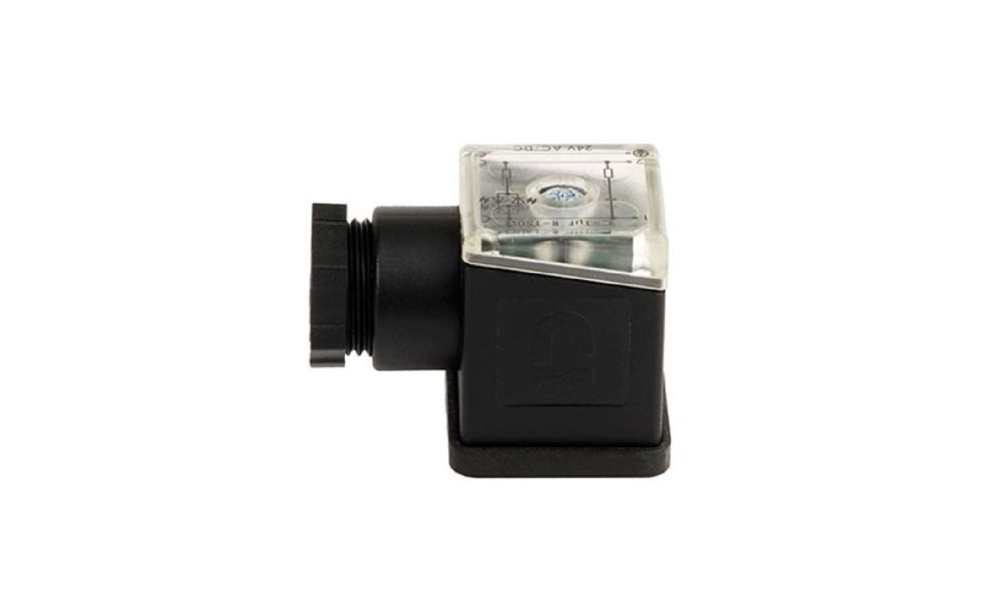

Match the connector to your coil voltage, size and form. The 88122405 is rated for 24 V, while the 88122608 is listed for 230 V. Send your coil part number to General Tech Services LLC if you need compatibility confirmation.
Will the ASCO 88122405 fit coils from other brands?
DIN 43650 is an industry standard, so compatibility may be possible with coils using the matching size and form. Always confirm the connector size and form before installation.
How do I get a price and lead time?
Pricing is quote-based. Call General Tech Services LLC on +971 6 543 6933 or submit the Request a Quote form.
Is this a genuine ASCO connector?
General Tech Services supplies original ASCO parts in the UAE with technical support.
