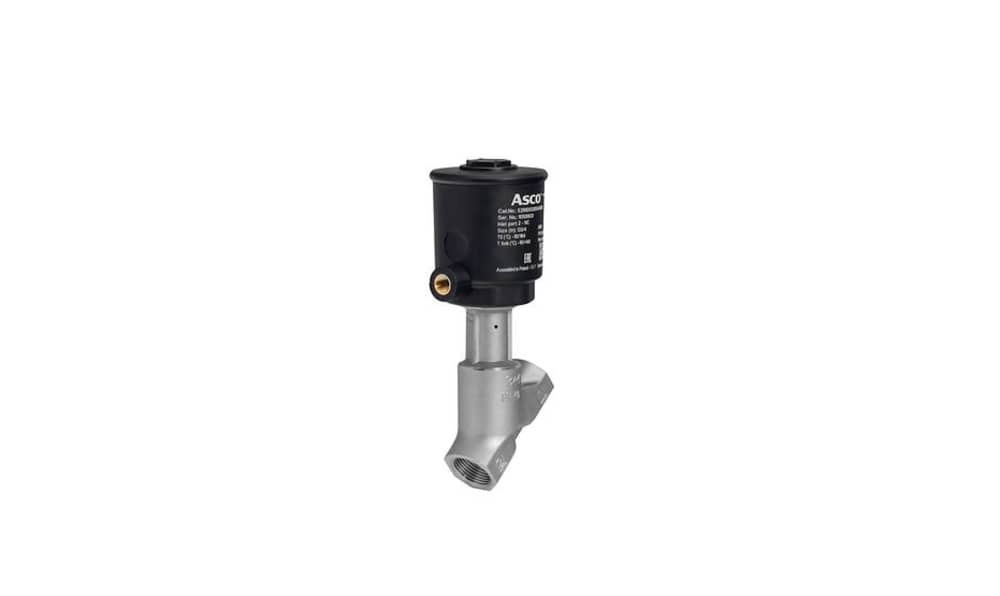

ASCO E290D1430SA0000, Angle Seat type Pneumatic Valve, ISO 1in, 16 bar

ASCO E290D1430SA0000 | E290 Series Angle Seat Pneumatic Valve Genuine ASCO E290D1430SA0000 angle seat pneumatic valve, in stock at General Tech Services LLC, Kuwait. This Series E290 valve features an ISO 1" connection, normally open (NO) spring-return operation, a stainless steel body with PTFE disc seal, and a maximum working pressure of 16 bar. Call +965 9807 4888 for pricing and stock availability. Part No. E290D1430SA0000 | ISO 1" | 16 bar Product Description The ASCO E290D1430SA0000 is a next-generation 2-way angle seat pneumatic valve from the ASCO E290 Series, designed to the ISO 1" connection standard with a nominal diameter of 25 mm. The connection combines ISO 228-1 and ISO 7-1 standards for G or RP connections. The valve uses a spring-return, normally open (NO) configuration and is designed for pneumatic fluid-control applications. It features a stainless steel body with a PTFE disc seal and a plastic actuator with a 50 mm piloting connection diameter and G1/8" piloting port. The E290D1430SA0000 is rated to a maximum working pressure of 16 bar. Pilot air controls the valve, while the spring-return configuration provides the normally open default position. Key Benefits Spring-return, normally open (NO) default position ISO 1" connection standard 25 mm nominal diameter Stainless steel body with PTFE disc seal Maximum working pressure of 16 bar ISO 228-1 and ISO 7-1 compatible G or RP connection Plastic actuator with 50 mm piloting connection diameter G1/8" piloting port Suitable for pneumatic fluid-control applications Genuine ASCO part with stock held in Kuwait Call +965 9807 4888 for pricing and stock availability. Who This Product Is Best For Process engineers specifying a spring-return, normally open angle seat valve Plants standardising on ISO 1" valve connections System integrators requiring a stainless steel pneumatic valve rated to 16 bar Maintenance teams replacing an existing ASCO E290 Series valve How to Specify & Commission It Confirm the ISO 1" connection and 16 bar maximum working pressure match your application. Check that the pilot air supply and G1/8" piloting connection are compatible. Install the valve in the correct flow direction and provide adequate support for the valve body. Pressure-test the installation and verify normally open operation before commissioning. Frequently Asked Questions What is the ASCO E290D1430SA0000 valve used for? It is a spring-return, normally open (NO) angle seat pneumatic valve with an ISO 1" connection for pneumatic fluid-control applications. What is the maximum working pressure? The E290D1430SA0000 is rated to a maximum working pressure of 16 bar. What is the valve body made of? It has a stainless steel body with a PTFE disc seal. What is the default valve position? The valve is normally open (NO) and spring-return. What connection size does it use? It uses an ISO 1" connection standard with a nominal diameter of 25 mm. What type of actuator and pilot connection does it have? The valve has a plastic actuator with a 50 mm piloting connection diameter and G1/8" piloting port. What connection standards does the valve support? The connection combines ISO 228-1 and ISO 7-1 standards for G or RP connections. Is genuine ASCO stock available in Kuwait? Yes. Genuine ASCO E290D1430SA0000 stock is held at General Tech Services LLC, Kuwait. Call +965 9807 4888 for pricing and current availability. General Tech Services LLC — Genuine ASCO Distributor, Kuwait | +965 9807 4888
