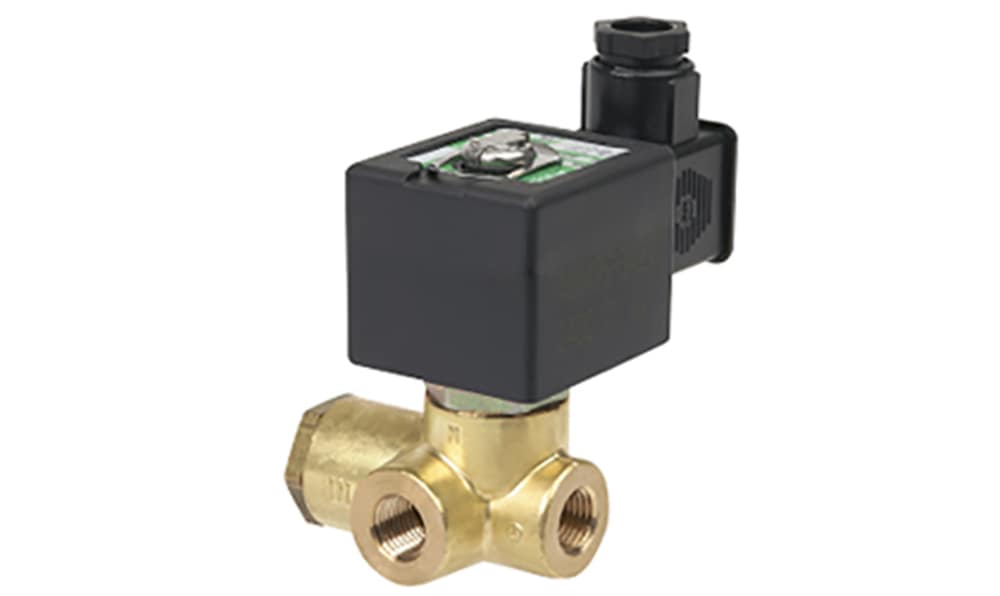

ASCO SC8223A427.230/50, Solenoid Valve , 2 port(s) , NC, 230 V ac, 3/8in

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ASCO SC8223A427.230/50, Solenoid Valve , 2 port(s) , NC, 230 V ac, 3/8in

Name: ASCO SC8223A427.230/50, Solenoid Valve , 2 port(s) , NC, 230 V ac, 3/8in
Brand: Asco
SKU: SC8223A427.230/50
Availability: OutOfStock

Part Number : SC8223A427.230/50

Availability: Sold out

Detailed Description
Specifications

223 series 2 / 2 N/C solenoid valves

2 / 2 N/C power-assisted, floating piston solenoid valves for high pressure fluids, 1/4" or 3/8" output (depending on model).
Heavy-duty two-way shut-off solenoid valves for control of pressurised fluids compatible with the seal materials used.
Valves require a minimum ΔP.
Can be mounted in any position.
Pluggable connectors.

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

Brand	Asco
Supply Voltage	230 V ac
Number of Ports	2
Connection Size	3/8in
Connection	3/8 in NPT Female
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Oil, Water
Type	2/2
Orifice Diameter	8mm
Body Material	Brass
Series	223
Maximum Working Pressure	100 bar
Operating Temperature Range	-20 → +90 °C
Thread Standard or Connection Type	NPT
Connection Gender	Female
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+90°C
Maximum Closing Time	60ms
Maximum Opening Time	60ms
Flow Factor Kv	1.3m³/h
