ASCO SCE210D402.230/50, Solenoid Valve , 2 port(s) , NC, 230 V, 1/2in

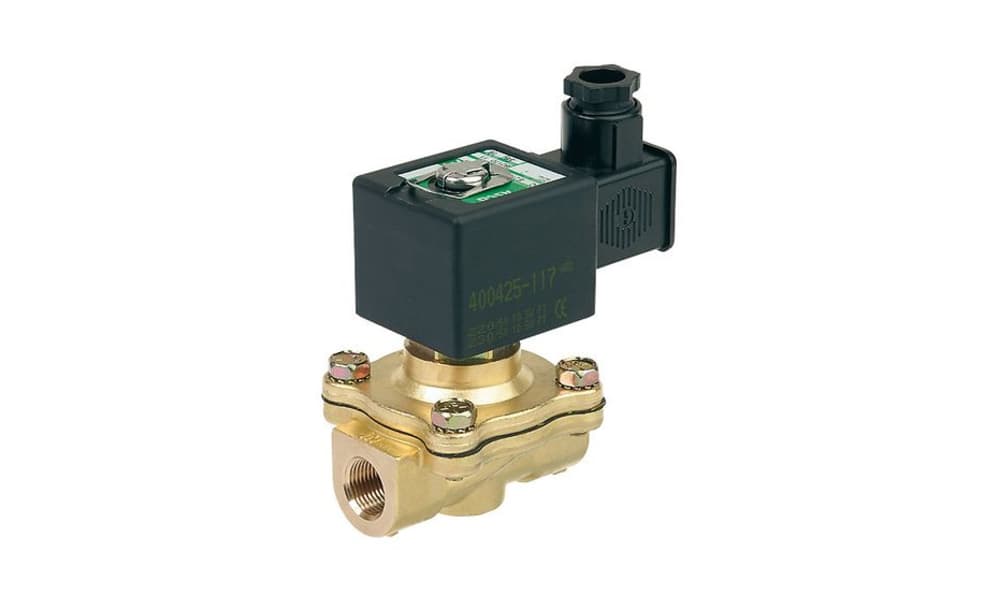

Name: ASCO SCE210D402.230/50, Solenoid Valve , 2 port(s) , NC, 230 V, 1/2in
Brand: Asco
SKU: SCE210D402.230/50
Availability: OutOfStock

Part Number : SCE210D402.230/50

Availability: Sold out

Detailed Description
Specifications

The Asco Solenoid Valve is a fine example of high-quality engineering designed for reliable control of various fluids. This particular model incorporates a pilot-operated, hung diaphragm mechanism to ensure seamless operation across a range of applications. Its versatile design supports a variety of media, including air, water, and oils while maintaining stringent compliance with relevant EU directives. With a robust body construction and the option to select different seal materials, this valve is built to withstand challenging operating conditions while providing optimum performance. The inclusion of multiple installation options adds to its adaptability in various settings. The user-friendly specifications empower operators to integrate this solenoid valve effortlessly into their systems, making it a reliable choice for numerous industrial applications.

Two-way shut-off valve offering efficient flow control
Designed for compatibility with various fluids and gases
Eliminates the need for a minimum operating pressure
Suits both group 1 and 2 fluids as per the Pressure Equipment Directive
Electrical enclosure protection rated at IP65 for enhanced durability
Offers standard coil insulation classes of F or H
Multiple voltage options ensure flexibility for various installations
Mounting position is versatile, accommodating various setups
Available with numerous diaphragm and seal material options for customisation
Integrated safety features comply with IEC electrical safety standards

Brand	Asco
Supply Voltage	230 V
Number of Ports	2
Connection Size	1/2in
Connection	G 1/2
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Oil, Water
Type	Solenoid
Orifice Diameter	16mm
Series	210
Body Material	Brass
Maximum Working Pressure	16 bar
Operating Temperature Range	-20 → +85 °C
Servo Assist	No
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+85°C
Thread Standard or Connection Type	G
Flow Factor Kv	57L/min
