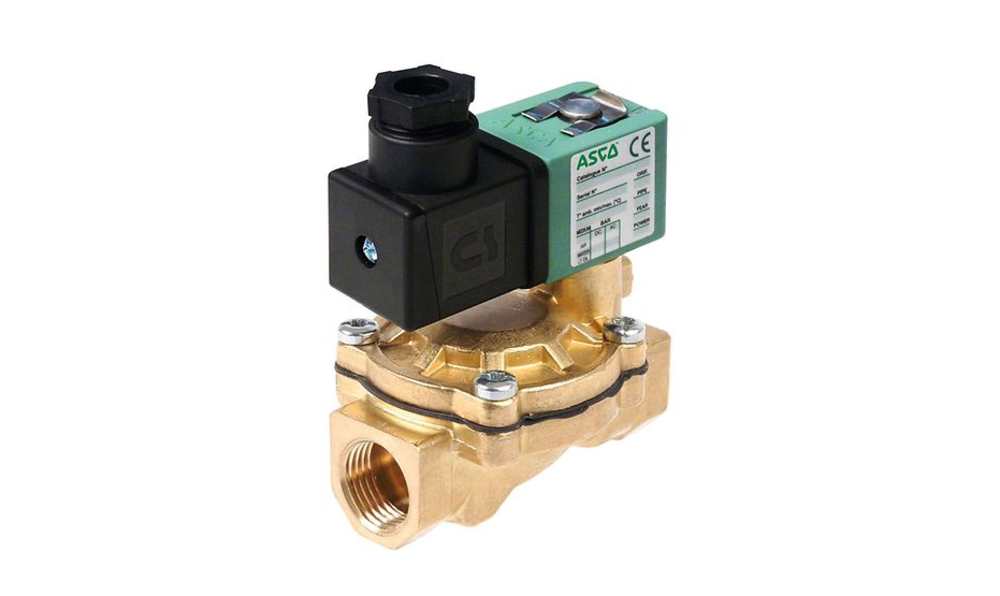

ASCO SCG238A048.115/50, Solenoid Valve , 2 port(s) , NC, 115 V, 3/4in

Name: ASCO SCG238A048.115/50, Solenoid Valve , 2 port(s) , NC, 115 V, 3/4in
Brand: Asco
SKU: SCG238A048.115/50
Availability: OutOfStock

Part Number : SCG238A048.115/50

Availability: Sold out

Detailed Description
Specifications

The Asco solenoid valve is expertly designed for efficient control over both cold and hot water applications. Engineered with an anti-water hammer feature, it significantly mitigates the disruptive effects of pressure fluctuations in piping systems. This valve employs a robust pilot-operated mechanism with a hung diaphragm, allowing for precise operation and optimal flow management. Crafted with high-quality materials, it ensures reliable performance across various operational conditions, showcasing its versatility. Additional features support a range of fluid types and system specifications, making it a top choice for professionals seeking reliable valve solutions in demanding environments.

Engineered to reduce water hammer incidents in plumbing applications
Robust construction ensures long-lasting reliability and durability
Versatile operation range suitable for various temperature and pressure conditions
Incorporates a self-cleaning mechanism to maintain efficiency over time
Designed to meet all relevant EU directives for safety and performance
Multiple voltage options available to cater to diverse electrical requirements

Brand	Asco
Supply Voltage	115 V
Number of Ports	2
Connection Size	3/4in
Connection	3/4 in G
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Water
Type	Solenoid
Orifice Diameter	19mm
Series	238
Body Material	Brass
Maximum Working Pressure	10 bar
Operating Temperature Range	-20 → +50 °C
Servo Assist	No
Maximum Operating Temperature	+50°C
Minimum Operating Temperature	-20°C
Thread Standard or Connection Type	G
Flow Factor Kv	75L/min
