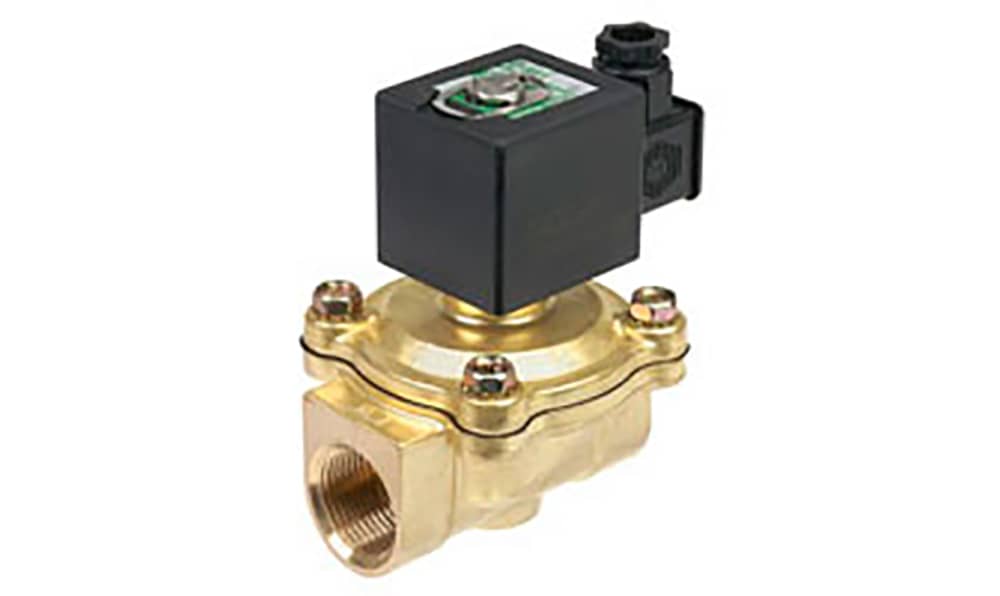

ASCO SCG238A048-24VCA, Solenoid Valve , 2 port(s) , NC, 24 V ac, 3/4in

Name: ASCO SCG238A048-24VCA, Solenoid Valve , 2 port(s) , NC, 24 V ac, 3/4in
Brand: Asco
SKU: SCG238A048-24VCA
Availability: OutOfStock

Part Number : SCG238A048-24VCA

Availability: Sold out

Detailed Description
Specifications

238 series 2//2 solenoid valves with power-assisted control.

Power-assisted control 2/2 NC and NO solenoid valves with floating diaphragm.
No minimum control pressure.
238 series solenoid valves designed to eliminate water hammer when water is turned off.
Brass body.
Pluggable PG 11P connection.

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

Brand	Asco
Supply Voltage	24 V ac
Number of Ports	2
Connection Size	3/4in
Connection	3/4 in G Female
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Water
Type	2/2
Orifice Diameter	19mm
Body Material	Brass
Series	238
Maximum Working Pressure	10 bar
Operating Temperature Range	-20 → +85 °C
Minimum Operating Temperature	-20°C
Thread Standard or Connection Type	G
Connection Gender	Female
Maximum Operating Temperature	+85°C
Flow Factor Kv	4.5m³/h
