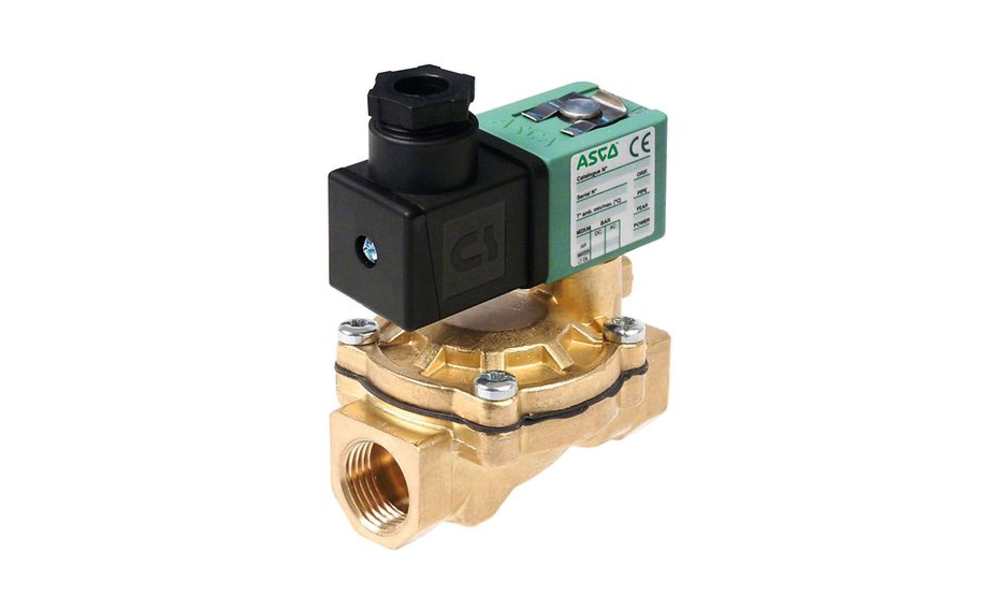

ASCO SCG238A050.24/50, Solenoid Valve , 2 port(s) , NC, 24 V, 1in

Name: ASCO SCG238A050.24/50, Solenoid Valve , 2 port(s) , NC, 24 V, 1in
Brand: Asco
SKU: SCG238A050.24/50
Availability: OutOfStock

Part Number : SCG238A050.24/50

Availability: Sold out

Detailed Description
Specifications

The Asco solenoid valve offers precise control for both cold and hot water applications, delivering reliable performance in various conditions. Designed with an anti-water hammer feature, it ensures smooth operation while minimising disruptive surges. This product is built with high-quality materials, including brass and stainless steel, ensuring durability and longevity. The valve's self-cleaning device maintains optimal flow, while its compliance with all relevant EU directives guarantees safety and efficiency. With a broad operating temperature range, this model excels in diverse environments, making it ideal for numerous industrial applications.

Two-way shut-off functionality for versatile operation
Zero bar minimum operating pressure enables use in low-pressure systems
Self-cleaning mechanism prevents clogs, enhancing reliability
Constructed to meet EU directives for safety and environmental standards
Class F coil insulation ensures durability under various conditions
Moulded electrical enclosure protection rated at IP65 for reliability in wet conditions
Wide range of standard voltages caters to diverse installation requirements
Simple to install in any orientation, maximising flexibility in setup
Optional EPDM seals available for enhanced compatibility with various fluids

Brand	Asco
Supply Voltage	24 V
Number of Ports	2
Connection Size	1in
Connection	1 in G
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Water
Type	Solenoid
Orifice Diameter	25mm
Body Material	Brass
Series	238
Maximum Working Pressure	10 bar
Operating Temperature Range	-20 → +50 °C
Servo Assist	No
Maximum Operating Temperature	+50°C
Thread Standard or Connection Type	G
Minimum Operating Temperature	-20°C
Flow Factor Kv	166L/min
