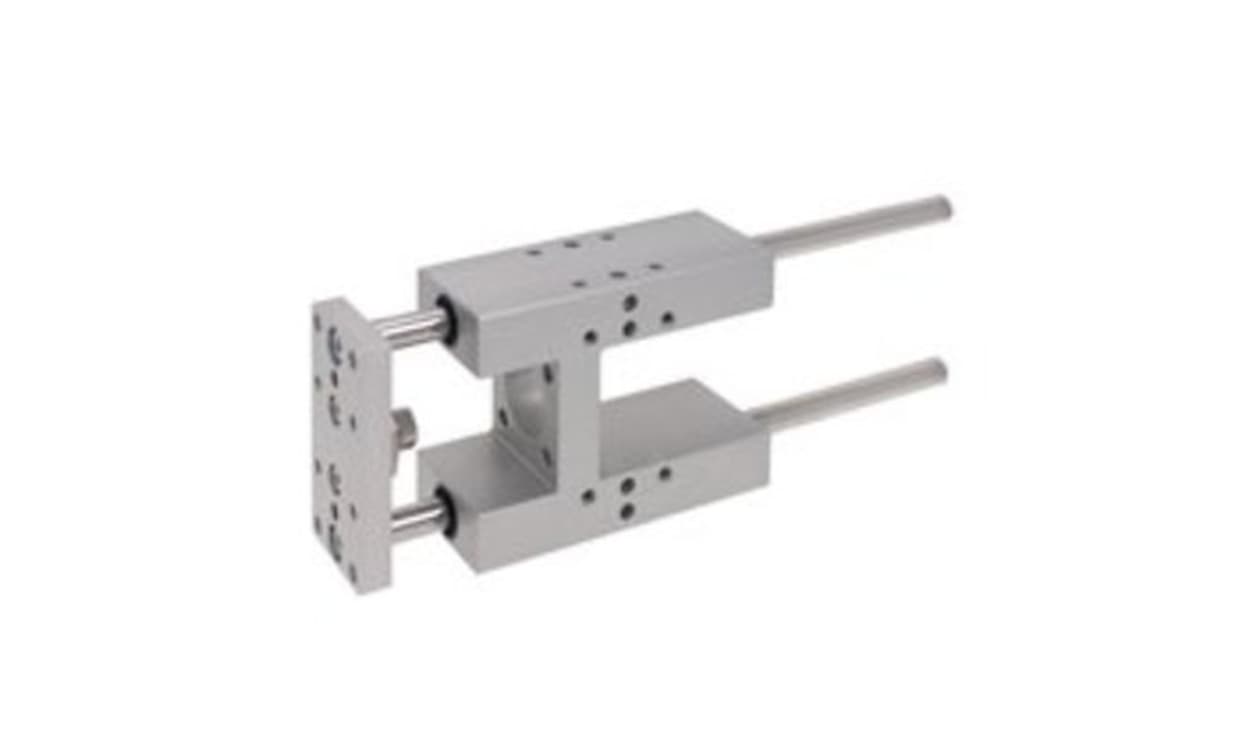

AVENTICS 0821401230 | Slide Unit | for ISO 15552 Standard Cylinders

Name: AVENTICS 0821401230 | Slide Unit | for ISO 15552 Standard Cylinders
Brand: Aventics
SKU: 0821401230
Availability: OutOfStock

Part Number : 0821401230

Listed for ISO 15552 Standard Cylinders, the AVENTICS 0821401230 slide unit belongs to the CG1 series. Before ordering 0821401230, confirm stroke, size or load values on the datasheet; they are not stated here.

Part number: 0821401230
Product: slide unit
Series: CG1
For use with: ISO 15552 Standard Cylinders

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics guide unit from the GH1 Series CG1 represents a pinnacle of engineering precision and reliability. Designed for industrial applications, it excels in performance with durable materials and robust construction. This product is perfect for implementations requiring reliable operation within a wide temperature range, ensuring efficiency even in the most challenging environments. With a carefully crafted design including an aluminium bearing housing and hardened steel guide rods, this guide unit ensures exceptional load-bearing capabilities. Its technical specifications are tailored for standard cylinders according to ISO 15552, promising compatibility and ease of integration. The unit’s lightweight design does not compromise on strength, making it an excellent choice for both performance and longevity in demanding industrial settings.

Constructed with colourless anodised aluminium for enhanced corrosion resistance
Employs sintered bronze bearing type for increased durability under load
Offers a wide operational temperature range from -20 °C to 80 °C
Features robust guide rods made from hardened heat-treated steel for superior strength
Designed to accommodate various piston diameters, ensuring versatility
Compact design allows for easy installation in tight spaces
Lube nipple integrated for convenient maintenance and lubrication
Optimised for standard cylinders as per ISO 15552, facilitating seamless integration

Brand	AVENTICS
For Use With	ISO 15552 Standard Cylinders
Manufacturer Series	CG1

AVENTICS 0821401230 | Slide Unit | for ISO 15552 Standard Cylinders
