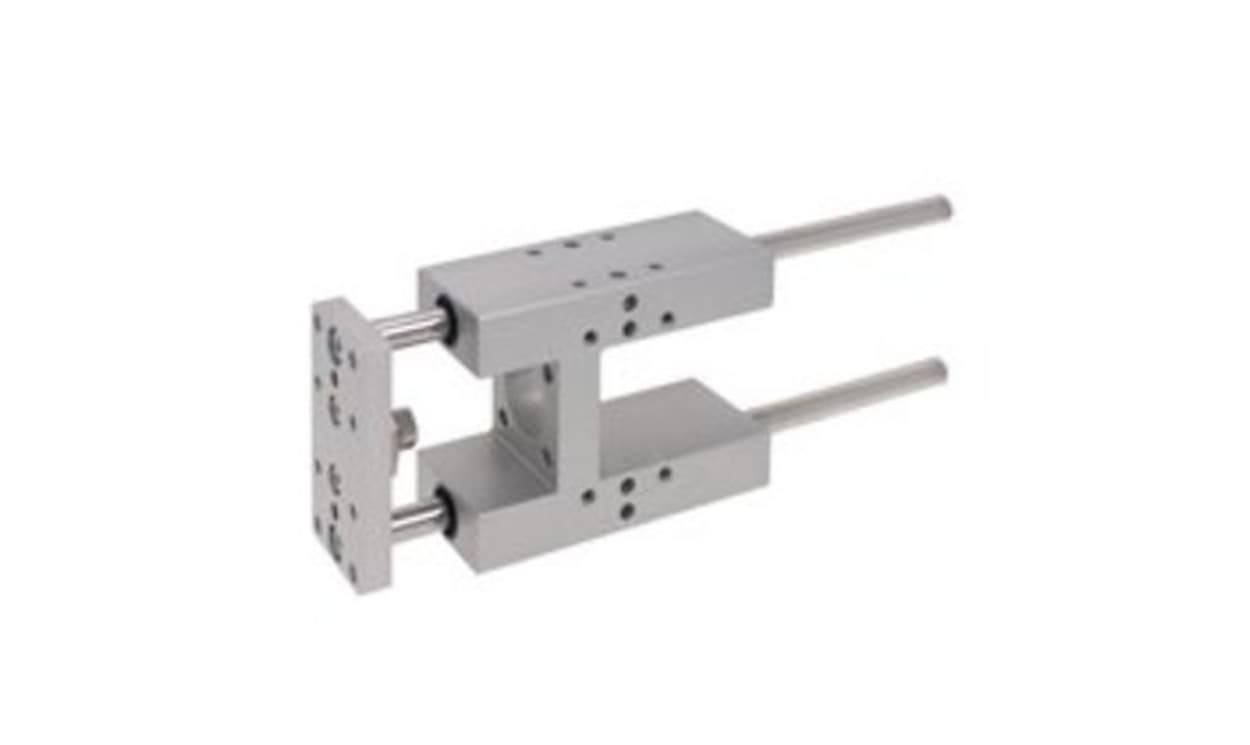

AVENTICS 0821401235 | Slide Unit | for ISO 15552 Standard Cylinders

Name: AVENTICS 0821401235 | Slide Unit | for ISO 15552 Standard Cylinders
Brand: Aventics
SKU: 0821401235
Availability: OutOfStock

Part Number : 0821401235

AVENTICS 0821401235 is a CG1 series slide unit for use with ISO 15552 Standard Cylinders. Refer to the 0821401235 datasheet for stroke, size or load values, which the listed data does not state.

Product: slide unit
For use with: ISO 15552 Standard Cylinders
Series: CG1
Part number: 0821401235

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics guide unit, designed as part of the GH1 series, offers a robust solution for precise motion control in industrial applications. Its exceptional design encompasses a plain bearing system, compatible with standard ISO 15552 cylinders, ensuring reliable performance in various environments. With an impressive range of operational temperatures, from -20 °C to 80 °C, this unit is engineered to withstand challenging conditions. Its lightweight aluminium bearing housing, colourless anodised for enhanced durability, further contributes to its effective operation. This guide unit is tailored for efficiency, featuring a range of piston diameters and strokes to suit diverse requirements, making it an ideal choice for a variety of industrial applications.

Maximises operational efficiency with a wide range of stroke options
Constructed from high-quality materials for increased durability and longevity
Innovative bearing design reduces friction, facilitating smoother operation
Lightweight structure enhances ease of installation and handling
Adaptable to different industrial environments with its extensive temperature range
Excellent load-bearing capacity supports optimum performance under pressure
Streamlined design optimises space utilisation during installation

Brand	AVENTICS
For Use With	ISO 15552 Standard Cylinders
Manufacturer Series	CG1
