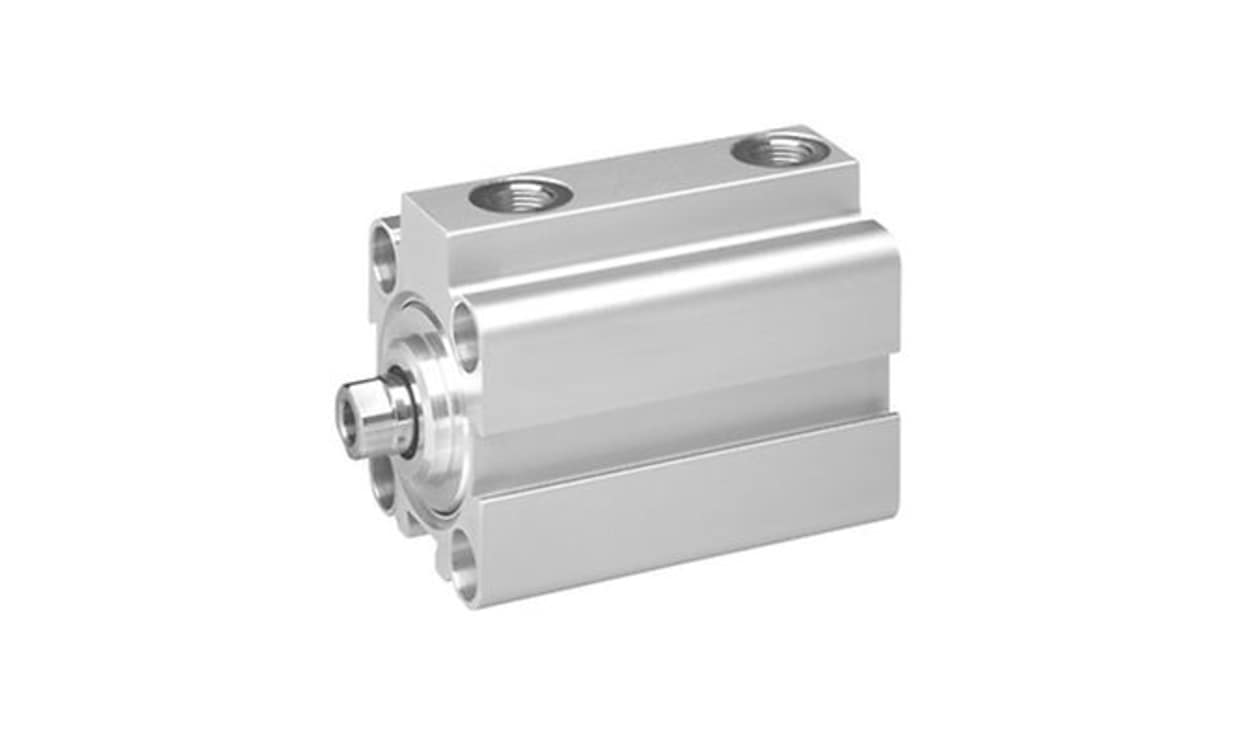

AVENTICS 0822010659 Pneumatic Piston Rod Cylinder - , 40mm Bore, 100mm Stroke, KHZ Series, Double Acting

Name: AVENTICS 0822010659 Pneumatic Piston Rod Cylinder - , 40mm Bore, 100mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010659
Availability: OutOfStock

Part Number : 0822010659

Availability: Sold out

Detailed Description
Specifications

The Aventics short-stroke cylinder from the Series KHZ is designed for environments where space is limited yet high performance is essential. The innovative engineering behind this component allows for seamless integration into machinery, ensuring reliable operation in industrial settings. Harnessing the capabilities of double-acting functional principles and elastic cushioning, this cylinder provides significant retraction and extracting forces, making it an optimal choice for various applications. Its robust construction, featuring materials like stainless steel and aluminium, ensures durability and longevity, while maintaining compliance with industry standards. The cylinder's design supports straightforward installation and functionality, making it a preferred choice for manufacturers seeking efficient mechanical performance.

Optimised for tight installation spaces, enhancing usability in constrained environments
Double-acting functionality provides efficient performance for diverse applications
Elastic cushioning minimises impact stress, extending the product's lifespan
High retracting and extracting forces ensure powerful operation
Constructed with premium materials for improved durability and reliability
Industry standard compliance guarantees compatibility with existing systems
Lightweight design facilitates easy handling and installation

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010659
Bore	40mm
Stroke	100mm
Action	Double
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Stroke Interval Weight	0.052 @ 10 mm kg/mm
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
Test Weight	0.285 kg
