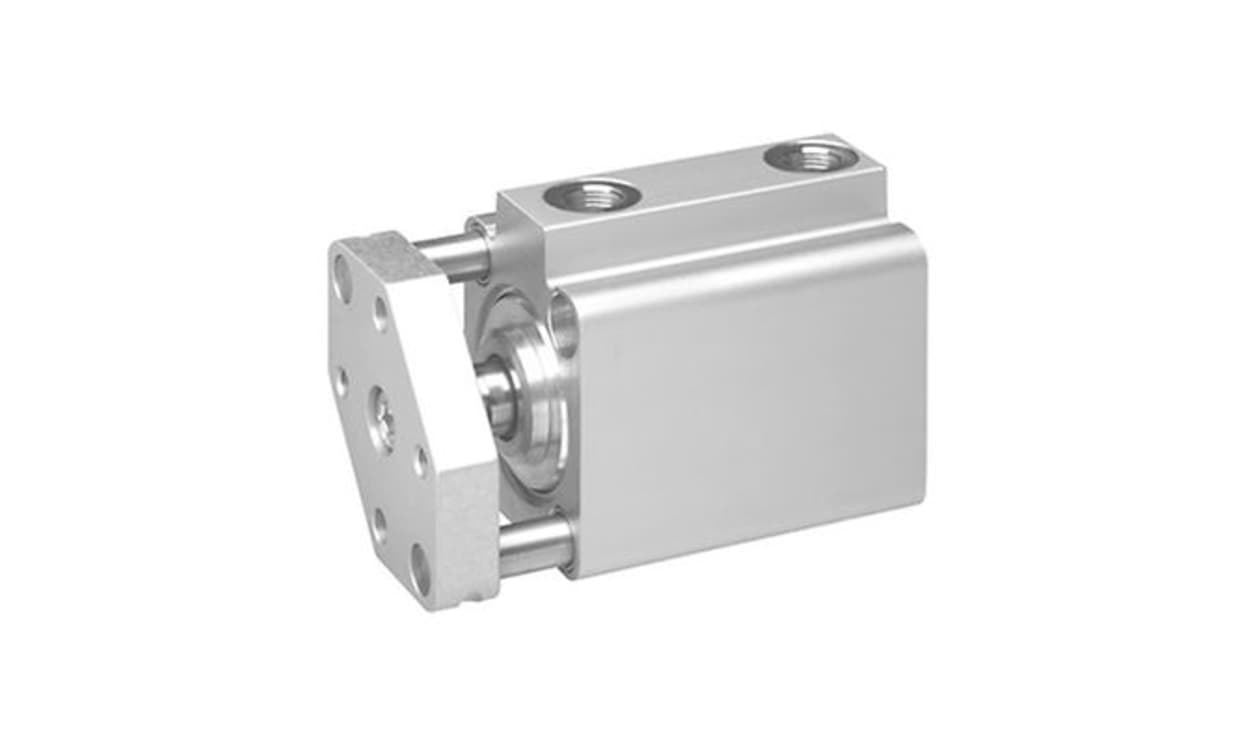

AVENTICS 0822010745 Pneumatic Piston Rod Cylinder - , 32mm Bore, 30mm Stroke, KHZ Series, Double Acting

Name: AVENTICS 0822010745 Pneumatic Piston Rod Cylinder - , 32mm Bore, 30mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010745
Availability: OutOfStock

Part Number : 0822010745

Availability: Sold out

Detailed Description
Specifications

The Aventics Series KHZ short-stroke cylinder is designed for applications where space is at a premium, providing an efficient solution for integrated machinery in industrial environments. This cylinder's thoughtful construction ensures reliable performance even in the most confined spaces, allowing for seamless operation. Tailored for double-acting functionality, it offers a dynamic response to variable load conditions while demonstrating excellent safety features. With its superior materials and engineering, the Series KHZ cylinder guarantees longevity and efficacy in demanding tasks, making it a trusted choice for professionals in the industrial sector.

Compact design enables installation in tight spaces
Double-acting principle enhances operational versatility
Robust cushioning system delivers shock absorption
Standard scraper ensures optimal debris management
Variable working pressure range allows flexibility in applications
Integrated safety measures for dependable performance
Lightweight construction contributes to ease of installation
High-temperature tolerance supports diverse operational conditions

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010745
Bore	32mm
Stroke	30mm
Action	Double
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Test Weight	0.195 kg
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
Stroke Interval Weight	0.05 @ 10 mm kg/mm
