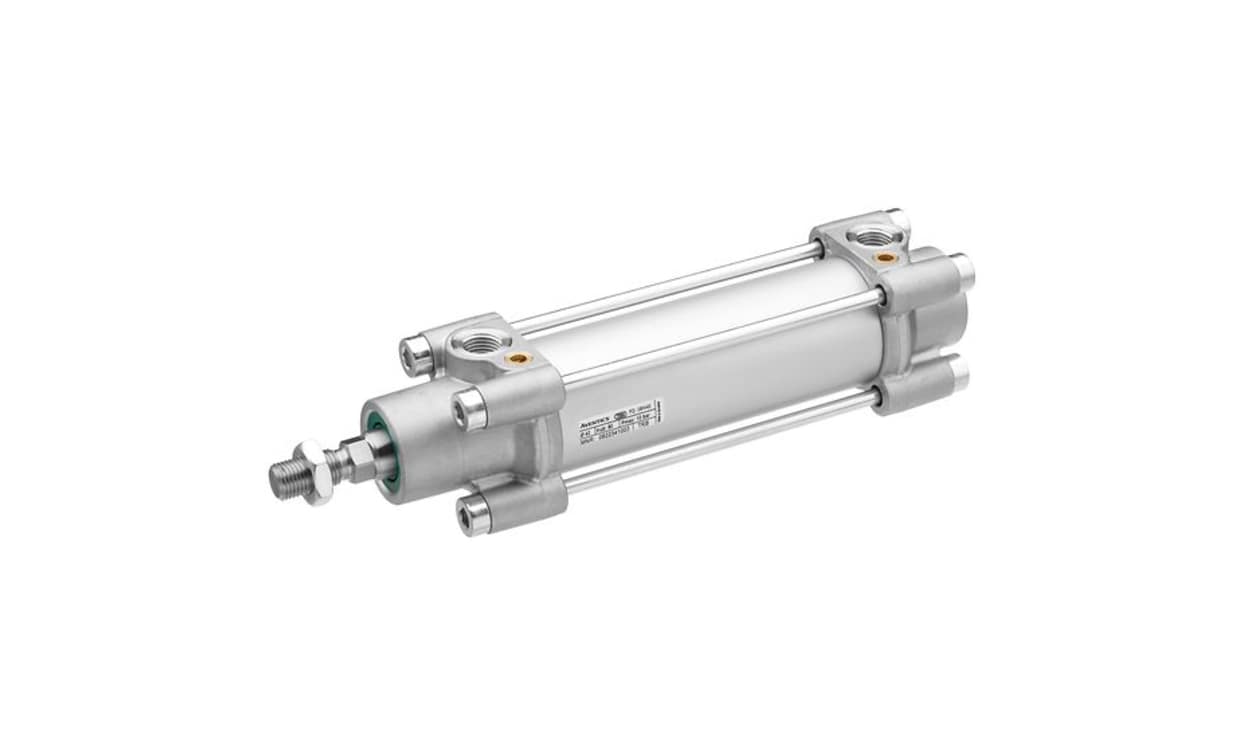

AVENTICS 0822306205 | Pneumatic Piston Rod Cylinder | 125 mm Bore, 125 mm Stroke, TRB Series
Part Number : 0822306205
In the AVENTICS TRB series, part 0822306205 provides a 125 mm stroke and a 125 mm bore with double-acting operation. The 125 mm x 125 mm body follows ISO 15552 and uses G 1/2 connections with pneumatic cushioning.
- Stroke 125 mm on a 125 mm bore (0822306205)
- Works from -20 to +80 °C on the 125 mm stroke unit
- Built to ISO 15552 on the 125 mm stroke unit
- Supply ports G 1/2 (125 x 125 mm)
- End cushioning type: pneumatic on the 125 mm stroke unit
- Up to 10 bar working pressure on the 125 mm stroke unit
For pricing, please contact our experts.
