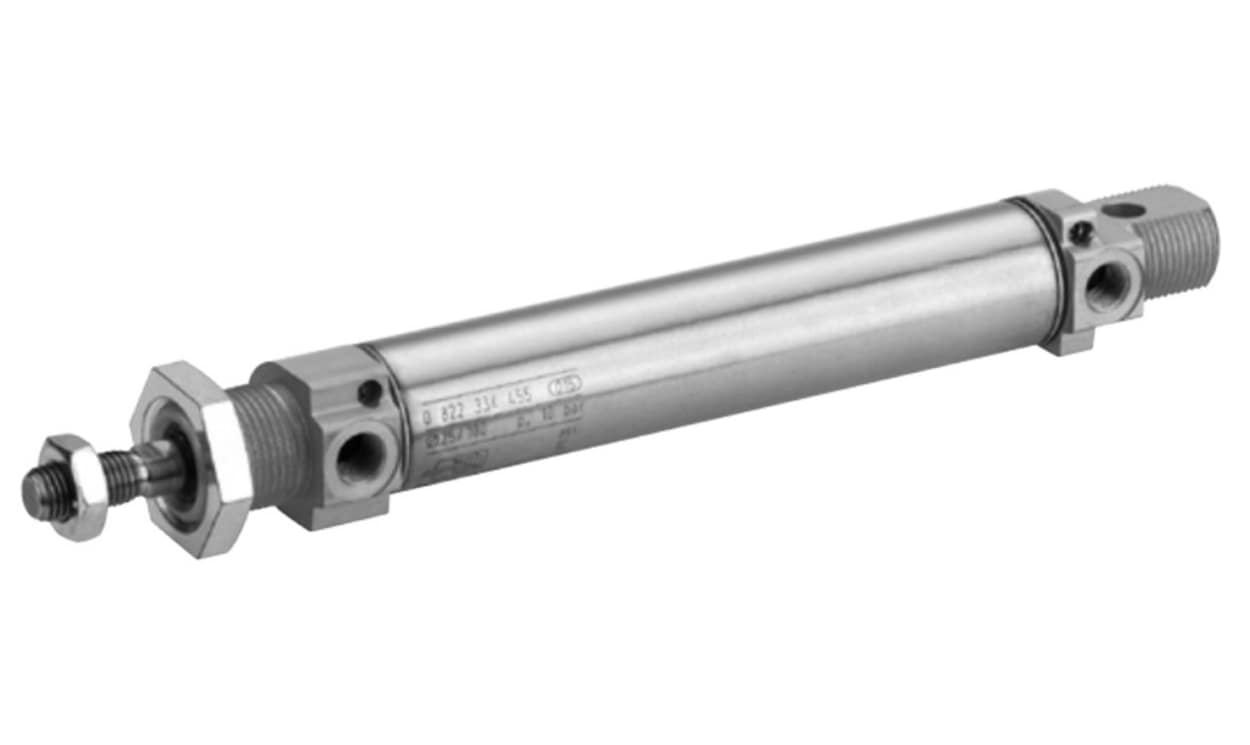

AVENTICS 0822333503 Pneumatic Piston Rod Cylinder - 20mm Bore, 50mm Stroke, MNI Series, Double Acting

Name: AVENTICS 0822333503 Pneumatic Piston Rod Cylinder - 20mm Bore, 50mm Stroke, MNI Series, Double Acting
Brand: Aventics
SKU: 0822333503
Availability: OutOfStock

Part Number : 0822333503

Availability: Sold out

Detailed Description
Specifications

MNI Mini ISO Cylinder Pneumatic Cushioning

Pneumatic Mini Iso 6432 cylinders

Double acting
Magnetic piston
Pneumatic cushioning
Integrated rear eye
External piston rod thread

MNI Mini ISO Cylinder

Brand	AVENTICS
Manufacturer Series	MNI
Bore	20mm
Stroke	50mm
Action	Double
Port Connection	G 1/8
Cushioning Type	Air
Dimensions	159.5 x 30 x 28mm
Length	159.5mm
Width	30mm
Height	28mm
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Weight	205g
Minimum Operating Temperature	-25°C
