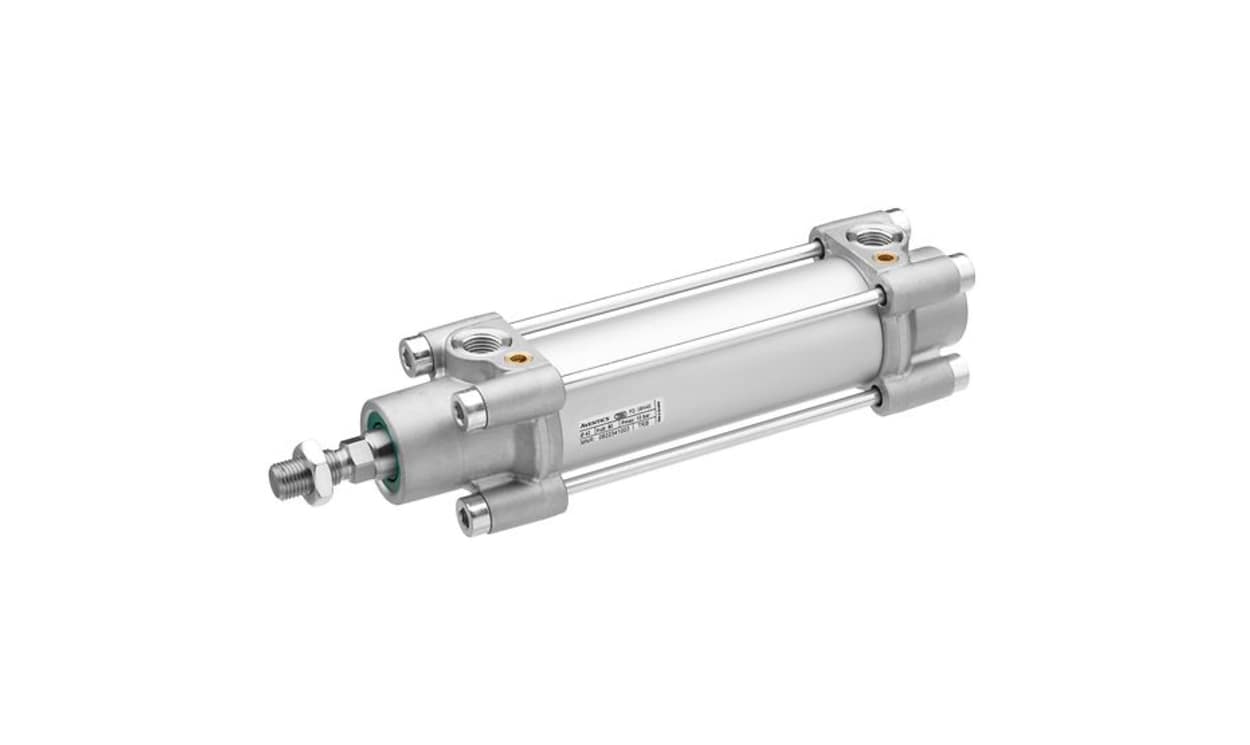

AVENTICS 0822341002 | TRB Pneumatic Guided Cylinder | 40 mm Bore, 50 mm Stroke, Double Acting

Name: AVENTICS 0822341002 | TRB Pneumatic Guided Cylinder | 40 mm Bore, 50 mm Stroke, Double Acting
Brand: Aventics
SKU: 0822341002
Availability: OutOfStock

Part Number : 0822341002

This 40 mm bore, 50 mm stroke guided cylinder is AVENTICS 0822341002 from the TRB series. Buyers get pneumatic cushioning, G 1/4 ports and ISO 15552 conformity on this 40 mm model.

50 mm stroke, 40 mm bore
TRB series double-acting cylinder, part 0822341002
10 bar maximum pressure at 40 mm bore
-20 to +80 °C operating range for the 40 mm bore
Part 0822341002 rod thread: male

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics tie rod cylinder from the series TRB is specifically designed to meet the rigours of industrial applications that require robust performance and reliability. Engineered to ISO 15552 standards, this cylinder excels in environments demanding high durability and precision, making it ideal for industries such as automotive, heavy machinery, and mining. With a double-acting functional principle, it ensures efficient operation across various tasks, while its pneumatic adjustable cushioning provides enhanced control and reduced wear. The cylinder’s construction employs high-quality materials, including stainless steel and die-cast aluminium, ensuring resistance against harsh conditions. This product not only guarantees exceptional quality but also offers versatility for a wide range of applications, making it a preferred choice among professionals.

Pioneered for heavy-duty applications that require reliable performance
Cushioning can be adjusted pneumatically to optimise operation
Constructed from high-grade materials for enhanced durability
Suitable for environments with stringent industry standards
Offers versatility to cater to various industrial needs
Designed to provide precise control in dynamic environments
Specifications cater to a wide temperature range, ensuring reliability

Brand	AVENTICS
Manufacturer Series	TRB
Model Number p	0822341002
Bore	40mm
Stroke	50mm
Action	Double
Pneumatic Connection	G 1/4
Port Connection	G 1/4
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS 0822341002 | TRB Pneumatic Guided Cylinder | 40 mm Bore, 50 mm Stroke, Double Acting

DOWNLOAD CATALOG

0822341002 Datasheet - 0822341002 A700000012559575

0822341002 Datasheet - 0822341002 A700000012561279
