AVENTICS 0822345010 Pneumatic Piston Rod Cylinder - , 100mm Bore, 400mm Stroke, TRB Series, Double Acting

Name: AVENTICS 0822345010 Pneumatic Piston Rod Cylinder - , 100mm Bore, 400mm Stroke, TRB Series, Double Acting
Brand: Aventics
SKU: 0822345010
Availability: OutOfStock

Part Number : 0822345010

Availability: Sold out

Detailed Description
Specifications

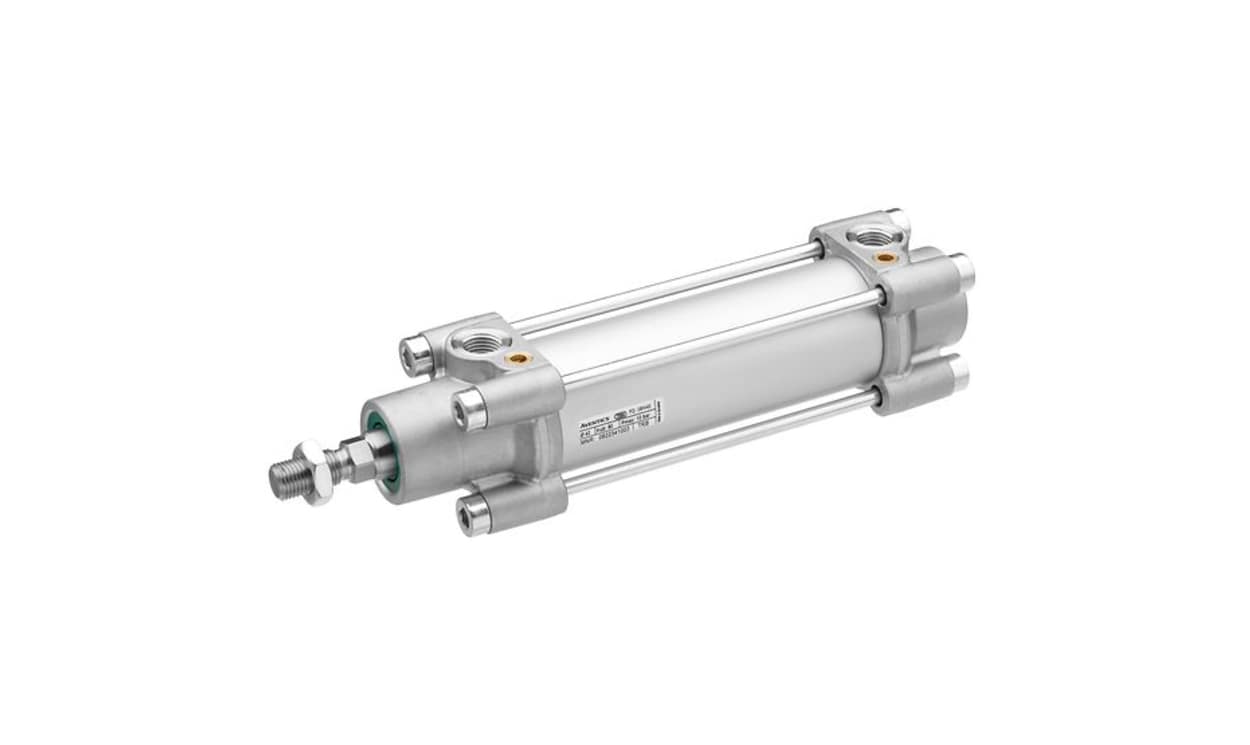

The Aventics tie rod cylinder ISO 15552, Series TRB is engineered for robust performance in demanding industrial environments. This advanced cylinder is renowned for its reliability in applications that require heavy-duty performance across various sectors including automotive and machinery. With a diverse range of stroke lengths and sizes, it provides flexibility in operation, meeting diverse engineering needs. This cylinder is designed with a double-acting mechanism that ensures efficient operation under high pressure. Its pneumatic adjustable cushioning allows for smooth and precise control, reducing wear and tear in high-cycle environments. Additionally, this product meets ISO 15552 standards, assuring users of its quality and compatibility.

Designed for heavy-duty applications across multiple industries
Available in various stroke lengths to meet specific operational requirements
Double-acting mechanism ensures efficient and balanced performance
Pneumatic cushioning adjustment allows for enhanced control and comfort
Complies with ISO 15552 standards for widespread applicability
ATEX option available for safety in potentially hazardous environments
Constructed with high-quality materials for exceptional durability

Brand	AVENTICS
Manufacturer Series	TRB
Model Number p	0822345010
Bore	100mm
Stroke	400mm
Action	Double
Pneumatic Connection	G 1/2
Port Connection	G 1/2
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
