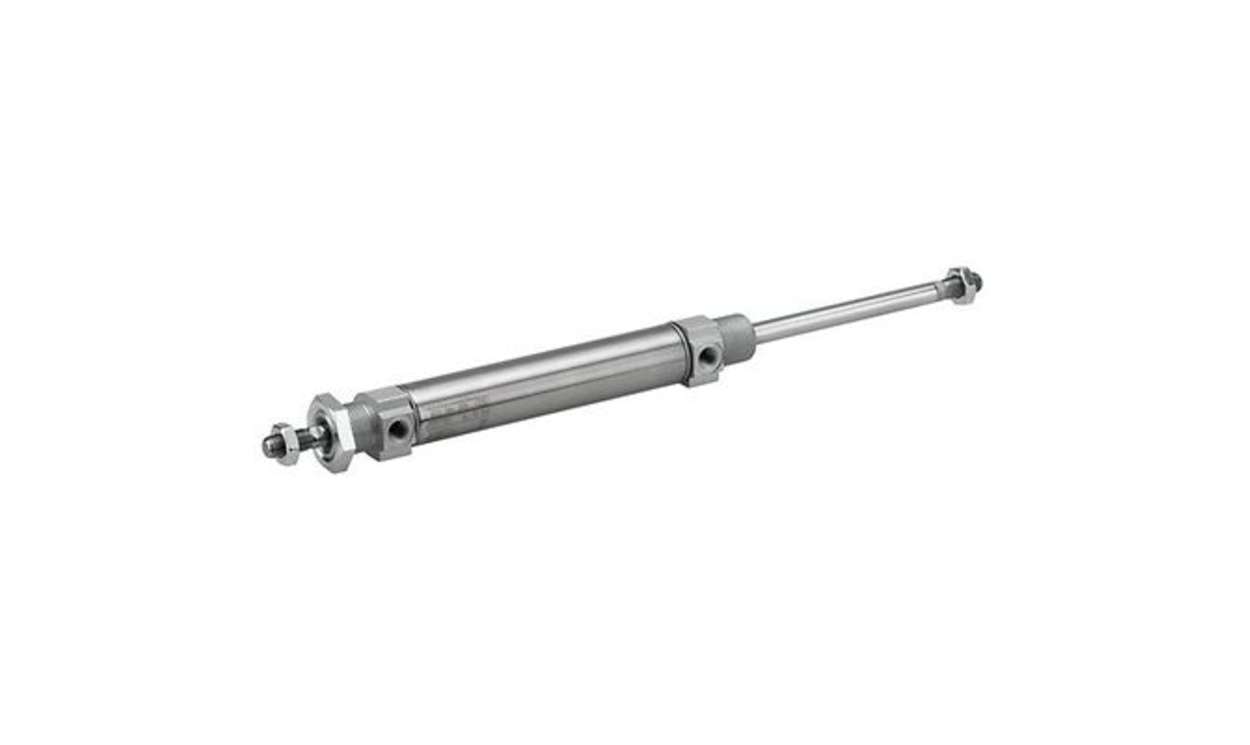

AVENTICS 0822382010 | Roundline Cylinder | 16 mm Bore, 250 mm Stroke, MNI Series

Name: AVENTICS 0822382010 | Roundline Cylinder | 16 mm Bore, 250 mm Stroke, MNI Series
Brand: Aventics
SKU: 0822382010
Availability: OutOfStock

Part Number : 0822382010

The 0822382010 from AVENTICS is a 16 mm bore, 250 mm stroke roundline cylinder in the MNI series, working double-acting. Specified for up to 10 bar, the 0822382010 carries ISO 6432 conformity and elastic cushioning.

Rated for up to 10 bar
Temperature range: -25 °C to +80 °C
Pneumatic and port connection: M5
Cushioning type: elastic
Piston rod thread: male
Conforms to ISO 6432

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics compact mini cylinder is designed for versatile applications in general machine construction. With its robust structure, the AVENTICS Series MNI excels in demanding environments, ensuring a reliable and long-lasting performance. The cylinder features a double-acting functional principle, catering to various operational needs. Optimised for efficiency, its elastic cushioning mechanism enhances the reliability during operation. The aesthetic yet functional design makes it ideal for integration in a range of industrial settings, all while meeting ISO 6432 standards for performance and compatibility. The lightweight construction further adds to its usability, making it a go-to choice for those looking for a dependable pneumatic solution.

Robust design ensures durability even in tough environments
Double-acting principle allows for versatile functioning across applications
Elastic cushioning enhances operational reliability and reduces wear
Complies with ISO 6432 standards for seamless integration
Lightweight construction simplifies installation and maintenance
Wide ambient temperature range supports diverse operational conditions
Compatible with ATEX certifications for enhanced safety in hazardous locations
Low oil content requirements maintain performance consistency
Compatible with a variety of accessories for customisation

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822382010
Action	Double
Stroke	250mm
Bore	16mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C

AVENTICS 0822382010 | Roundline Cylinder | 16 mm Bore, 250 mm Stroke, MNI Series

DOWNLOAD CATALOG

0822382010 Datasheet - 0822382010 A700000012563460

0822382010 Datasheet - 0822382010 A700000012571655
