AVENTICS 0822419002 Compact Air Bellows , 54mm Stroke

Name: AVENTICS 0822419002 Compact Air Bellows , 54mm Stroke
Brand: Aventics
SKU: 0822419002
Availability: OutOfStock

Part Number : 0822419002

Availability: Sold out

Detailed Description
Specifications

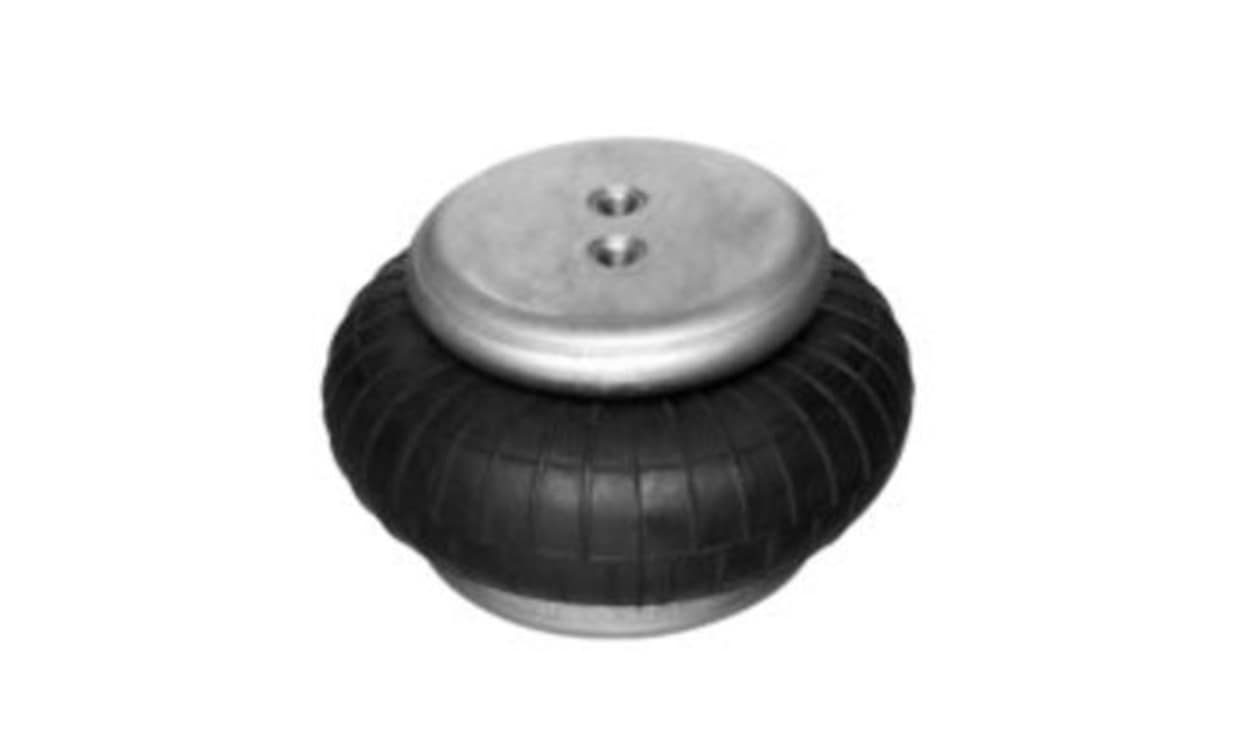

The Aventics Bellow Actuator, designed as part of the Series BCP, is engineered for precision and adaptability in industrial applications. With its robust design featuring permanently crimped connecting plates, it is capable of withstanding high forces in constrained spaces. The actuator's single-acting principle allows for safe retraction without pressure, making it an ideal choice for various operational environments. Not only does it boast a high level of temperature and corrosion resistance, but it has also been tested for safety at pressures up to 24 bar, ensuring reliable performance under demanding conditions.

Constructed with materials that enhance durability against environmental wear
Optimised for use in industrial settings ensuring high operational standards
Designed to support a wide range of ambient temperatures for versatile application
Specifications allow easy integration into existing compressed air systems

Brand	AVENTICS
Manufacturer Series	BCP
Nominal Diameter	108mm
Stroke	54mm
Installation Height Minimum	51mm
Installation Height Maximum	105mm
Port Connection	G 1/4
Maximum Operating Pressure	8 bar
Weight	1.2kg
