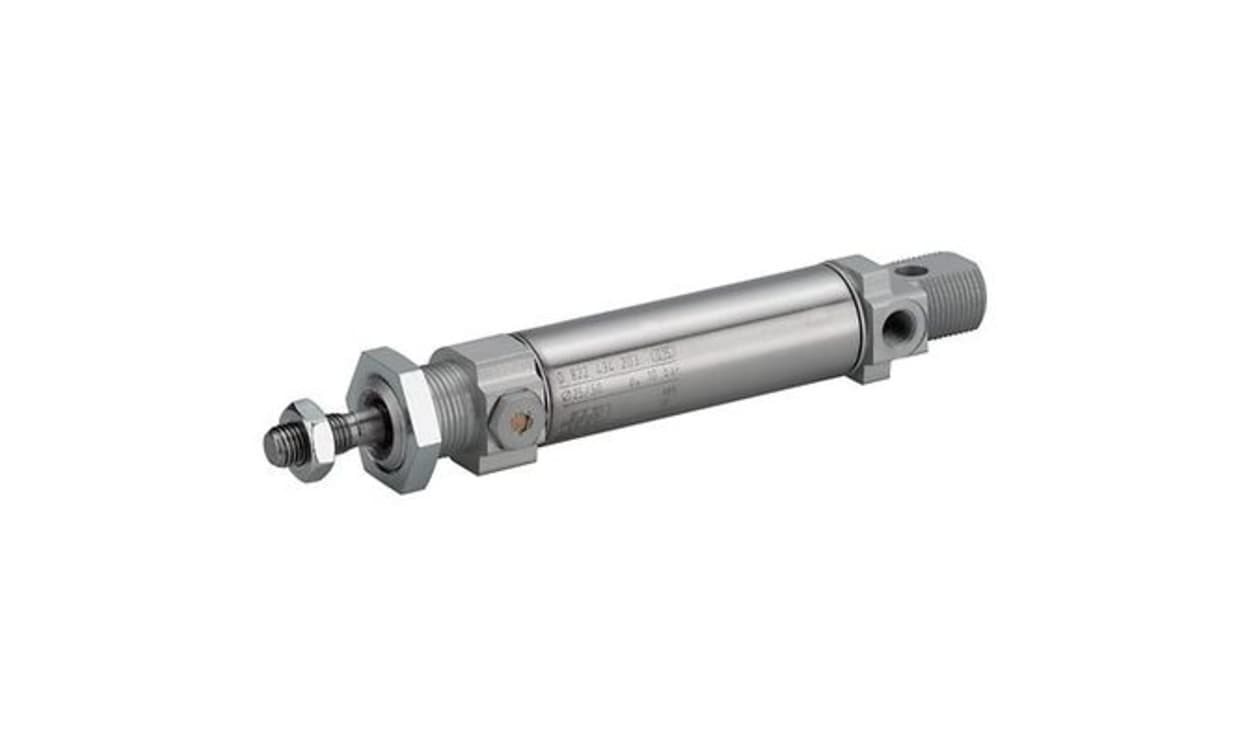

AVENTICS 0822430201 Roundline Cylinder - , 10mm Bore, 10mm Stroke, MNI Series, Single Acting

Name: AVENTICS 0822430201 Roundline Cylinder - , 10mm Bore, 10mm Stroke, MNI Series, Single Acting
Brand: Aventics
SKU: 0822430201
Availability: OutOfStock

Part Number : 0822430201

Availability: Sold out

Detailed Description
Specifications

The Aventics Series MNI Mini cylinder by aventics is designed specifically for general machine construction, delivering robust performance and a long service life. Crafted to meet the ISO 6432 standard, this round cylinder excels in precision and durability, making it an ideal choice for various industrial applications. With its outstanding features, including a single-acting functional principle, this mini cylinder ensures reliable operation without the need for pressure during retraction. Its elastic cushioning provides a gentle stop, thereby enhancing the lifecycle of machinery. Furthermore, the technical facets of the MNI Mini cylinder are complemented by an environmentally-conscious design, allowing it to function efficiently in demanding conditions.

Compact design ideal for space-constrained applications
Single-acting mechanism ensures dependable operation
Elastic cushioning enhances the reliability of cyclic operations
Stainless steel piston rod provides superior strength and resistance to wear
Wide temperature range allows for versatile usage across environments
Efficient in remarkable stroke lengths up to 40 mm
Optimised for use with compressed air, ensuring high performance
Manufactured with high-quality materials, enhancing durability
Environmental compliance ensures adherence to industry standards

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822430201
Bore	10mm
Action	Single
Stroke	10mm
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
