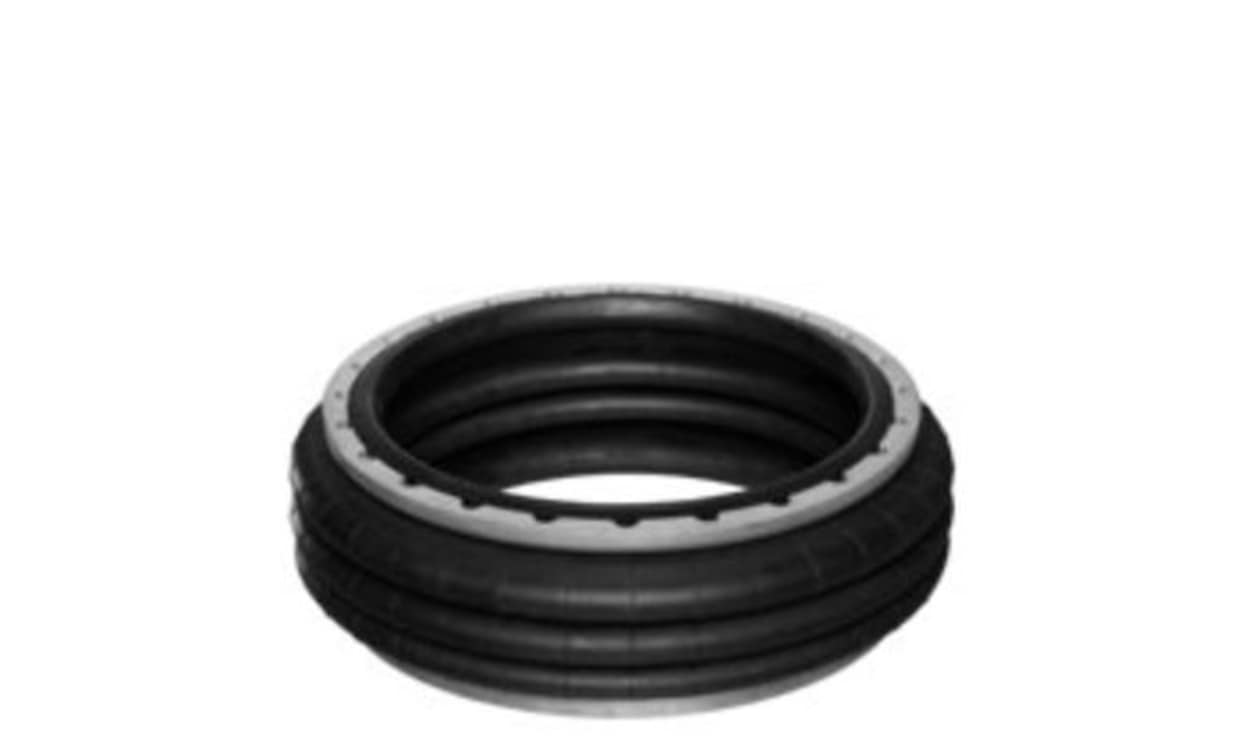

AVENTICS 1946272000 | BCR Compact Air Bellows | 384 mm Dia, 290 mm Stroke, G 1/4
Part Number : 1946272000
With a nominal diameter of 384 mm, the BCR series AVENTICS 1946272000 compact air bellows provides a 290 mm stroke. The listed installation height is 114 to 404 mm, and the unit weighs 9.3 kg.
- Stroke: 290 mm
- Nominal diameter: 384 mm
- Installation height: 114 to 404 mm
- Port connection: G 1/4
- Maximum operating pressure: 8 bar
- Weight: 9.3 kg
For pricing, please contact our experts.
