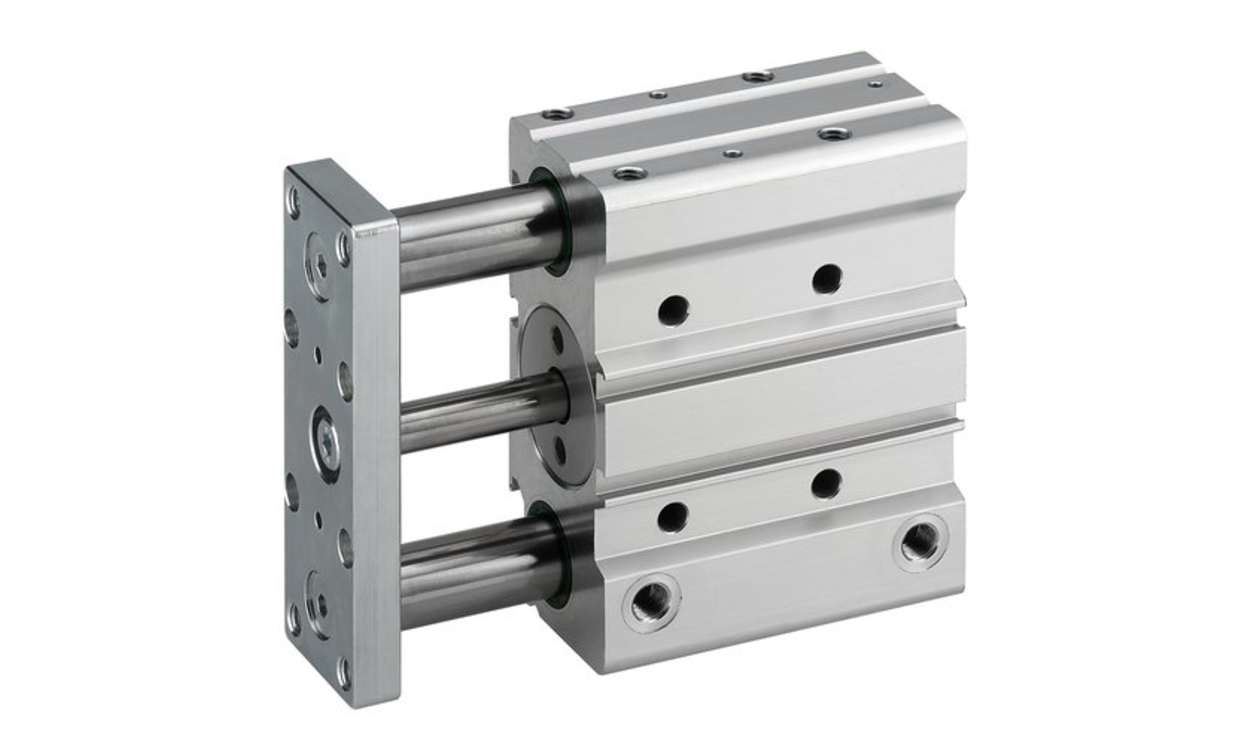

AVENTICS R402000931 | Pneumatic Guided Cylinder | 100 mm Bore, 100 mm Stroke, GPC-BV
Offering a 100 mm stroke on a 100 mm bore, the AVENTICS R402000931 is a double-acting pneumatic guided cylinder in the GPC-BV series. Listed dimensions are 217.5 x 111 x 226 mm, with a weight of 12.2 kg.
- Bore / stroke: 100 mm / 100 mm
- Action: double acting, elastic cushioning
- Maximum operating pressure: 8 bar
- Operating temperature: -10 to +70 °C
- Dimensions (L x W x H): 217.5 x 111 x 226 mm
- Weight: 12.2 kg
- Detailed Description
- Specifications
- Downloads
Bosch Rexroth Series GPC Guide Cylinder
| Brand | AVENTICS |
| Manufacturer Series | GPC-BV |
| Bore | 100 mm (3.94 in) |
| Stroke | 100 mm (3.94 in) |
| Action | Double |
| Maximum Operating Pressure | 8 bar (116 psi) |
| Cushioning Type | Elastic |
| Dimensions | 217.5 x 111 x 226 mm (8.56×4.37×8.90 in) |
| Weight | 12.2 kg (26.9 lb) |
| Maximum Operating Temperature | +70 °C (158 °F) |
| Length | 217.5 mm (8.56 in) |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Width | 111 mm (4.37 in) |
| Height | 226 mm (8.90 in) |
