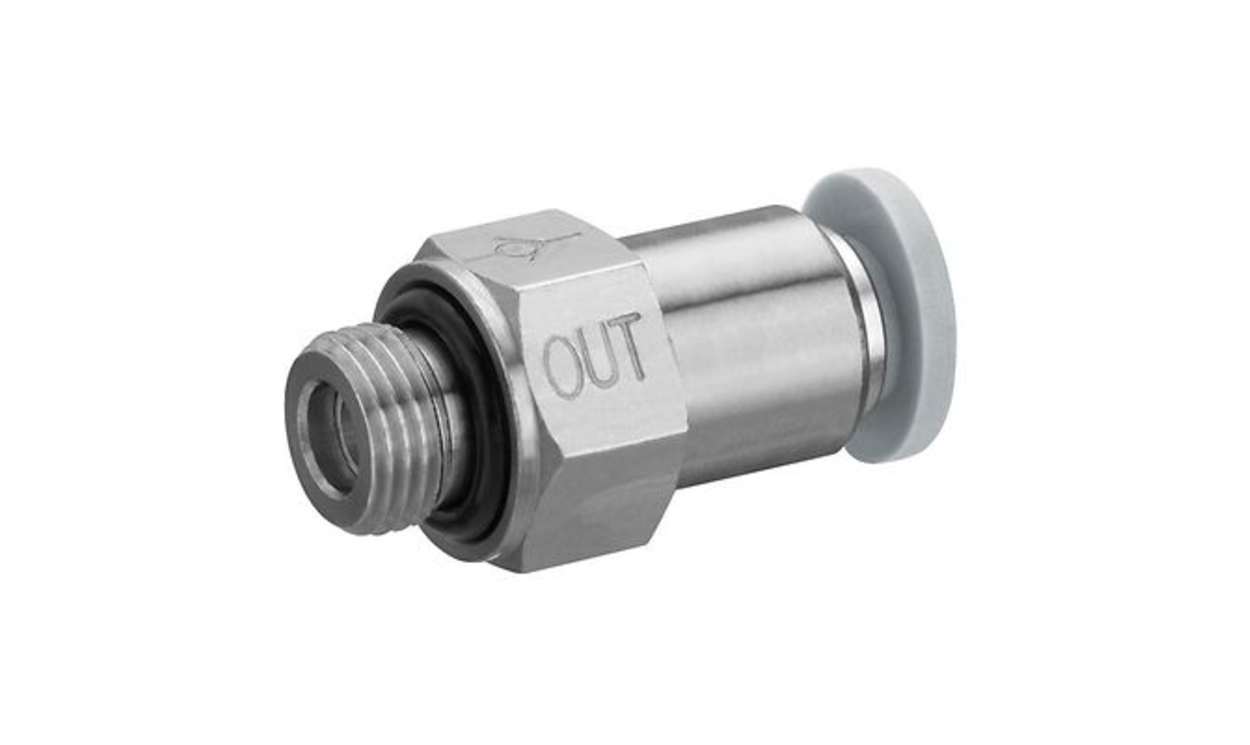

AVENTICS R412005569 | Pneumatic Non-Return Valve | G 1/4 F Inlet, G 1/4 M Outlet, 0.8 to 16 bar

Name: AVENTICS R412005569 | Pneumatic Non-Return Valve | G 1/4 F Inlet, G 1/4 M Outlet, 0.8 to 16 bar
Brand: Aventics
SKU: R412005569
Availability: OutOfStock

Part Number : R412005569

Listed for 0.8 to 16 bar, the AVENTICS R412005569 is a pneumatic non-return valve in the QR1-ANR series with a G 1/4 female inlet and G 1/4 male outlet.

Inlet: G 1/4 female
Outlet: G 1/4 male
Tube connection: 8 mm
Operating pressure: 0.8 to 16 bar
Series: QR1-ANR

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics Non-return valve are designed for safety relevant processes. The valves enable automatic blocking of the air supply to immediately stop the working stroke.

Poppet valve
Compressed air connection 1 is 8mm diameter
Compressed air connection 2 is G 1 by 4
Material release ring is polyamide

Brand	AVENTICS
Tube Inlet Connection	8mm
Inlet Connection Type	Threaded
Threaded Inlet Connection	G 1/4 Female
Outlet Connection Type	Threaded
Tube Outlet Connection	8mm
Manufacturer Series	QR1-ANR
Threaded Outlet Connection	G 1/4 Male
Operating Pressure Range	0.8 → 16bar

AVENTICS R412005569 | Pneumatic Non-Return Valve | G 1/4 F Inlet, G 1/4 M Outlet, 0.8 to 16 bar

DOWNLOAD CATALOG

R412005569 Datasheet - R412005569 A700000012803450
