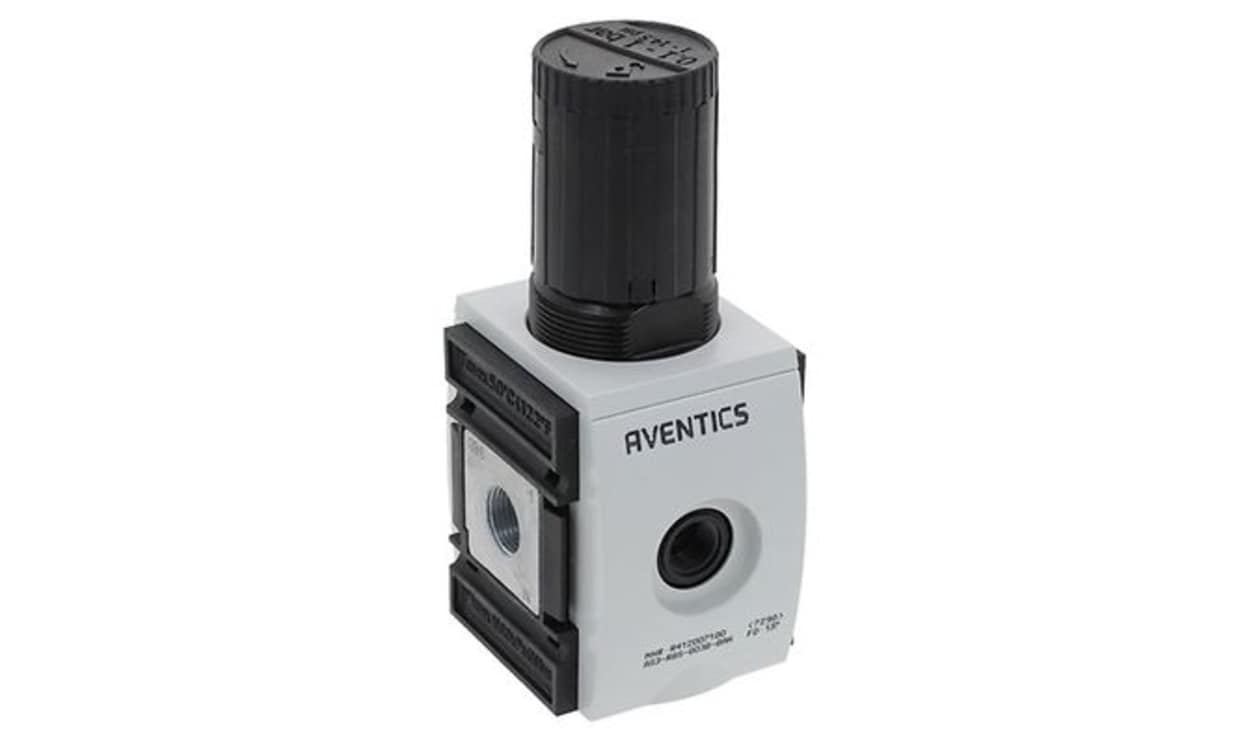

AVENTICS R412007106 | AS3-RGS Pressure Regulator | G 3/8, 4300 L/min
AVENTICS R412007106 belongs to the AS3-RGS regulator range, pairing G 3/8 ports with a maximum flow of 4300 L/min.
- Outlet pressure from 0.5 bar
- Port connection: G 3/8 (0.375 in)
- Flow up to 4300 L/min
- Temperature range -10 °C to +50 °C
- Series: AS3-RGS
- Detailed Description
- Specifications
- Downloads
Maximum regulation range 8 bar
Minimum working pressure 0.5 bar
Maximum working pressure 16 bar
| Brand | AVENTICS |
| Port Connection | G 3/8 |
| Maximum Outlet Pressure | 16bar |
| Minimum Outlet Pressure | 0.5bar |
| Maximum Input Pressure | 8bar |
| Manufacturer Series | AS3-RGS |
| Port Connection Thread Size | 0.375 in |
| Maximum Flow Rate | 4300L/min |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +50°C |
| Model Number p | R412007106 |
