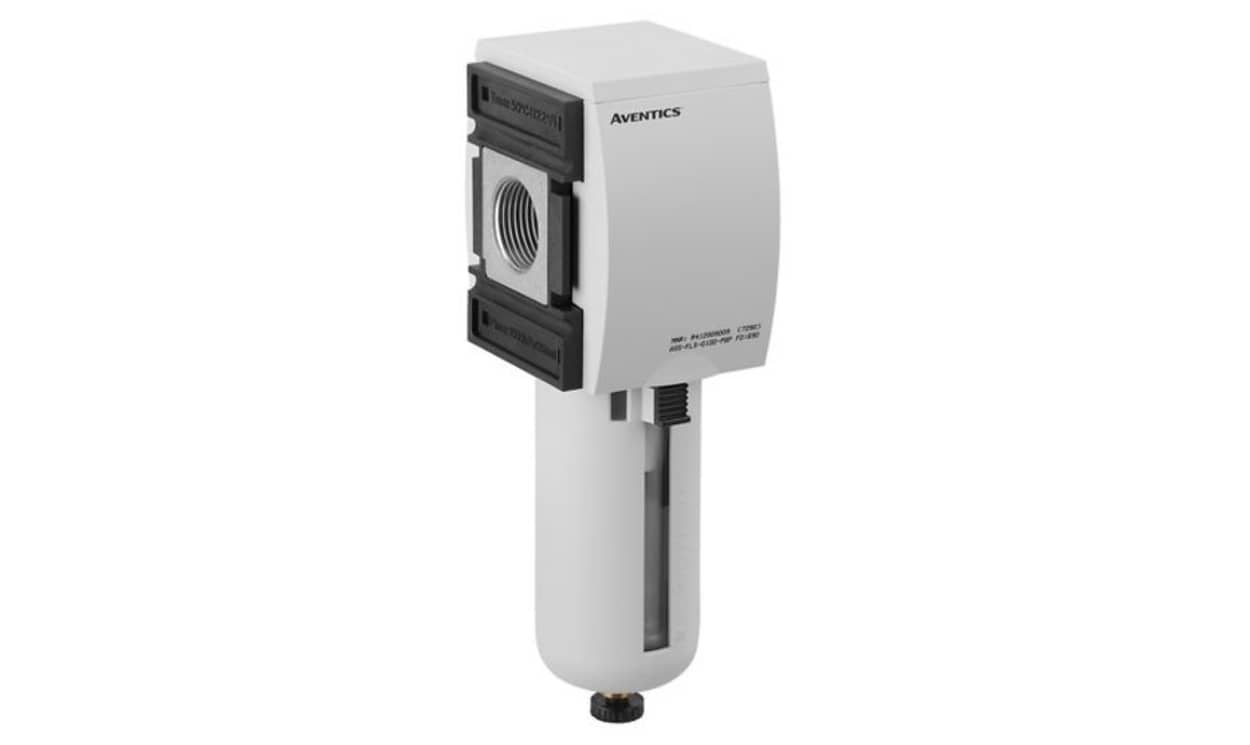

AVENTICS R412009012 | AS5 Series Filter | 40 µm, G 1, 7,800 L/min

Name: AVENTICS R412009012 | AS5 Series Filter | 40 µm, G 1, 7,800 L/min
Brand: Aventics
SKU: R412009012
Availability: OutOfStock

Part Number : R412009012

Part R412009012 is an AVENTICS AS5 filter for G 1 lines with a semi-automatic drain, 40 µm filtration and a 7,800 L/min maximum flow. It operates between 1.5 bar and 16 bar.

Port connection: G 1
Filtration size: 40 µm
Drain: semi-automatic
Operating pressure: 1.5 bar to 16 bar
Maximum flow rate: 7,800 L/min
Operating temperature: -10 °C to +50 °C

Availability: in stock

Detailed Description
Specifications

The Aventics Filter Series AS5 is a modular and versatile maintenance unit designed for universal applications. This series features compact dimensions, high efficiency, lightweight construction, and user-friendly design. It ensures reliability, safety, and efficiency while simplifying assembly and maintenance efforts.

Minimum working pressure 1.5 bar
Maximum working pressure 16 bar
Minimum ambient temperature -10 °C
Maximum ambient temperature 50 °C

Brand	AVENTICS
Filtration Size	40µm
Port Connection	G 1
Drain Type	Semi Automatic
Manufacturer Series	AS5
Maximum Flow Rate	7800L/min
Minimum Operating Pressure	1.5bar
Maximum Operating Pressure	16 bar
Maximum Operating Temperature	+50°C
Minimum Operating Temperature	-10°C
Bowl Material	Polycarbonate
