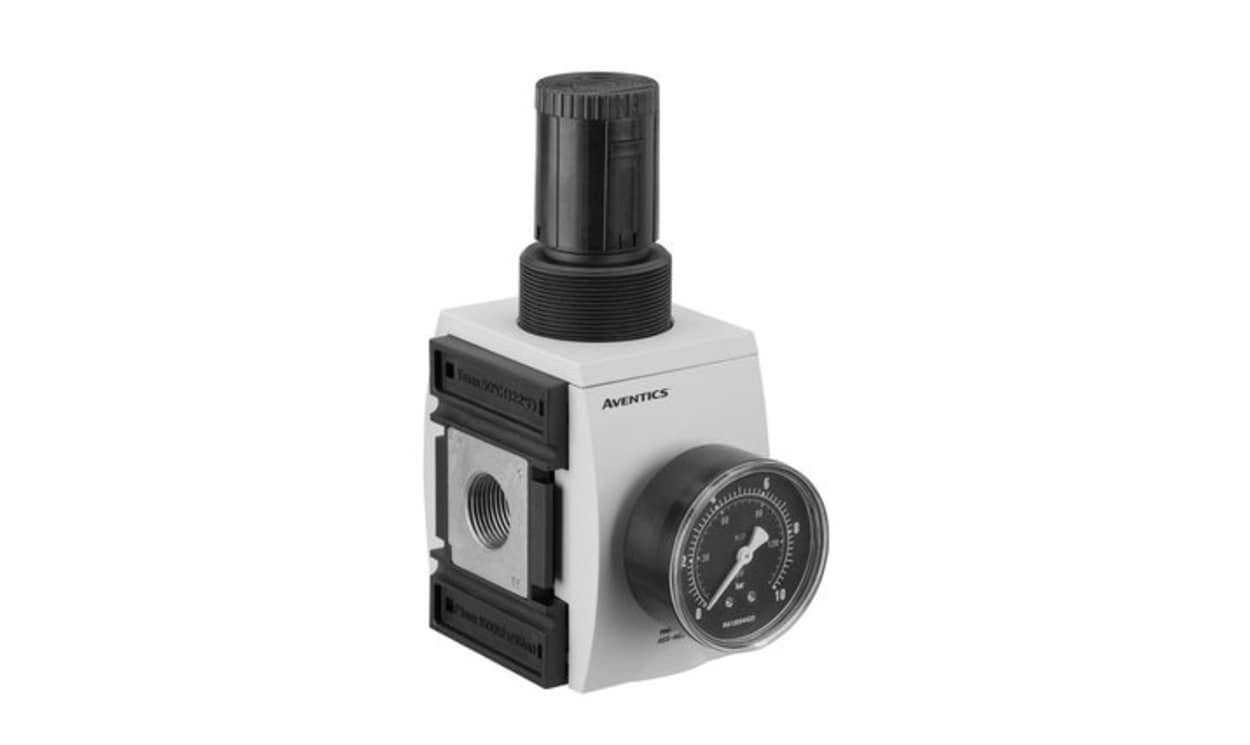

AVENTICS R412009111 G 3/4 Pneumatic Regulator - 0.5bar to 16bar, 3/4in, 16bar max. input
Part Number : R412009111
For pricing, please contact our experts.
- Detailed Description
- Specifications
- Downloads
AS Series Regulator plus Gauge
Diaphragm type pressure regulator with relieving air exhaust
Temperature range -10 → +50°C
Padlock lockable
ATEX Certified II 2G2D T4 X
Temperature range -10 → +50°C
Padlock lockable
ATEX Certified II 2G2D T4 X
AS Series FRL
The AS range of air preparation units may be used as single elements or in combination units using joining accessories
| Brand | AVENTICS |
| Port Connection | G 3/4 |
| Maximum Outlet Pressure | 16bar |
| Minimum Outlet Pressure | 0.5bar |
| Maximum Input Pressure | 16bar |
| Manufacturer Series | AS5-RGS |
| Pressure Gauge Port Size | G 1/4 |
| Port Connection Thread Size | 3/4in |
| Pressure Gauge Port Thread Size | 1/4in |
| Maximum Flow Rate | 14500L/min |
| Integral Check Valve | Without Check Valve |
| Port Connection Thread Standard | G |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +50°C |
| Pressure Gauge Port Thread Standard | G |
AVENTICS R412009111 G 3/4 Pneumatic Regulator - 0.5bar to 16bar, 3/4in, 16bar max. input
