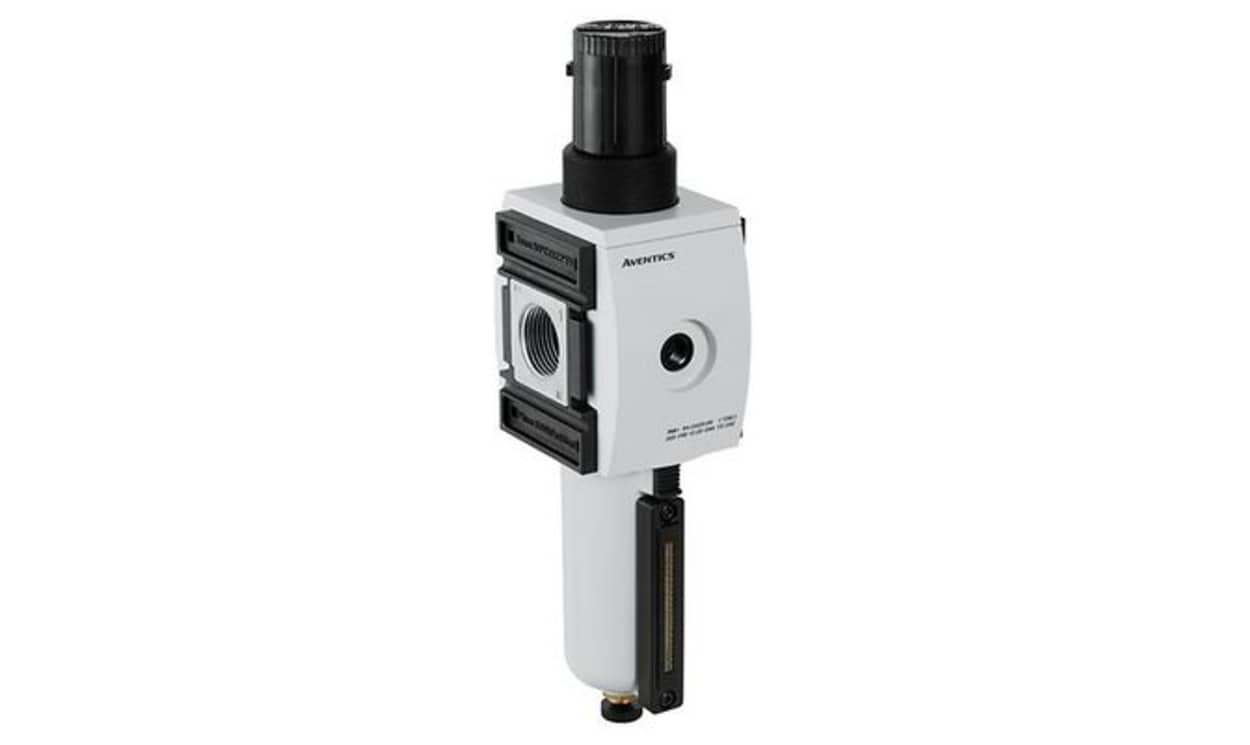

AVENTICS R412009222 | AS5 Filter Regulator | 40 µm, G 1, Automatic Drain

Name: AVENTICS R412009222 | AS5 Filter Regulator | 40 µm, G 1, Automatic Drain
Brand: Aventics
SKU: R412009222
Availability: OutOfStock

Part Number : R412009222

Part R412009222 is an AVENTICS AS5 filter regulator for G 1 lines, specified with an automatic drain and 40 µm filtration. Operating pressure runs from 1.5 bar to 16 bar.

Port connection: G 1
Filtration size: 40 µm
Drain: automatic
Operating pressure: 1.5 bar to 16 bar
Ambient temperature: -10 °C to +50 °C
Series: AS5

Availability: in stock

Detailed Description
Specifications

The Aventics Filter pressure regulator, Series AS5-FRE is a modular and versatile maintenance unit for universal application. This series offers compact dimensions, high efficiency, light weight, and ease of use. The Series AS guarantees reliability, safety, and efficiency with simplified assembly and maintenance efforts.

Minimum working pressure 1.5 bar
Maximum working pressure 16 bar
Minimum ambient temperature -10 °C
Maximum ambient temperature 50 °C
Minimum regulation range 0.5 bar
Maximum regulation range 10 bar

Brand	AVENTICS
Port Connection	G 1
Maximum Operating Pressure	16 bar
Manufacturer Series	AS5
Drain Type	Automatic
Filtration Size	40µm
Maximum Ambient Operating Temperature	+50°C
Minimum Operating Pressure	1.5bar
Model Number	R412009222
Ambient Operating Temperature Range	-10 → 50°C
Minimum Ambient Operating Temperature	-10°C
