AVENTICS R422001304 Pneumatic Compact Cylinder - , 25mm Bore, 25mm Stroke, CCI Series, Double Acting

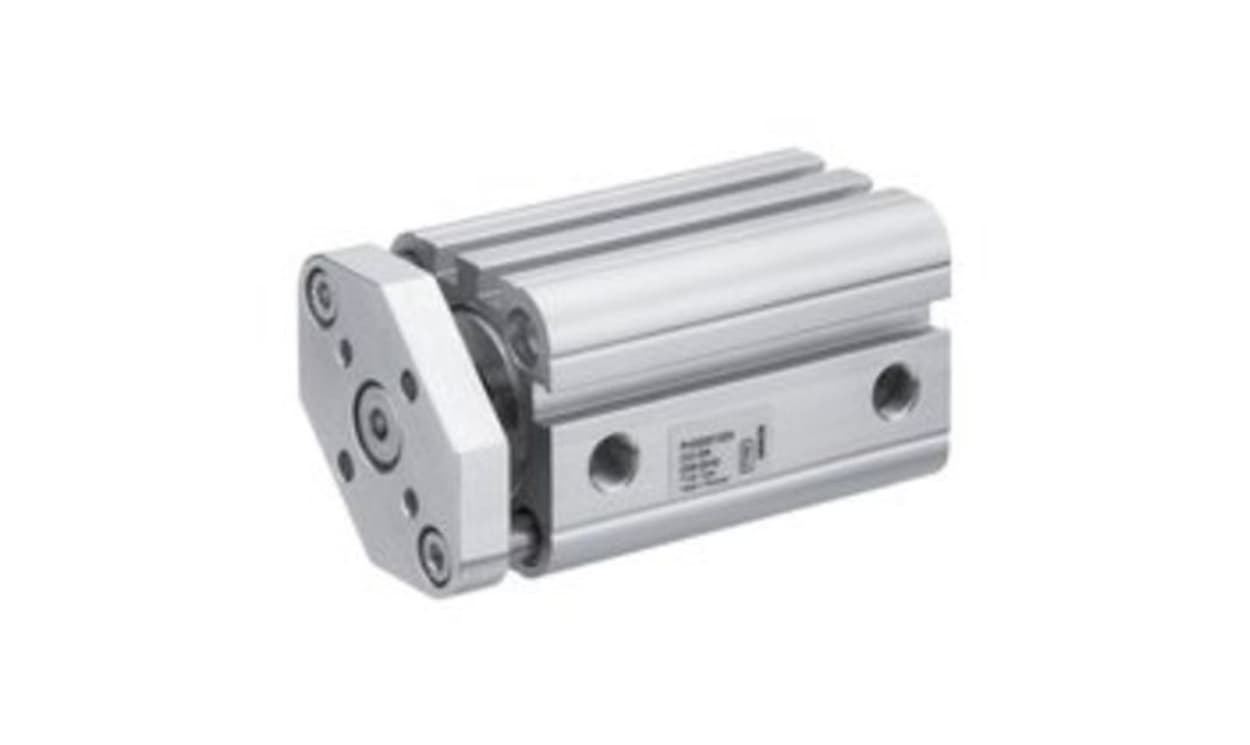

Name: AVENTICS R422001304 Pneumatic Compact Cylinder - , 25mm Bore, 25mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001304
Availability: OutOfStock

Part Number : R422001304

Availability: Sold out

Detailed Description
Specifications

The Aventics compact cylinder from aventics is engineered to meet the demands of modern industrial applications, combining cutting-edge design with robust functionality. The Series CCI cylinders, compliant with ISO 21287 standards, exemplify efficiency with their innovative structure that facilitates easy maintenance and cleaning. Designed for extended strokes, the Series CCI is perfect for situations that require fast cycle times and the ability to handle substantial moving masses. With a comprehensive range of installation options for sensors and adaptable dimensions, these cylinders offer flexibility and performance tailored to specific user needs. Additionally, the cylinder's materials have been selected for durability, ensuring long-lasting operation in diverse environmental conditions.

Optimised for industrial applications with a double-acting functional principle
Includes elastic cushioning for improved shock absorption
Manufactured with a stainless steel piston rod for enhanced strength
Constructed from aluminium and polyurethane for reduced weight without compromising durability
Capable of operating in temperatures ranging from -20 °C to 80 °C
Offers a dynamic weight variant based on stroke length for tailored performance
Complies with ATEX standards as an optional feature for hazardous environments
Standard industry scraper included to maintain optimal performance
Advanced pressure resistance up to 10 bar ensures reliability in high-pressure situations

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001304
Stroke	25mm
Bore	25mm
Action	Double
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
