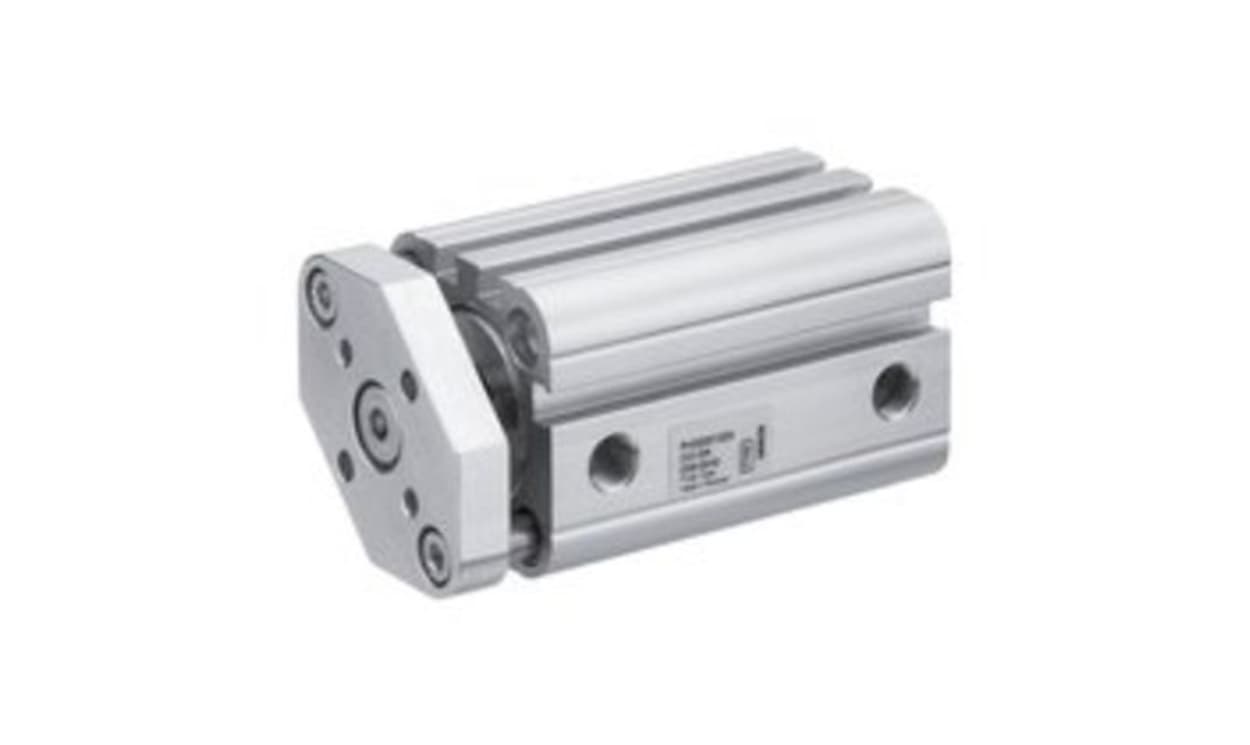

AVENTICS R422001310 Pneumatic Compact Cylinder - , 100mm Bore, 25mm Stroke, CCI Series, Double Acting

Name: AVENTICS R422001310 Pneumatic Compact Cylinder - , 100mm Bore, 25mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001310
Availability: OutOfStock

Part Number : R422001310

Availability: Sold out

Detailed Description
Specifications
Downloads

The Aventics compact cylinder, compliant with ISO 21287 standards, merges innovation with practical design, tailored for enhanced performance in industrial applications. With its robust engineering, the AVENTICS Series CCI offers optimal cycle times and accommodates significant moving masses, ensuring reliability in demanding environments. Designed for quick installation of sensors across the entire length, this cylinder facilitates maintenance and operational efficiency. The elastic cushioning and double-acting functionality enhance its versatility, making it suitable for a variety of applications while adhering to strict environmental and performance standards.

Utilises a double-acting functional principle for consistent performance
Incorporates elastic cushioning for smooth operation
Offers a maximum stroke length of 500 mm for versatile applications
Constructed from high-quality aluminium, ensuring lightweight durability
Stainless steel piston rod is resistant to wear and tear
Equipped with a non-rotating piston rod for improved stability during operation
Allows easy adaptation with sensors installed effortlessly on all sides
Maintains high-performance standards with a working pressure range up to 10 bar
Suitable for a wide temperature range, enhancing operational flexibility in various environments
Designed with an optional ATEX certification for use in potentially explosive atmospheres

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001310
Bore	100mm
Stroke	25mm
Action	Double
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C

AVENTICS R422001310 Pneumatic Compact Cylinder - , 100mm Bore, 25mm Stroke, CCI Series, Double Acting

DOWNLOAD CATALOG

R422001310 Datasheet - R422001310 A700000012576336

R422001310 Datasheet - R422001310 A700000012580663
