AVENTICS R480041448 ISO Standard Cylinder - , 50mm Bore, 200mm Stroke, PRA Series, Double Acting

Name: AVENTICS R480041448 ISO Standard Cylinder - , 50mm Bore, 200mm Stroke, PRA Series, Double Acting
Brand: Aventics
SKU: R480041448
Availability: OutOfStock

Part Number : R480041448

Availability: Sold out

Detailed Description
Specifications

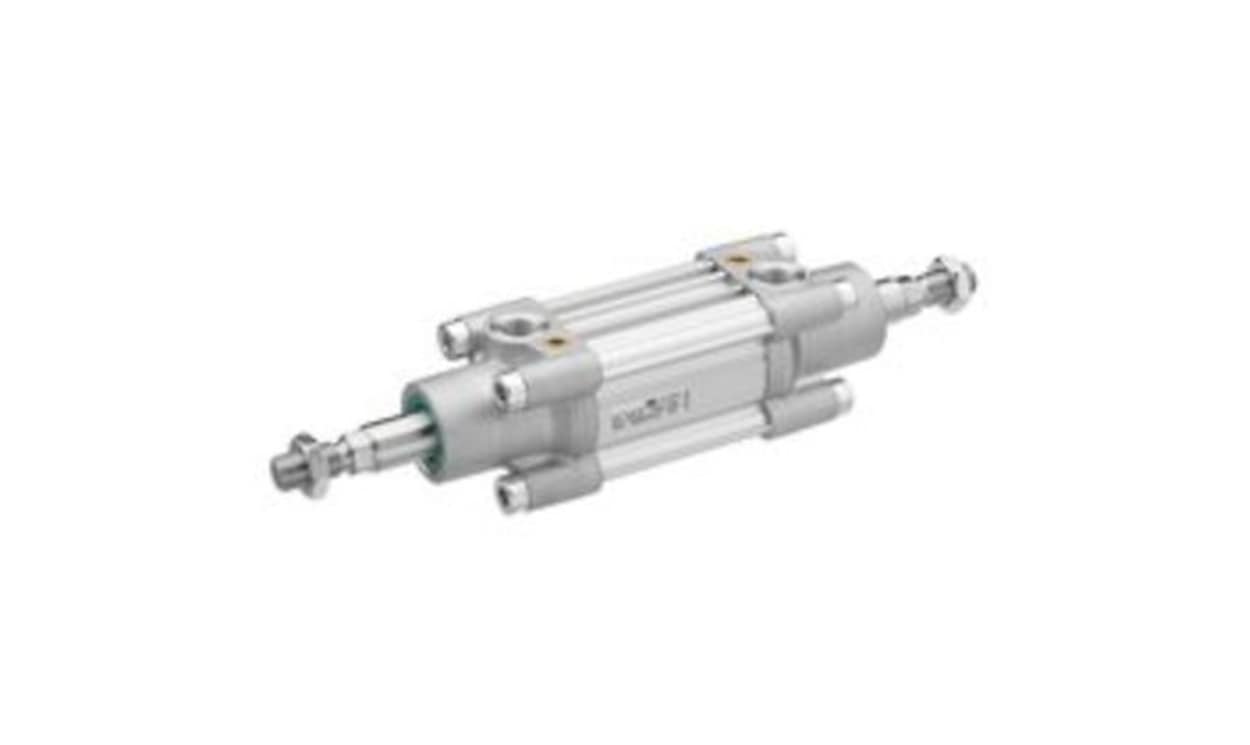

The Aventics Profile Cylinder from the ISO 15552 PRA series boasts a compact design complemented by integrated sensor slots, making it a versatile choice for various industrial applications. The double-acting cylinder is engineered for reliability within general automation, machine construction, and specific industry needs. The product's construction involves high-grade materials, ensuring durability and functionality under varying conditions, all while adhering to critical industry standards.

Compact design optimised for integration with sensors
Versatile application suitability across various industries
Adjustable pneumatic cushioning for enhanced performance
Temperature resilience allows optimum operation
Low maintenance requirements reduce operational downtime
Designed for easy incorporation into existing setups

Brand	AVENTICS
Manufacturer Series	PRA
Model Number p	R480041448
Stroke	200mm
Bore	50mm
Action	Double
Pneumatic Connection	G 1/4
Port Connection	G 1/4
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
