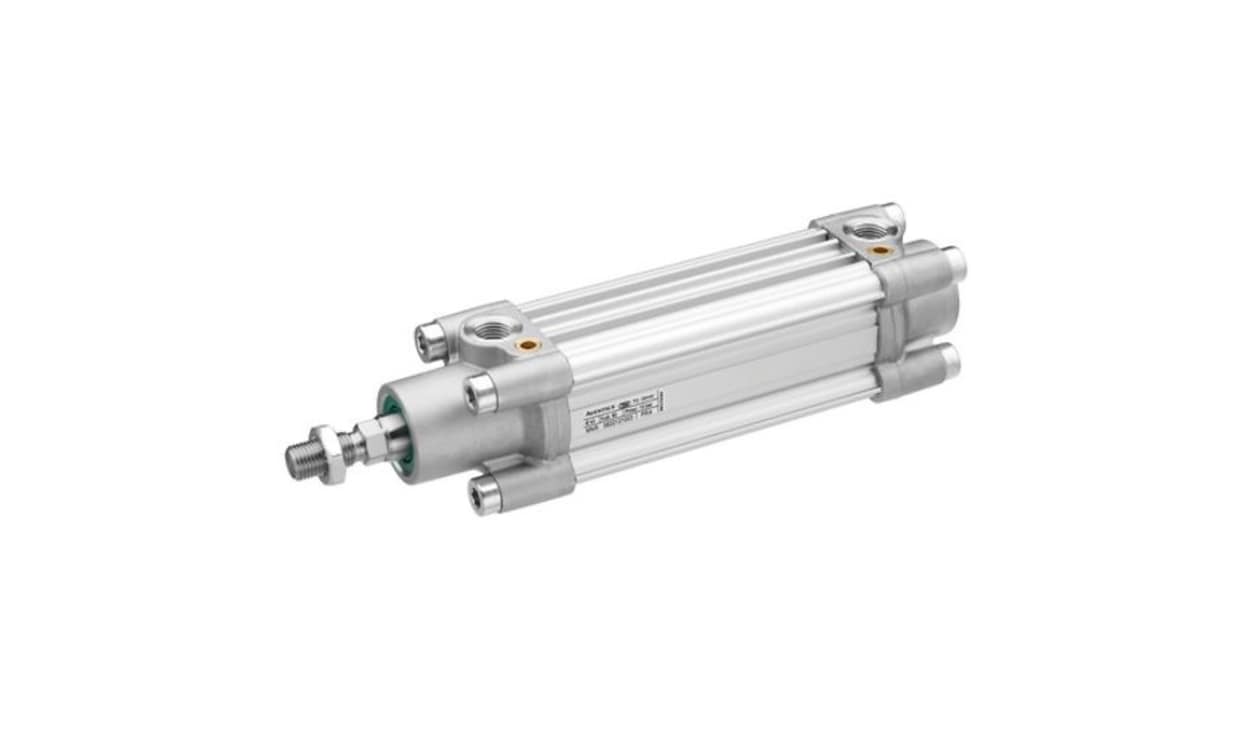

AVENTICS R480079809 ISO Standard Cylinder - , 125mm Bore, 160mm Stroke, PRA Series, Double Acting
- Detailed Description
- Specifications
- Downloads
Double-acting functionality enhances efficiency in operation
Integrated sensor slots allow for easy monitoring and control
Pneumatic adjustable cushioning protects against mechanical wear
Wide operational temperature range accommodates diverse environments
Available ATEX certification for use in potentially explosive atmospheres
Robust materials ensure long-lasting performance and durability
Minimal oil content requirements lead to reduced maintenance frequency
Flexible stroke length up to 2750 mm addresses various application needs
Lightweight design simplifies installation and handling
| Brand | AVENTICS |
| Manufacturer Series | PRA |
| Model Number p | R480079809 |
| Action | Double |
| Stroke | 160mm |
| Bore | 125mm |
| Port Connection | G 1/2 |
| Pneumatic Connection | G 1/2 |
| Piston Rod Thread Gender | Male |
| Cushioning Type | Pneumatic Cushioning |
| Maximum Operating Pressure | 10 bar |
| ISO Standard | 15552 |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +80°C |
