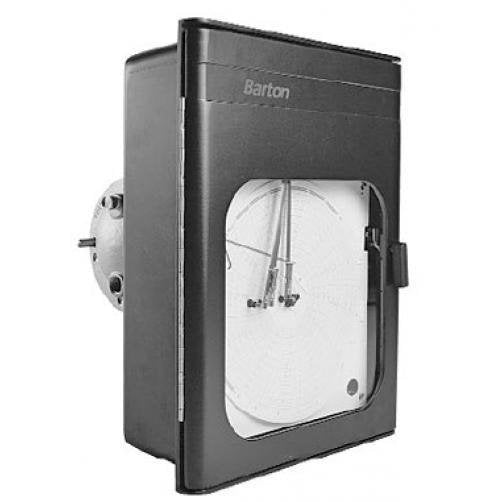

Barton 242E/150 Psi/Mechanical | Single Pen Pressure Recorder | Model 242E | Pressure Range: 0-150 Psi | Mechanical Chart Drive: 24 HRs/7 Days
Model 242E · 0–150 psi
Genuine Barton 242E 0–150 psi single-pen pressure recorder, in stock at General Tech Services LLC, UAE. It provides a permanent paper record of pressure on a standard 12-inch circular chart, with a 316 stainless steel pressure element rated 0–150 psi and a mechanical 24-hour/7-day chart drive. Free UAE shipping.
Request a quote in under a minute - call +971 6 543 6933.
The Barton Model 242E is a field recorder designed for continuous pressure recording on a 12-inch (300 mm) circular chart. This configuration measures 0–150 psi and records pressure continuously on the same chart. A single red pen traces pressure across the chart, providing a clear record for pressure-only applications where temperature measurement is not required.
The mechanical chart drive rotates the chart over 24 hours or 7 days without batteries or external power, making it suitable for remote installations and longer monitoring periods. Inside the die-cast aluminium case, stainless steel linkage and construction techniques provide good linearity, low hysteresis and a long service life. Disposable felt-tip pens simplify chart changes, while the 2-inch pipe mount allows installation at the measurement point.
Ready to order the Barton 242E 0–150 psi recorder? Speak to our team. Call +971 6 543 6933
Key Benefits
-
Provides documented pressure records for test certificates, audits and client sign-off
-
0–150 psi range with a 316 stainless steel pressure element for corrosion resistance in oil, gas and water service
-
Single-pen layout keeps pressure-only records simple, clean and easy to read
-
24 HR / 7 DAY mechanical chart drive operates without batteries or mains power
-
Die-cast aluminium case with stainless steel linkage for long field service
-
Standard 12-inch (300 mm) circular charts and disposable felt-tip pens
-
Standard 2-inch pipe mount for installation at the wellhead, skid or test point
Who This Product Is Best For
-
Operators and contractors working on gas distribution and metering stations
-
Engineers responsible for utility water mains and pump discharge lines
-
Maintenance and testing teams handling compressed-air headers and blower systems
-
Plants and sites running boiler feed and HVAC circuits or low-pressure process and tank lines
-
QA/QC and HSE teams who need a signed, physical record for compliance files
How to Specify & Commission It
-
Mount the recorder on a 2-inch pipe at the test or measurement point and connect the pressure line to the 316 stainless steel pressure element.
-
Load a 12-inch (300 mm) circular chart rated for 0–150 psi, then fit the disposable felt-tip pen.
-
Wind the mechanical clock, set it for 24-hour or 7-day rotation, and align the pen with the correct time line.
-
Pressurise the system, allow the recorder to trace the test, then remove, sign and file the chart as the permanent record.
Frequently Asked Questions
What does the Barton 242E 0–150 psi recorder measure?
It records pressure from 0 to 150 psi on a single red pen, continuously traced on a 12-inch circular chart.
Does this recorder need batteries or external power?
No. The chart is turned by a mechanical clock with 24-hour and 7-day rotation, so it operates without batteries or mains power.
What applications is a 0–150 psi chart recorder used fo
