Brannan 09/151/0 | ASTM Soil Hydrometer | 151H, 0.995 to 1.038 °SG, 0.001 division

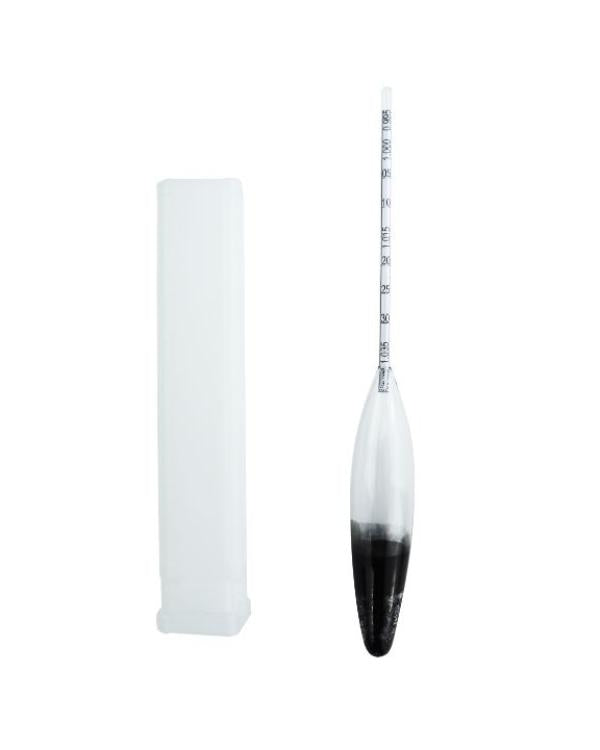

Brannan 09/151/0 is the ASTM 151H soil hydrometer, reading 0.995 to 1.038 °SG in 0.001 divisions and adjusted at 68 °F. Hydrometers of this type measure suspended solids in sedimentation cylinders and are used in hydrometer analysis of soils to test the distribution of particle size; it is part of Brannan's ASTM E 100 hydrometer range.
Key features
- For hydrometer analysis of soil particle size
- Adjusted at 68 °F
- Soda glass, steel shot ballast, synthetic wax resin
- 30 mm bulb diameter
- Supplied in a protective, resealable plastic tube
- Made in UK
Brannan can supply this hydrometer with UKAS certification, a certificate traceable to a recognised national standard or a statement of conformity.
- Specifications
- Downloads
| Part Number | 09/151/0 |
| Brand | Brannan |
| ASTM number | 151H |
| Range | 0.995 to 1.038°SG |
| Division | 0.001 |
| Specification | ASTM E 100 |
| Adjusted at | 68°F |
| Material | Soda glass, steel shot ballast, synthetic wax resin |
| Bulb diameter | 30mm |
| Approx weight | 111g (incl. 45g protective plastic tube) |
