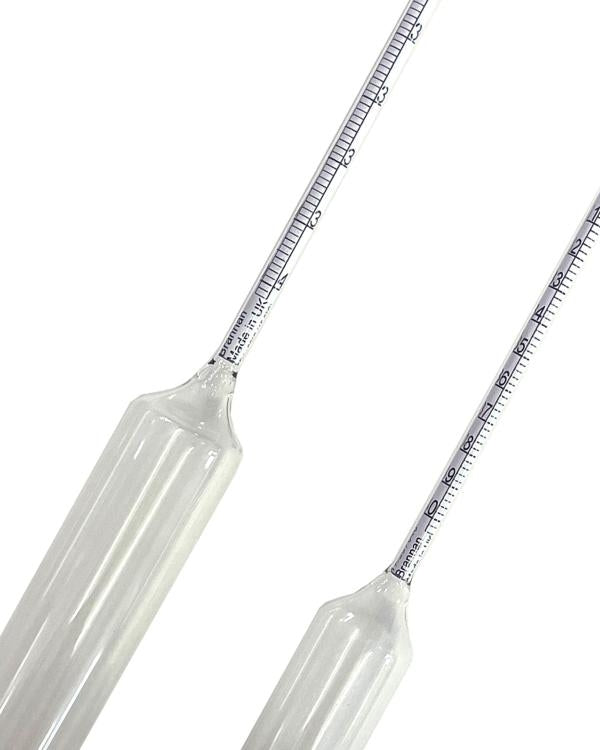

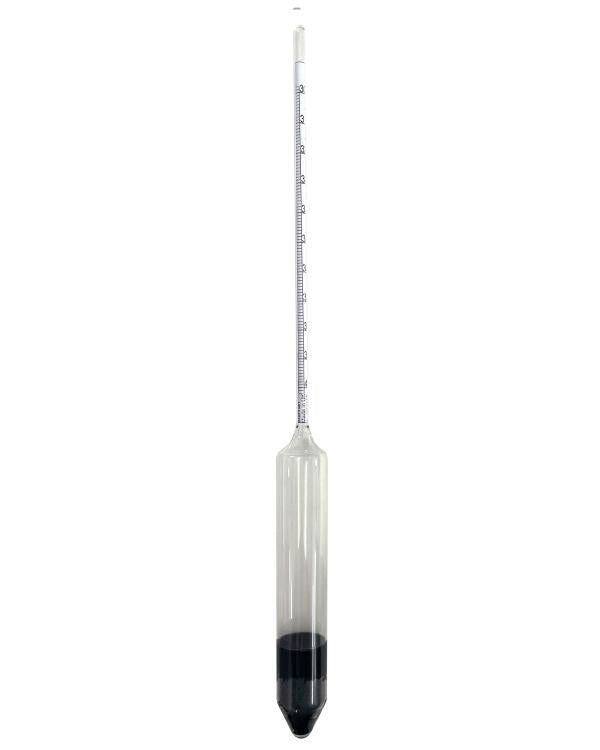

Brannan 10/253/0 | Brix Hydrometer | 30 to 40 Brix, 300 mm
Covering 30 to 40 Brix, Brannan 10/253/0 measures the percentage of sugar and is widely used by grape growers and commercial wineries. Its 30 to 40 Brix scale has 0.1 divisions and ±0.2 accuracy. Brannan adjusts the 30 to 40 Brix model at 15.6 °C (60 °F) for 55 mN/m surface tension, and its Brix reading equates to Balling and Plato.
Key features
- Reads 30 to 40 Brix in 0.1 divisions
- Accuracy ±0.2 across 30 to 40 Brix
- 10/253/0: 300 mm maximum length, 22 mm bulb
- 10/253/0 weighs about 71 g with its protective plastic tube
- 10/253/0 made in the UK from soda glass
- UKAS or traceable certificate available on the 10/253/0
- Specifications
- Downloads
| Part Number | 10/253/0 |
| Brand | Brannan |
| Scale | Brix (percentage sugar) |
| Range | 30 to 40 Brix |
| Divisions | 0.1 |
| Accuracy | ±0.2 |
| Equivalent Scales | Balling, Plato |
| Adjusted At | 15.6 °C (60 °F) |
| Surface Tension | 55 mN/m |
| Max Length | 300 mm |
| Bulb Diameter | 22 mm |
| Weight | 71 g (incl. protective tube) |
| Calibration Options | UKAS, traceable certificate or statement of conformity |
| Country of Manufacture | UK |
Related Products
Brannan 10/468/5 | BS 718 S60/60F L50 SP Hydrometer | SG 1.00 to 1.05, 335 mm, low surface tension
Brannan 10/468/5 | BS 718 S60/60F L50 SP Hydrometer | SG 1.00 to 1.05, 335 mm, low surface tension
Brannan 10/467/5 | BS 718 S60/60F L50 SP Hydrometer | SG 0.95 to 1.00, 335 mm, low surface tension
Brannan 10/467/5 | BS 718 S60/60F L50 SP Hydrometer | SG 0.95 to 1.00, 335 mm, low surface tension

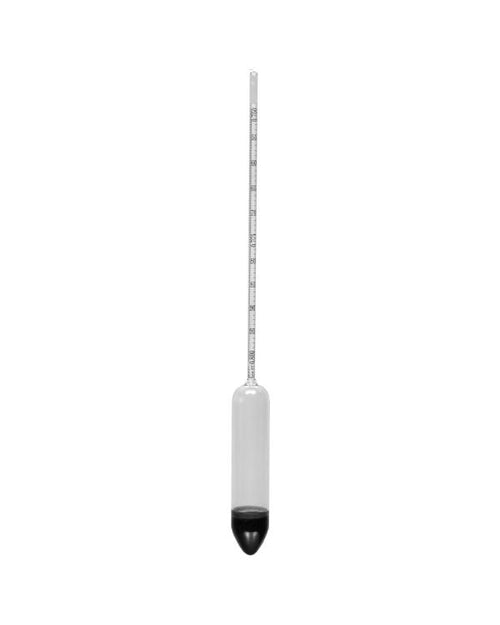

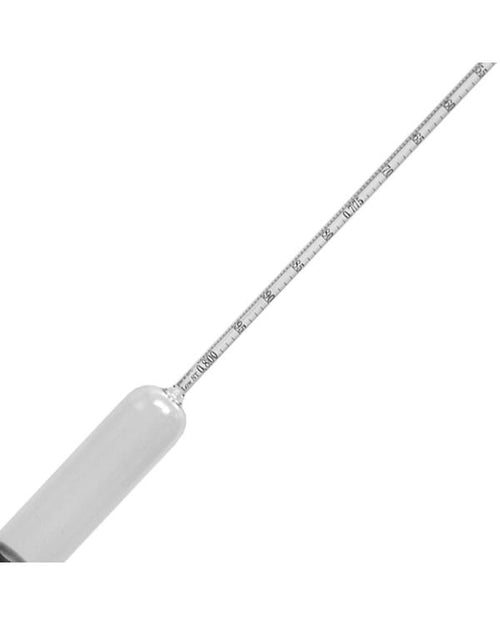

Brannan 10/469/5 | BS 718 S60/60F L50 SP Hydrometer | SG 1.05 to 1.10, 335 mm, low surface tension
