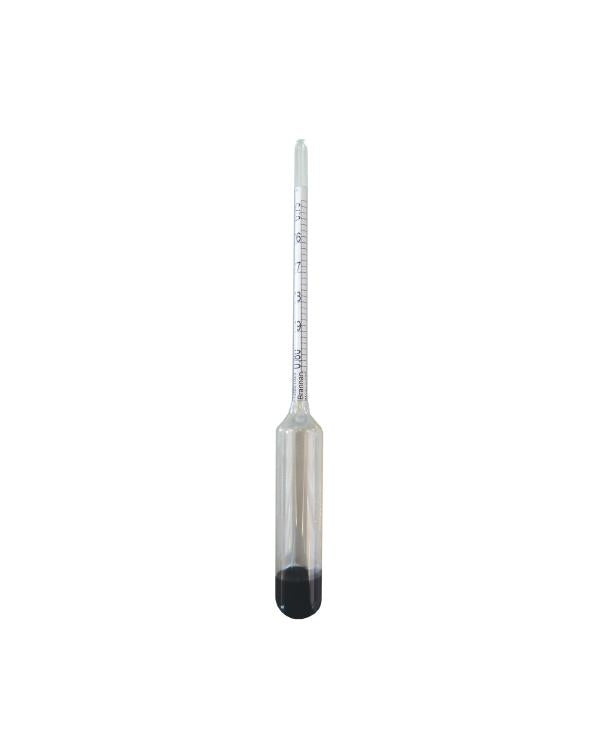

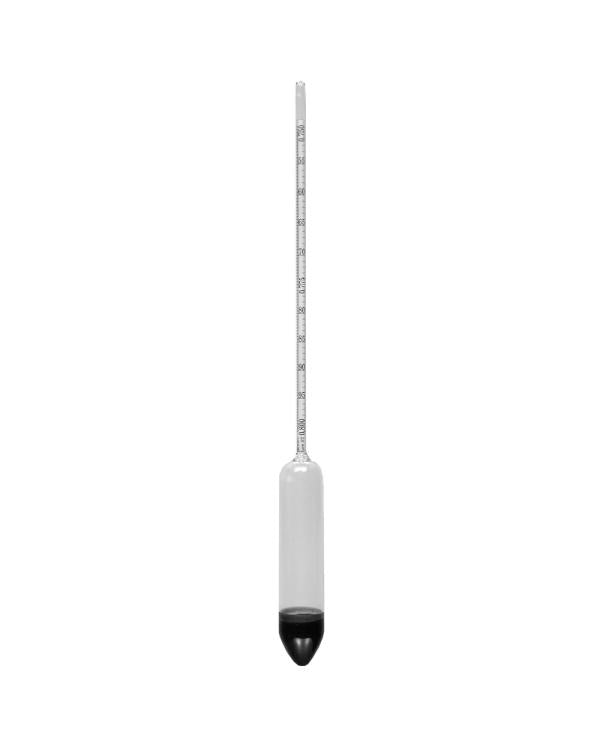

Brannan 10/325/0 | BS 718 S50 Density Hydrometer | 1.85–1.90 g/ml, 190 mm
Brannan 10/325/0 is the 1.85 to 1.90 g/ml range in the S50 density hydrometer series made to BS 718:1991. Reading 1.85–1.90 g/ml in 0.002 g/ml steps, this 190 mm hydrometer is adjusted at 20 °C. Brannan makes the 10/325/0 in the UK and ships it in a protective, resealable plastic tube.
Key features
- Range 1.85 to 1.90 g/ml
- 0.002 g/ml divisions over a 0.050 g/ml span
- 190 mm overall length, 18–20 mm bulb diameter
- Adjusted at 20 °C
- Soda glass with steel shot ballast and synthetic wax resin
- Made in the UK, supplied in a resealable protective tube
Brannan can supply the 10/325/0 with UKAS certification, a certificate traceable to a recognised national standard, or a statement of conformity.
- Specifications
- Downloads
| Part Number | 10/325/0 |
| Brand | Brannan |
| Series | S50 |
| Standard | BS 718:1991 (generally aligned with ISO 387 and ISO 649) |
| Density Range | 1.85–1.90 g/ml |
| Range Span | 0.050 g/ml |
| Divisions | 0.002 g/ml |
| Overall Length | 190 mm |
| Bulb Diameter | 18–20 mm |
| Approx. Weight | 35 g (incl. 9 g protective tube) |
| Adjustment Temperature | 20 °C |
| Material | Soda glass, steel shot ballast, synthetic wax resin |
| Country of Manufacture | UK |
| Packaging | Protective resealable plastic tube |
