Brannan 22/103/2 | Batch Sampling Thermometer, Refrigerator | -5 to +20 °C

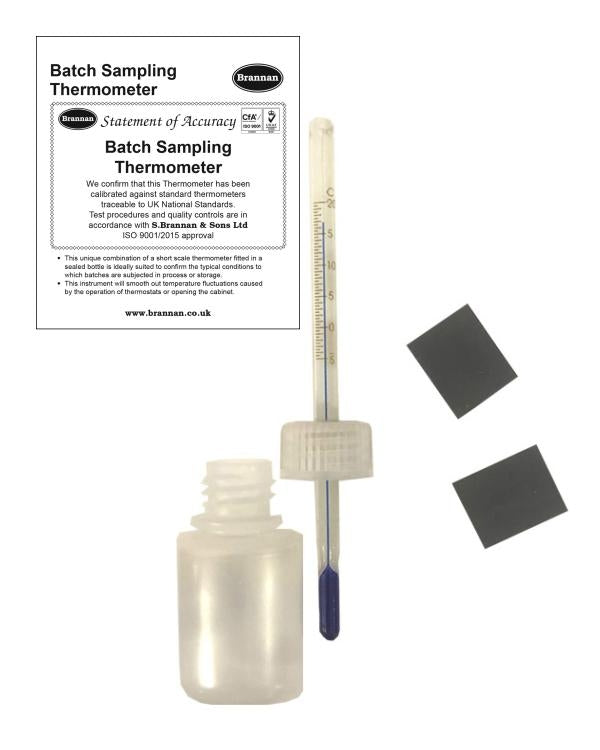

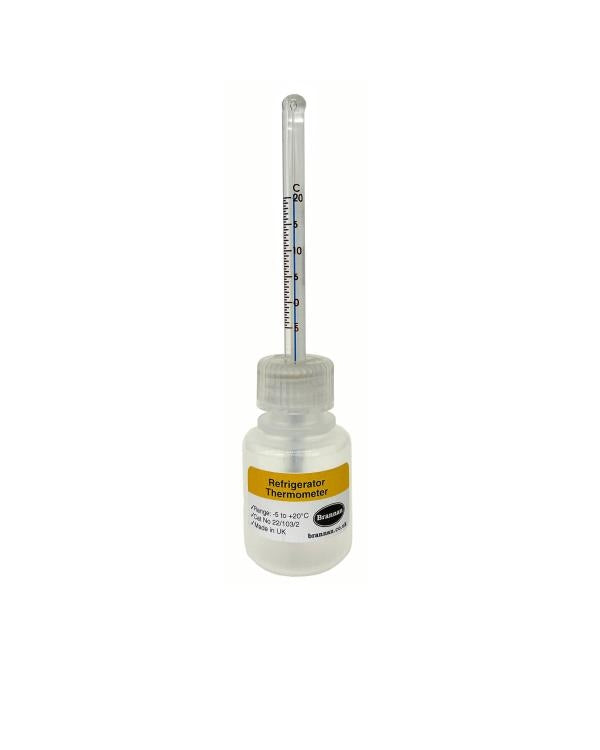

Part 22/103/2 is the refrigerator model in Brannan's batch sampling thermometer series, with a -5 to +20 °C scale, 0.5 °C divisions and ±0.7 °C accuracy. Sealing the test thermometer in a 30 ml polypropylene bottle lets it hold a temperature close to the refrigerated samples, so opening the fridge door or normal thermostat cycling has little effect on what you read. Charge the bottle with monopropylene glycol or a comparable heat transfer medium before use.
Key features
- Refrigerator range -5 to +20 °C
- Reads to ±0.7 °C in 0.5 °C steps
- Precision thermometer inside a 30 ml polypropylene bottle
- Clear-reading LO-tox blue filling, mercury-free
- Statement of accuracy supplied; made in England
- Specifications
- Downloads
| Part Number | 22/103/2 |
| Brand | Brannan |
| Application | Refrigerator |
| Temperature Range | -5 to +20 °C |
| Accuracy | ±0.7 °C |
| Divisions | 0.5 °C |
| Bottle | 30 ml polypropylene |
| Filling | LO-tox (mercury-free) |
| Heat Transfer Medium | Monopropylene glycol or similar, added before use |
| Net Dimensions | 145 mm x 35 mm dia. |
| Net Weight | 55.5 g |
| Supplied With | Statement of accuracy |
| Country of Manufacture | England |
| EAN | 5011405221032 |
