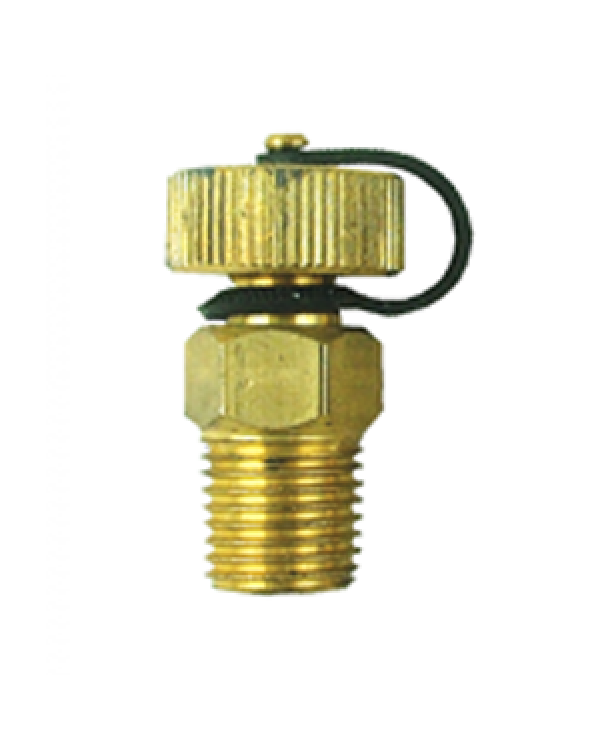

Brannan 39/308/1 | Self-Sealing Test Plug | 1/4" BSPT M, SS316
Part Number : 39/308/1
Brannan 39/308/1 is a self-sealing industrial test plug with a 1/4" BSPT male connection, with body, cap and retaining ring in stainless steel 316. It gives quick access for temperature and pressure checks on low pressure water systems, and the self-sealing core minimises the risk of leaks during testing. It suits low temperature hot water, chilled water and low temperature steam, but not medium or high temperature hot water, oils, other hydrocarbon fluids or hazardous pressure media.
Key features
- Maximum pressure 35 bar (500 psi)
- Temperature range -10 to +120 °C
- Accepts probes up to 4 mm diameter
- Neoprene cap seal, ethylene propylene rubber core and retaining strap
- Available in a range of connections and lagging extensions
For pricing, please contact our experts.
