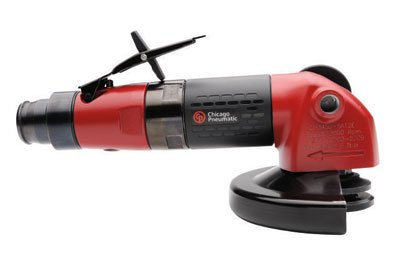

Chicago Pneumatic CP3450-12AC45 | Pneumatic Angle Grinder | 4.5 in wheel, 810 W
Taking 4.5 in wheels, the Chicago Pneumatic CP3450-12AC45 air angle grinder is rated at 810 W (1.1 hp) and runs at 12,000 rpm. This light-bodied industrial grinder targets high productivity and allows up to 1,000 hours between maintenance.
- Net weight 1.42 kg (3.12 lb), length 230.5 mm (9.22 in)
- 3/8 in air inlet, minimum hose 10 mm, free speed air consumption 18 l/s (38.16 cfm)
- Actual air consumption: 17 l/s (36.04 cfm)
- Sound pressure 93.8 dB(A), vibration 8.33 m/s²
- Manufacturer product number 6151604030
- Specifications
- Features
| Part Number | CP3450-12AC45 |
| Brand | Chicago Pneumatic |
| Wheel size | 4.5 in |
| Power | 810 W (1.1 hp) |
| Free speed | 12,000 rpm |
| Net weight | 1.42 kg (3.12 lb) |
| Length | 230.5 mm (9.22 in) |
| Air inlet thread | 3/8 in |
| Min. hose size | 10 mm (3/8 in) |
| Air consumption (free speed) | 18 l/s (38.16 cfm) |
| Air consumption (actual) | 17 l/s (36.04 cfm) |
| Sound pressure level | 93.8 dB(A) |
| Vibration | 8.33 m/s² |
| Manufacturer product number | 6151604030 |
- Constant lubrication bevel gear design
- Low profile angle head design
- Insulating composite cover
- 4,5" (115 mm) wheel capacity
- 1.1 hp (810 W) high torque motor
- 12,000 rpm free speed
- 3/8" spindle
- Aluminium body
- Orientable safety lever
- Optional low vibration side handle
- Rear exhaust
