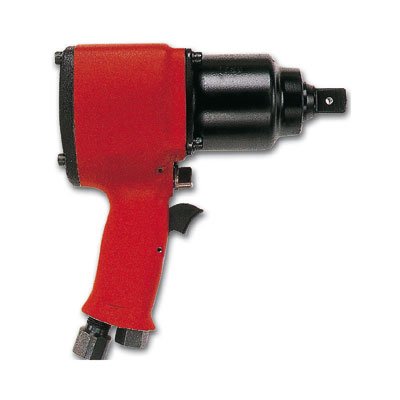

Chicago Pneumatic CP6060 SASAK | Compact Industrial Impact Wrench | 1" Drive, 265–880 Nm
Rated for 265–880 Nm (195–650 ft.lbs), the CP6060 SASAK is a 1" compact industrial impact wrench from Chicago Pneumatic. A compact, lightweight 1" tool for breaking big bolts in industrial maintenance and production.
- 2-jaw clutch gives constant, progressive torque
- Ergonomics for control at high torque levels
- Reliable mechanism and durable housing
- Maximum reverse torque: 1356 Nm (1000 ft.lbs); free speed 3500 rpm
- Net weight 5.4 kg (11.9 lb), length 220 mm (8.6 in); listed bolt size M25
- Air inlet thread 3/8"; actual air consumption 19.8 l/s (42 cfm)
- Specifications
- Features
| Part Number | CP6060 SASAK |
| Brand | Chicago Pneumatic |
| Square Drive | 1" |
| Working Torque Range | 265–880 Nm (195–650 ft.lbs) |
| Maximum Torque (Reverse) | 1356 Nm (1000 ft.lbs) |
| Free Speed | 3500 rpm |
| Bolt Size | M25 |
| Net Weight | 5.4 kg (11.9 lb) |
| Length | 220 mm (8.6 in) |
| Air Inlet Thread | 3/8" |
| Air Consumption (Actual) | 19.8 l/s (42 cfm) |
| Product Number | T024060 |
| Sound Pressure | 95 dB(A) |
| Vibration | 14.2 m/s² |
- Super Industrial lightweight 1" impact wrench
- Reliable 2-jaw clutch
- Aluminum body & steel clutch housing
- Durable reverse & steel trigger
- Compact 3-part construction & easy maintenance
- Hole type socket retainer with O-Ring
