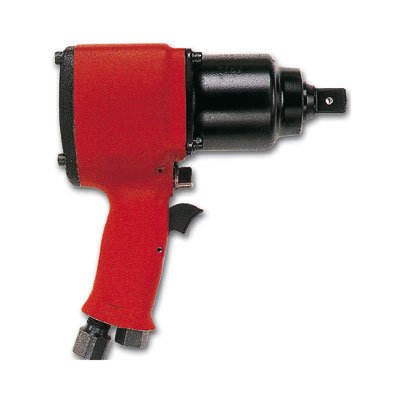

Chicago Pneumatic CP6060 ZASAK | Spark-Resistant Impact Wrench | 1" Drive, 265–880 Nm
Chicago Pneumatic's CP6060 ZASAK spark-resistant impact wrench has a 1" square drive and works across 265–880 Nm (195–650 ft.lbs). This spark-resistant version is intended for explosive environments in oil, gas, petrochemical and mining operations.
- Spark-resistant design
- Durable zinc alloy housing
- 2-jaw clutch for constant, progressive torque; compact and lightweight for a 1" industrial tool
- Maximum reverse torque of 1356 Nm (1000 ft.lbs); 3500 rpm free speed
- Weighs 5.4 kg (11.9 lb) and measures 220 mm (8.6 in); bolt size M25
- 3/8" air inlet; actual air use 19.8 l/s (42 cfm)
- Specifications
- Features
| Part Number | CP6060 ZASAK |
| Brand | Chicago Pneumatic |
| Square Drive | 1" |
| Working Torque Range | 265–880 Nm (195–650 ft.lbs) |
| Maximum Torque (Reverse) | 1356 Nm (1000 ft.lbs) |
| Free Speed | 3500 rpm |
| Bolt Size | M25 |
| Net Weight | 5.4 kg (11.9 lb) |
| Length | 220 mm (8.6 in) |
| Air Inlet Thread | 3/8" |
| Air Consumption (Actual) | 19.8 l/s (42 cfm) |
| Product Number | T024063 |
| Vibration | 14.2 m/s² |
- Super Industrial 1" impact wrench
- Reliable 2-jaw clutch
- Zinc-Aluminum body & steel clutch housing
- Durable reverse & steel trigger
- Compact 3-part construction & easy maintenance
- Hole type socket retainer with O-Ring
