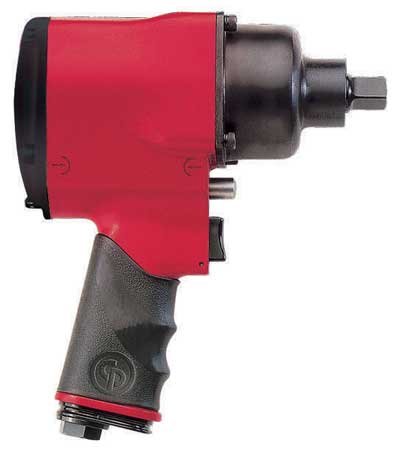

Chicago Pneumatic CP6500-RSR | Heavy-Duty Impact Wrench | 1/2" Drive, 170–680 Nm
Rated for 170–680 Nm (125–502 ft.lbs), the CP6500-RSR is a 1/2" heavy-duty impact wrench from Chicago Pneumatic. This model handles demanding maintenance and production tasks in industry.
- Rugged design for harsh environments
- 3-part construction simplifies maintenance
- Comfortable control even at high torque
- Maximum reverse torque of 850 Nm (625 ft.lbs); 6400 rpm free speed
- Weighs 2.65 kg (5.8 lb) and measures 178 mm (7 in)
- 1/4" air inlet; actual air use 11.8 l/s (25 cfm)
- Specifications
- Features
| Part Number | CP6500-RSR |
| Brand | Chicago Pneumatic |
| Square Drive | 1/2" |
| Working Torque Range | 170–680 Nm (125–502 ft.lbs) |
| Maximum Torque (Reverse) | 850 Nm (625 ft.lbs) |
| Free Speed | 6400 rpm |
| Net Weight | 2.65 kg (5.8 lb) |
| Length | 178 mm (7 in) |
| Air Inlet Thread | 1/4" |
| Air Consumption (Actual) | 11.8 l/s (25 cfm) |
| Product Number | T025216 |
| Sound Pressure | 96 dB(A) |
| Vibration | 8 m/s² |
- 1/2" industrial impact wrench with Pin-type socket retainer
- Twin hammer clutch with oil bath
- Aluminum body and steel clutch housing
- Regulator 4 settings and One-hand reverse
- Comfortable handle with rubber grip
