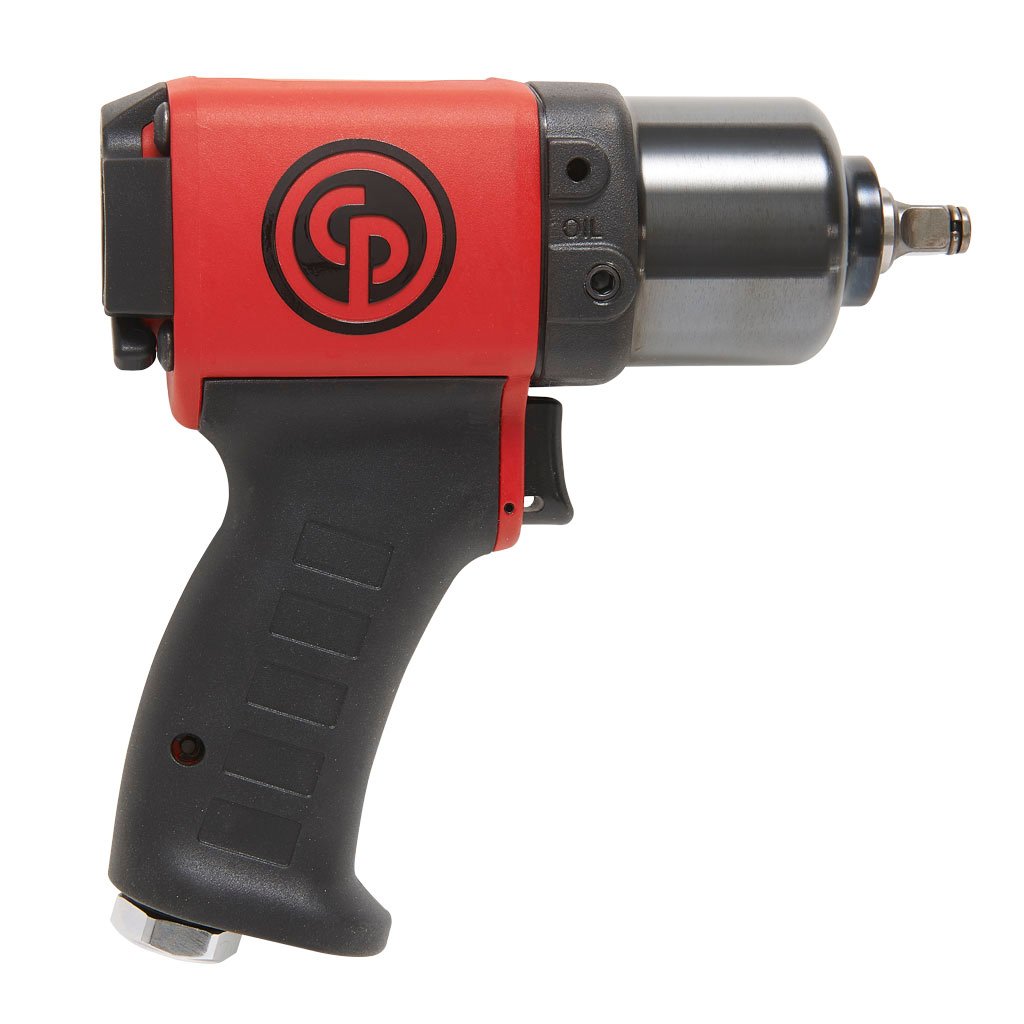

Chicago Pneumatic CP6728-P05R | Composite Impact Wrench | 3/8" Drive, 110–350 Nm
Chicago Pneumatic's CP6728-P05R composite impact wrench has a 3/8" square drive and works across 110–350 Nm (80–260 ft.lbs). Part of the premium composite range, it is designed for intensive use.
- Premium composite construction
- Comfortable and lightweight
- Maximum reverse torque: 475 Nm (350 ft.lbs); free speed 11500 rpm
- Net weight 1.7 kg (3.7 lb), length 175 mm (6.9 in)
- 1/4" air inlet with minimum hose 10 mm (3/8 in); actual air consumption 11.4 l/s (24.2 cfm)
- Sound pressure 89 dB(A), vibration 5.2 m/s²
- Specifications
- Features
| Part Number | CP6728-P05R |
| Brand | Chicago Pneumatic |
| Square Drive | 3/8" |
| Working Torque Range | 110–350 Nm (80–260 ft.lbs) |
| Maximum Torque (Reverse) | 475 Nm (350 ft.lbs) |
| Free Speed | 11500 rpm |
| Net Weight | 1.7 kg (3.7 lb) |
| Length | 175 mm (6.9 in) |
| Air Inlet Thread | 1/4" |
| Min. Hose Size | 10 mm (3/8 in) |
| Air Consumption (Actual) | 11.4 l/s (24.2 cfm) |
| Product Number | 6151590550 |
| Sound Pressure | 89 dB(A) |
| Vibration | 5.2 m/s² |
- 3/8" Industrial Impact wrench
- Twin hammer in oil bath and steel clutch housing for long life
- Extremely durable steel motor
- Robust steel clutch housing
- Ergonomic reverse and power setting
